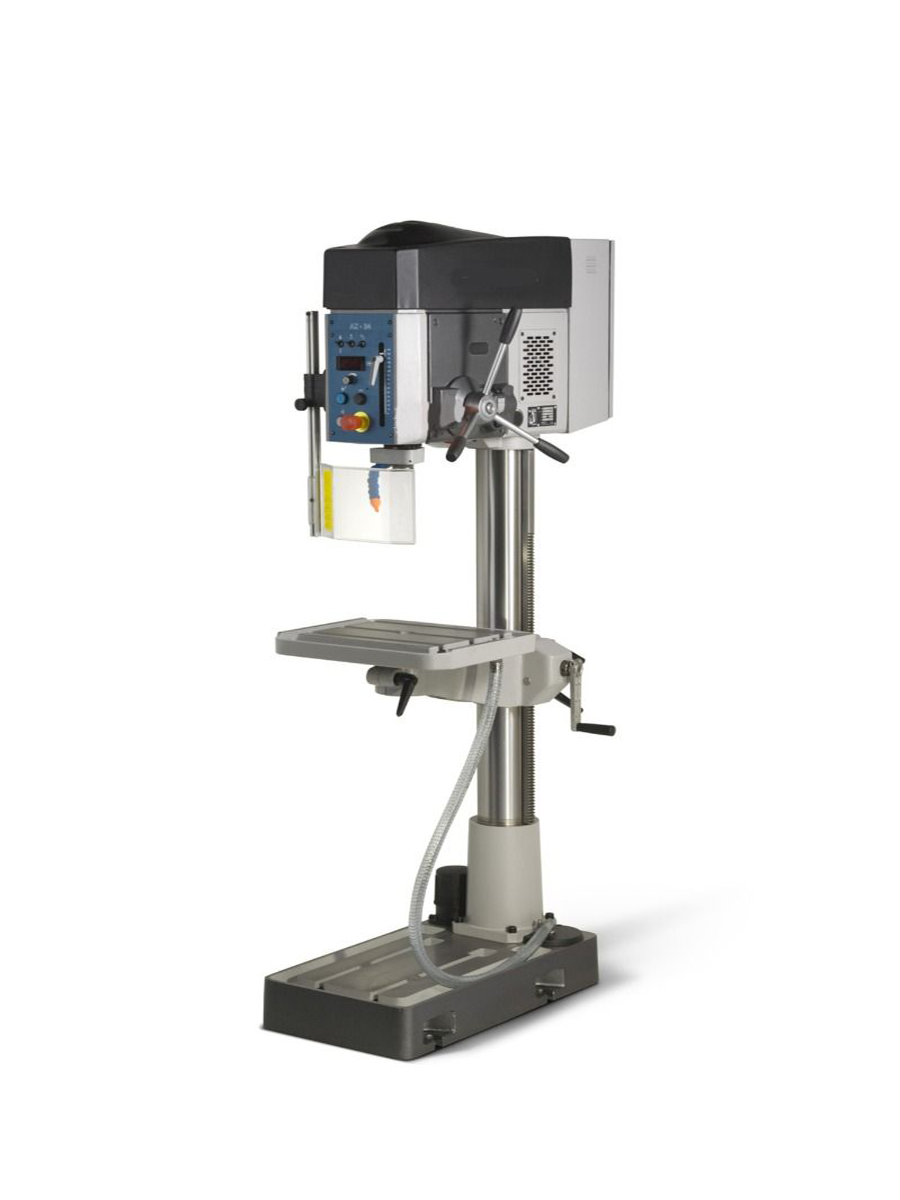

Clausing Erlo Belt-Drive 230V Three Phase 27.5” EVS Manual Quill Feed Tapping Floor Drill Press SZ40

Clausing Erlo Belt-Drive 230V Three Phase 27.5” EVS Manual Quill Feed Tapping Floor Drill Press SZ40 is a Clausing Industrial product in the Drill Presses collection.

Product Details

• Spindle taper: MT4
• Quill diameter: 2.95”
• Spindle travel (drilling depth): 6.89”
• Spindle speeds: 100-2000 rpm
• Description
• Clausing Erlo Belt Drive Drill Press with state of the art technology allows you to select the best rpm for the tool with easy to use potentiometer dial. Electronic inverter 100-2000 rpm speeds combined with 5.5HP spindle motor give excellent torque for drilling large holes, small holes to spot-face, counter-bore and ream. Manual quill feed with capacity production rated 1.57” in steel 1.77” in cast iron.
• Features
• Automatic feed reversing system for tapping
• Machine base with 2 T-slots, coolant tank and pump
• Rotating and tilting table
• Large worktable with 3 T-slots
• Feed crank wheel for manual feed
• Depth scale and adjustable depth stop
• Automatic tool ejector
• Spindle reversing switch
• Work light
• Coolant system in base
• Built-in low voltage electrical equipment in machine head
• Emergency stop
• Drill guard with micro switch
• Manual quill feed system
• Capacities
• Drilling Steel: 1.57” Cast iron: 1.77”
• Steel: 1.57”
• Cast iron: 1.77”
• Tapping Steel: 1.375” Cast iron: 1.5”
• Steel: 1.375”
• Cast iron: 1.5”
• Specifications
• Spindle center to column: 13.77”
• Base to spindle: 48.4”
• Spindle to table (min/max): 1.97” / 27.2”
• Worktable dims: 18.89” x 18.89”
• Column diameter: 5.90”
• Main motor power: 5.5HP 1800 rpm
• Coolant pump motor: 0.1HP
• Electrical Requirements: 230V Three Phase
• Machine Dims: 32” x 19” x 77”
• Approx Weight: 979 lbs
• Optional Add-Ons
• Other voltages available (please contact a sales rep for more info)
• Pneumatic counter balance (CN-Z)
• 7.8” column riser (SC-Z)
• Digital readout scale (LBC-Z)
• Integral tube drill cycle profile & intermittent (CI-Z)
• Motorized table w/rotating support (MASG-Z)
• Cross slide tables, various sizes
• Cycle start foot pedal (PST)

Specifications

• Manufacturer: Clausing Industrial
• SKU: SZ40
• Shipping Method: LTL Freight
• Weight: 1,089 lb
• Dimensions: 91 × 24 × 44 in
