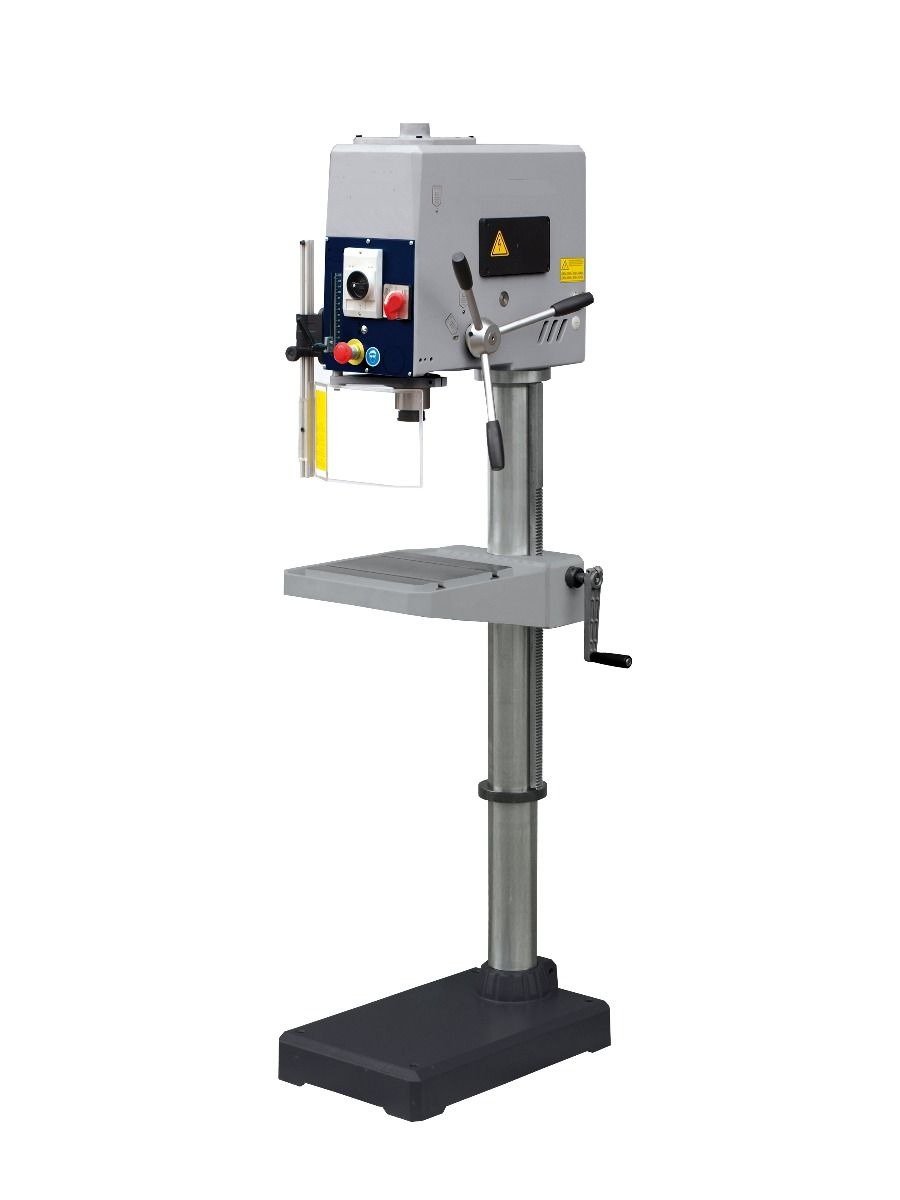

Clausing Erlo Belt-Drive 230V Three Phase 25.2” Electric Variable-Speed Round-Column Floor Drill Press with Auto Reverse Tapping KL25EVRS

Clausing Erlo Belt-Drive 230V Three Phase 25.2” Electric Variable-Speed Round-Column Floor Drill Press with Auto Reverse Tapping KL25EVRS is a Clausing Industrial product in the Drill Presses collection.

Product Details

• Spindle taper: 3MT
• Quill diameter: 2.44”
• Spindle travel (drilling depth): 4.72”
• Electronic variable speed drive (5 speed): 120 to 6000 rpm
• Description
• Clausing Erlo Belt Drive Drill Press with state of the art technology allows you to select the best rpm for the tool with easy to use potentiometer dial. Electronic inverter 120 – 6000 rpm for drilling large holes, small holes to spot-face, counter-bore, and ream. The variable speed drives delivers torque for capacity production rated 1” in steel and 1.18” in cast iron. The EVRS model adds the automatic tapping feature to this drill press. By setting a limit stop once the quill reaches this the spindle will automatically reverse.
• Features
• EVRS models are equipped with electric variable speed and automatic feed reversing system for tapping
• Depth scale and adjustable depth stop
• Thermomagnetic switch
• Spindle reversing switch
• Automatic tool ejector
• Emergency STOP
• Drill guard with interlock
• Work light
• Capacities
• Drilling capacity in steel: 1” max
• Drilling capacity in cast iron: 1.18” max
• Tapping capacity in steel: 0.75” max
• Tapping capacity in cast iron: 0.87” max
• Specifications
• Electronic variable speed drive (5 speed): 120 to 6000 rpm (A) 120-760 rpm (B) 170-1100 rpm (C) 400-2580 rpm (D) 600-3800 rpm (E) 950-6000 rpm
• (A) 120-760 rpm (B) 170-1100 rpm (C) 400-2580 rpm (D) 600-3800 rpm (E) 950-6000 rpm
• Column diameter: 3.94”
• Spindle to table (min/max): 4.13” / 25.2”
• Spindle center to column: 9.84”
• Main motor: 2HP
• Electrical Requirements: 230V Three Phase
• Machine Dims: 24” x 15” x 70”
• Approx Weight: 572 lbs
• Optional Add-Ons
• 460V Three Phase unit available (please contact a sales rep for more info)
• Rotating table (MG-K)
• Front wheel for fine quill feed (VWH-K)
• Depth scale read-out system (LBC-K)
• Auto spdl rev for tapping multi head (RSV-K)
• Auto thread system by master spdl (RHP-K)
• Hydro-pneumatic power feed unit (HB-K)
• Coolant system in base (ERB-K)
• Cross table (MB-1)
• Oversize base tables, various types
• 3/16” to ¾” drill chuck with key (1897)
• 3JT to 3MT arbor (1898)
• Emergency stop foot pedal (PPE)
• Cycle start foot pedal (PST)
• Foot pedal for reversing (PSR)

Specifications

• Manufacturer: Clausing Industrial
• SKU: KL25EVRS
• Shipping Method: LTL Freight
• Weight: 715 lb
• Dimensions: 32 × 23 × 83 in
