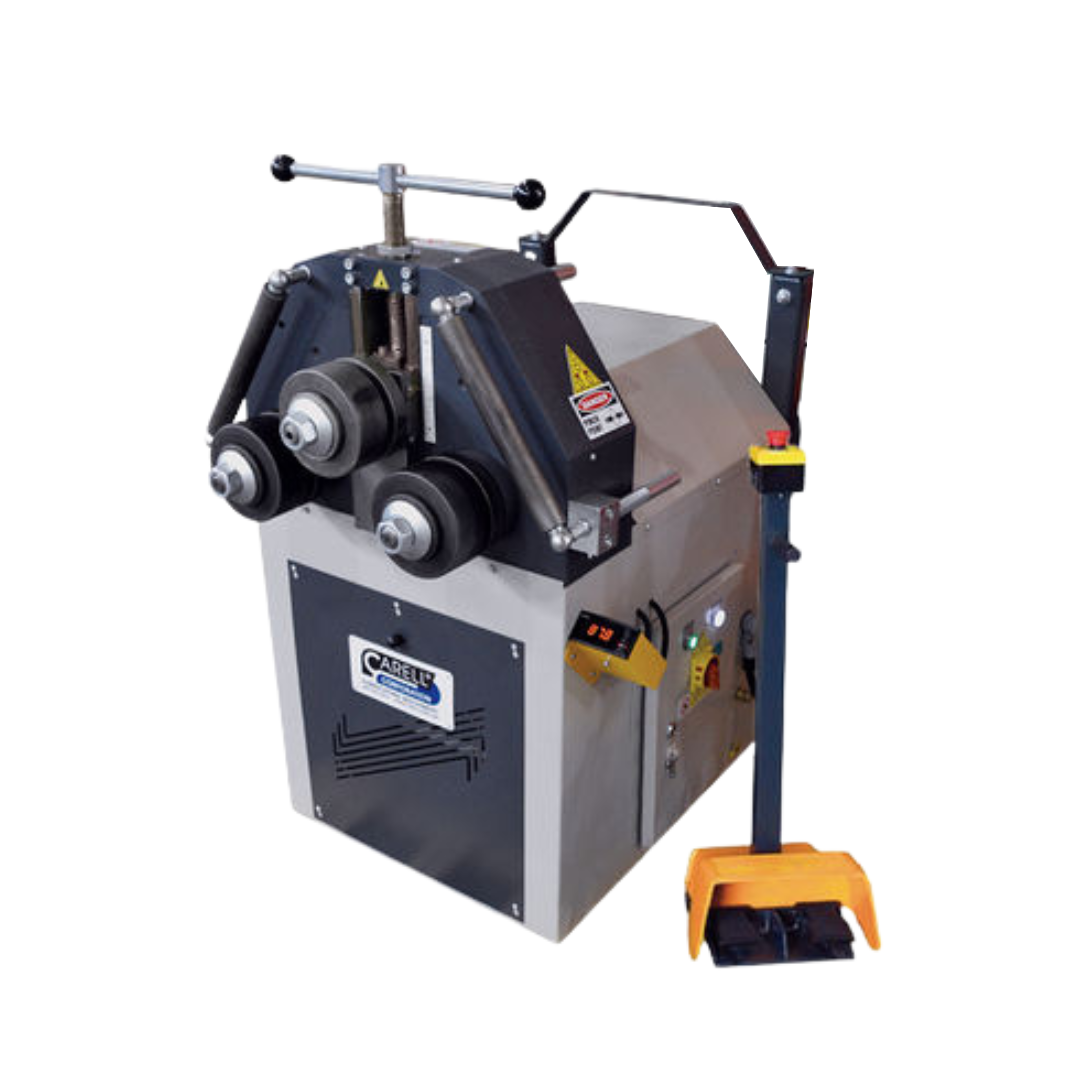

Carell Industrial PK-35 220V Three Phase 2” Pipe 3-Roll Pyramid-Type Manual Universal Roll Bender PK35

Carell Industrial PK-35 220V Three Phase 2” Pipe 3-Roll Pyramid-Type Manual Universal Roll Bender PK35 is a Carell Industrial Solutions product in the Roll Benders collection.

Product Details

• Shaft OD: 1.97”
• Roll OD: 6.1”
• Speed: 14 fpm
• Working Height: 36”
• Description
• The new Carell PK-35 three roll, 2” shafts pyramid style, universal roll bender is a new design concept with a straight forward simplified yet powerful drive train for lower maintenance and a more streamline frame and base. These innovations are driven by the demand for an economical and simple yet durable ring roller for small shops where throughput is not high and budget is a driving factor. The PK35 is equipped with a universal tooling roll set, horizontal/vertical working plane, manual top roll adjust, foot pedal rotation controls, lower 2 shaft motorized in rotation and a professional electrical switchgear cabinet all packaged in a compact and economical design for small shops who are looking for a low initial investment and a durable rolling machine. An LED Readout for repeat positioning reference is standard.
• Units are standard with an 18 component universal roll set for flats, round & square bar, T’s, C’s, square & rectangular tube and more! Round tube or pipe rolls, angle, cap rail, twisting, scrolling, wide flats, tight diameter, and custom tooling are available on request as additional add-ons.
• Features
• Rugged solid steel frame, CNC machined
• Moving components solid steel
• Shafts of high strength tool steel, journaled in dual roller bearings
• Forming roll moves on hardened guides & ways w/manual adjustment
• Lateral material guides are adjustable in thrust to avoid twist of some shapes
• Universal modular rolls hardened w/18 pieces to roll most standard shapes
• Lower rolls driven in rotation and are knurled for traction on heavier profiles
• Electrical cabinet side mounted for easy access and NEMA type for safety
• The foot pedals on detachable lead w/Emergency Stop Palm Arrest button
• Controls in low voltage 24 VAC w/magnetic motor overload protection
• Specifications
• Adjustment: Manual
• Shaft OD: 1.97” (50mm)
• Footprint: 26” x 32”
• Drive Rolls: 2 lower
• Repeat: LED Readout
• Electrical Requirements: 220V Three Phase 60Hz 2.0HP
• Machine Dims: 26” x 32” x 39”
• Approx Weight: 880 lbs
• Capacities
• Flat bar on edge (hard way) Max Size: 2¼” x 3/8” Min ID: Ø20”
• Max Size: 2¼” x 3/8”
• Min ID: Ø20”
• Flat bar on edge (hard way) Max Size: 1½” x 3/8” Min ID: Ø16”
• Max Size: 1½” x 3/8”
• Min ID: Ø16”
• Flat bar (easy way) Max Size: 4” x ½” Min ID: Ø18”
• Max Size: 4” x ½”
• Min ID: Ø18”
• Square bar Max Size: 1-3/8” Min ID: Ø36”
• Max Size: 1-3/8”
• Min ID: Ø36”
• Round bar Max Size: 1-3/8” Min ID: Ø25”
• Min ID: Ø25”
• Angle leg-out Max Size: 2” x 2” x 3/16” Min ID: Ø32”
• Max Size: 2” x 2” x 3/16”
• Min ID: Ø32”
• Angle leg-in Max Size: 2” x 2” x 3/16” Min ID: Ø40”
• Min ID: Ø40”
• Square tube Max Size: 2” x 11Ga Min ID: Ø68”
• Max Size: 2” x 11Ga
• Min ID: Ø68”
• Rectangular tube (hard way) Max Size: 2½” x 1-3/16” x 11Ga Min ID: Ø48”
• Max Size: 2½” x 1-3/16” x 11Ga
• Min ID: Ø48”
• Round tube Max Size: 2¾” x 0.078” Min ID: Ø40”
• Max Size: 2¾” x 0.078”
• Round pipe, Sch 10 Max Size: 2” Min ID: Ø40”
• Max Size: 2”
• T sections leg-out-in-lateral Max Size: 2-3/8” x ¼” Min ID: Ø32”
• Max Size: 2-3/8” x ¼”
• C sections legs-out-in Max Size: 3” x 1” Min ID: Ø48”
• Max Size: 3” x 1”
• Optional Add-Ons
• Tube roll sets
• Pipe roll sets
• Rolls w/conical contour & gap setting for angle rolling leg in/out
• Lateral guides for angle leg-in with adjustable cam roller
• “V” groove rolls (set with diamond throat)
• Tight diameter rolls to use with bar stock for tight diameter rings
• Wide flat rolls, 7” x 1/8” max capacity with 6” roller surface
• Cap rail rolls “Solution A” Delrin fully contoured roll inserts
• Set 6 steel backer flanges for “Solution A” Delrin inserts
• Cap rail inserts “Solution B” (semi-contoured core spacers)
• Cap rail rolls “Solution C” (fully contoured, required for 2” + caps)
• Bar twisting device (standard type) with chuck and clamp
• Scrolling device, quick 2 stage (standard type)

Specifications

• Manufacturer: Carell Industrial Solutions
• SKU: PK35
• Shipping Method: LTL Freight
• Weight: 960 lb
• Dimensions: 30 × 36 × 60 in
