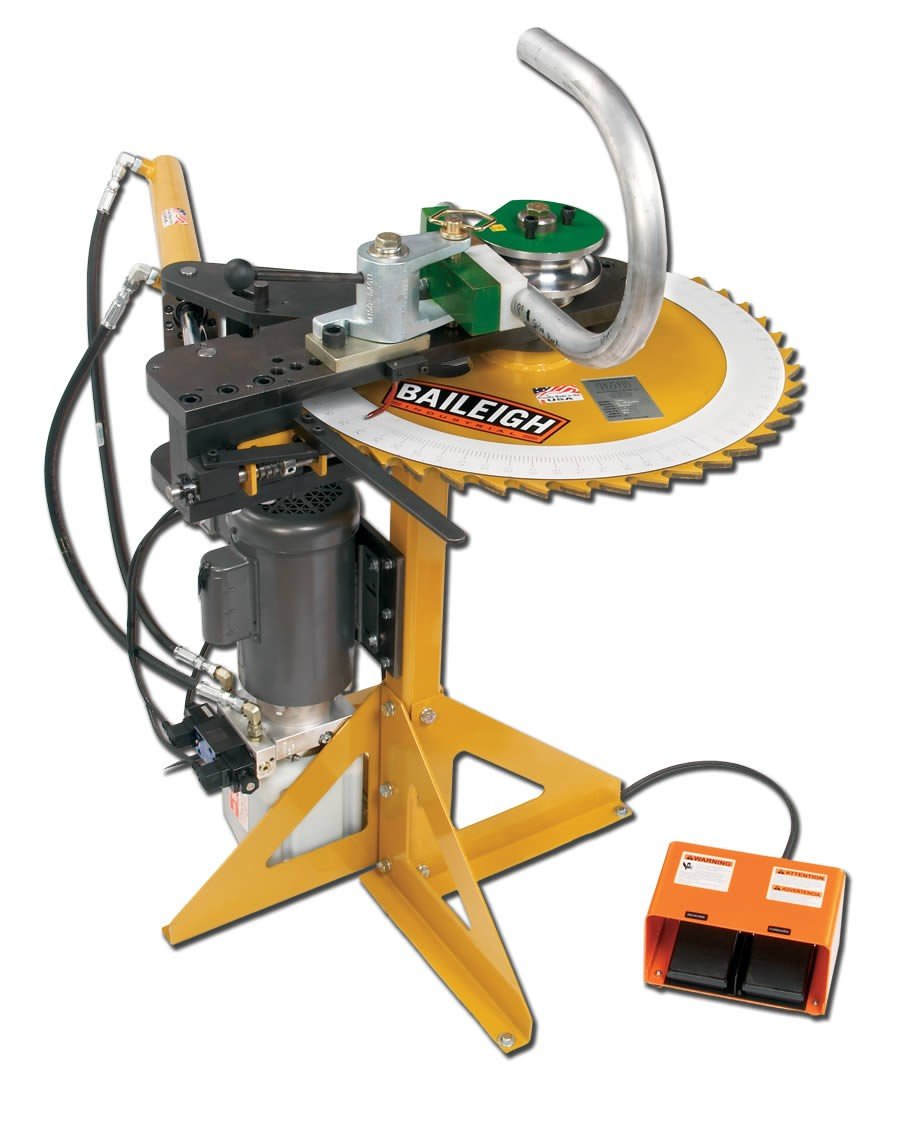

Baileigh RDB-125 Rotary Draw Bender

Baileigh RDB-125 Rotary Draw Bender is a Baileigh Industrial product in the Tube & Pipe Benders collection.

Product Details

• Low Pressure Industrial Grade Hydraulic System
• Industrial Drop On Die Sets For Fast Tooling Changes
• Anti-Spring Back Mechanism
• Foot Pedal Operation
• Have a manual bender and want to step up to a hydraulic unit to increase productivity and relieve strain on your body, well the RDB-125 rotary draw bender is just what the doctor ordered. This hydraulic bender is designed to work with all Baileigh Industrial “drop on" tool sets and constructed of only the best materials.
• The RDB-125 operates much like the machine it was based from, the RDB-100, but it incorporates a hydraulic system to turn the ratchet plate and do the actual bending. Requiring only 110 volts to power it, this pipe bender uses powerful low pressure industrial grade hydraulics making it quiet, quick, and very safe to use even when bending at full capacity. The RDB-125 has a capacity of 2-1/2" OD tubing, 2" OD Chromalloy, 2" square tubing, and 2" schedule 40 pipe. The RDB-125 has a maximum center line of 8" depending on the outside diameter of the material being bent.
• The RDB-125 will bend to 200 degrees allowing for true 180 degree bends without having to repin the die set and it only takes 4 complete pushes to reach 180 degrees. Utilizing its built in anti-spring back mechanism, the RDB-125 can retract its hydraulic cylinder without worry of losing its place in the bend. Just retract and push again, simple and easy. A quick release counter die positioner is also included to make material loading and unloading a breeze.
• ****Baileigh RDB-125 does not include any bender dies****
• RDB-125 Specifications
• Minimum CLR: .5"
• Minimum OD: .25"
• Mild Steel Solid Rod: 1.25"
• Mild Steel Pipe Schedule 40: 2"
• Mild Steel Round Tube Wall: 2.5" (.125)
• Mild Steel Square Tube Wall: 2" (.125)
• Stainless Steel Pipe Schedule 40: 1.5"
• Stainless Steel Round Tube Wall: 2.375" (.125)
• Chromolly Round Tube Wall: 2.5" (.125)
• Aluminum Round Tube Wall: 2.5" (.126)
• Maximum Center Line Radious CLR: 10.5"
• Power: 110Volt
• Shippign Weight: 546lbs
• Shipping Dimensions: 42x22x42

Specifications

• Manufacturer: Baileigh Industrial
• SKU: BA9-RDB125
• UPC: 19907415565
• Shipping Method: LTL Freight
• Weight: 590 lb
• Dimensions: 60 × 44 × 77 in
• Country of Origin: United States of America
