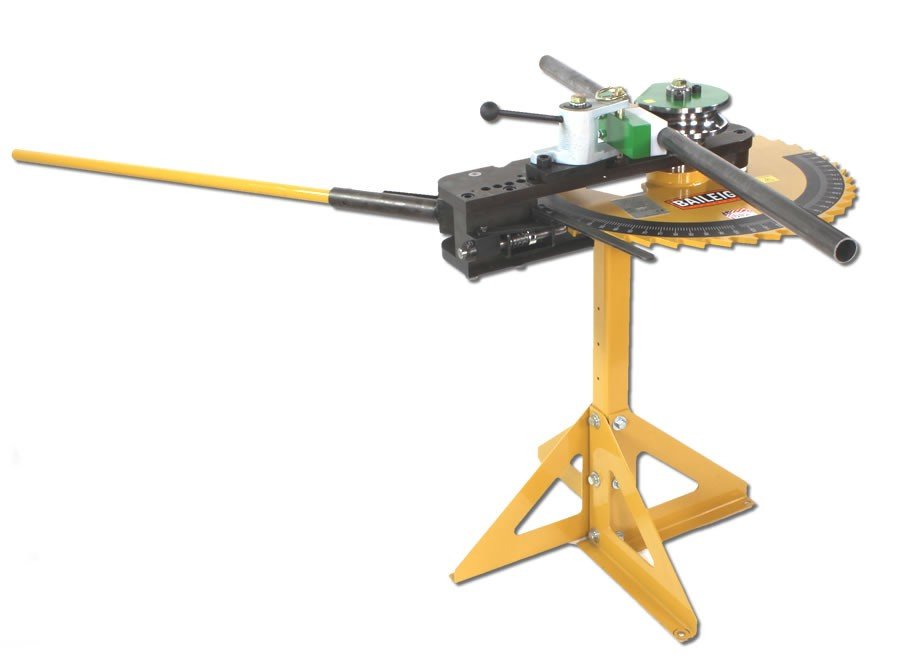

Baileigh RDB-100 Rotary Draw Bender

Baileigh RDB-100 Rotary Draw Bender is a Baileigh Industrial product in the Tube & Pipe Benders collection.

Product Details

• Two Speeds
• 180 Degree One-Shot Bending For Lighter Materials
• Integrated Degree Dial With Bend Indicator Included
• Infinite Tooling Possibilities
• Description
• Looking for a top quality manual tubing bender to help out with production in your shop? The RDB-100 from Baileigh Industrial is perfect for the industrial fabricator that needs to bend lower production runs with very professional looking bends. Constructed of steel plate the RDB-100 tubing bender ships mostly assembled with only the handle and stand needing to be attached. Like all top loading tube benders from Baileigh Industrial, the RDB-100 was made to accept hundreds of round and square tubing die sets as well as round pipe dies sets. The RDB-100 is capable of bending up to 1-3/4" OD tubing with a maximum wall thickness of .095" and 1" schedule 40 pipe.
• The RDB-100 manual tubing bender from Baileigh Industrial uses a large diameter indexing plate that allows the operator to bend up to 206 degrees (180 degrees plus spring back) without having to re-index and re-pin common on most other manual tube benders on the market. A tension spring back mechanism holds the position as the bend mechanism grabs the next tooth on the index wheel. When requirements are for lighter gauge materials the RDB-100 ratcheting bend system can be shut off and the handle can be put into a manual override housing that allows the operator to simply walk around the manual bender and bend without the power of the indexing unit.
• The RDB-100 includes the stand, degree dial, and handle. A large degree scale displays your bend angle and all the tooling has a start of bend indicator line so complex bends can be made with ease. A quick release counter die system allows for quick loading and unloading of the material.
• ****RDB-100 does not include any bender dies****
• Minimum CLR: .5"
• Minimum OD: .25"
• Mild Steel Solid Rod: 1"
• Mild Steel Pipe Schedule 40: 1"
• Mild Steel Round Tube Wall: 1.75" (.083)
• Mild Steel Square Tube (Wall): 1" (.125)
• Stainless Steel Pipe Schedule 40: .75"
• Stainless Steel Round Tube Wall: 1.5" (.083)
• Chromolly Round Tube Wall: 1.5" (.083)
• Aluminum Round Tube Wall: 2" (.125)
• Maximum Center Line Radius Clr: 10.5"
• Power: Manual
• Shipping Weight: 290lbs
• Shipping Dimensions: 42"x22"x42"

Specifications

• Manufacturer: Baileigh Industrial
• SKU: BA9-RDB100
• UPC: 19907415558
• Shipping Method: LTL Freight
• Weight: 410 lb
• Dimensions: 48 × 45 × 26 in
• Country of Origin: United States of America
