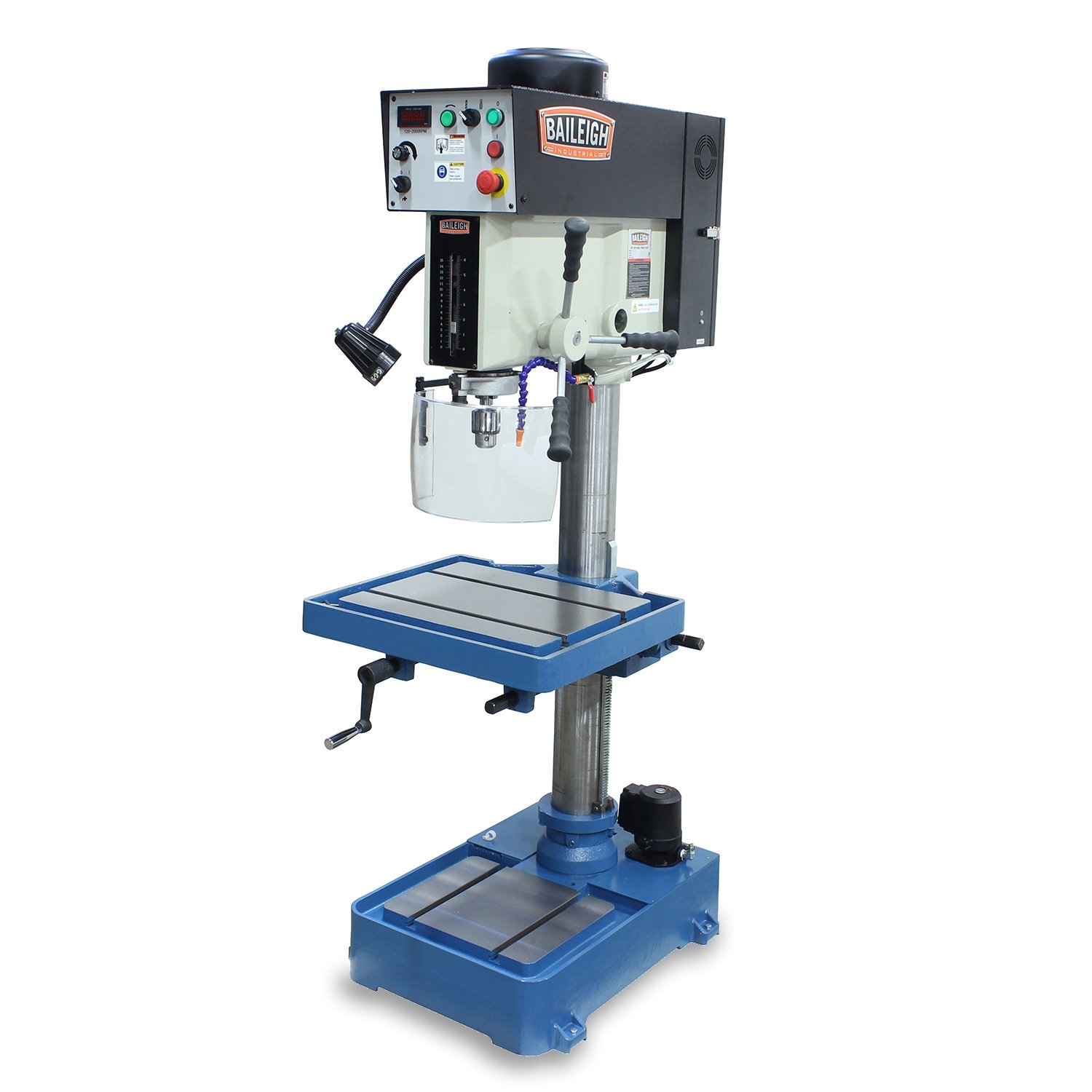

Baileigh Industrial 2HP 110V Single Phase Variable Speed Drill Press DP-1375VS-110 1227902

Baileigh Industrial 2HP 110V Single Phase Variable Speed Drill Press DP-1375VS-110 1227902 is a Baileigh Industrial product in the Drill Presses collection.

Product Details

• Spindle Speeds: Inverter Driven Variable
• Max. Drill Capacity: 1
• Tapping Capacity: 5/8"
• Drill Capacity Cast Iron: 1-1/16"
• Description
• Sometimes you just need a high quality metalworking drill press in an area that doesn’t have easy access to 220V power. That's where the Baileigh DP-1375VS-110 comes in. Like all of Baileigh’s drill presses, the DP-1375VS-110 is built to last for years because it draws strength from its sturdy base and column that won’t flinch during the heaviest drilling sessions. With a 22” swing, this variable-speed drill press will prove an ideal investment for any machinist or fabricator.
• Features
• 2 hp motor runs on just 110 volt power.
• Tackles a maximum drilling capacity of 1.1/16” mild steel.

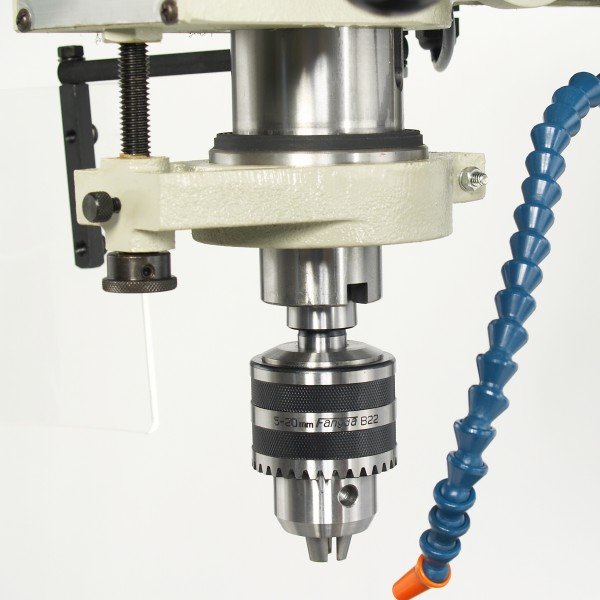

• Heavy duty spindle transfers power to the #3 Morse taper tooling.
• Speed potentiometer dial controls powerful inverter-driven head.
• Variable drilling speed, ranging from 120 to 2000 rpm, lets you choose the right setting to suit your application.
• Digital readout displays actual spindle rpm, ensuring precise results time after time.
• Features an auto-reversing tap function with up to 5/8” capacity.
• 4-1/2" Wide column provides extra support and rigidity to reduce flexing even during the toughest drilling sessions.
• Base and 22” x 18.5” table are made of a heavy iron casting to increase rigidity.
• Very large 0.625" T-slots let a vise or fixture securely hold your material.

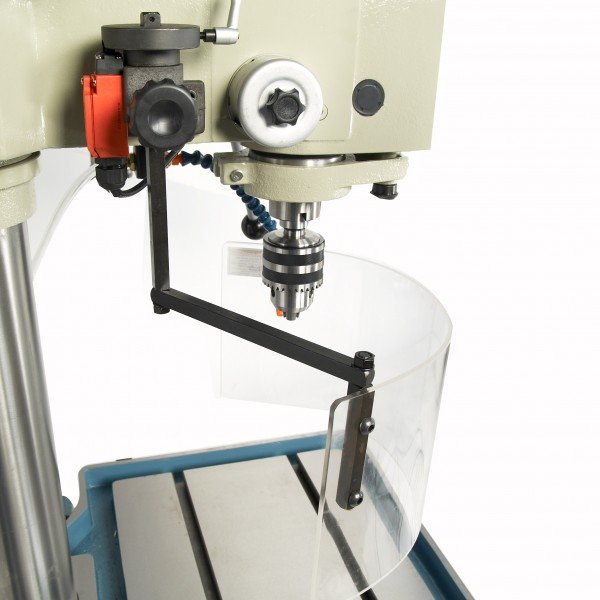

• Coolant system, stored in the base, sprays out at the end of the spindle behind the splash and safety guard to extend drill bit and tap lifespan.
• Covered by a 1-year parts warranty and lifetime technical support by phone from Baileigh’s team of experienced reps.
• Need it soon? Baileigh typically keeps the DP-1375VS-110 in stock for quick shipments.
• Specifications
• Item Number: DP-1375VS-110
• Swing: 20.8"
• Spindle Travel: 5.9"
• Base Size: 27" x 19"
• Table Size: 22" x 18.75"
• Coolant System: Yes
• Spindle Nose to Table: 33.5"
• Spindle Nose to Base: 46.875"
• Spindle Speed: 120 – 2000 rpm
• Spindle Taper: MT 3
• Table Slot: 0.625"
• Table Load Capacity: 154 lbs.
• Main Motor: 2 hp
• Motor Coolant: 1/8 hp
• Drill Capacity Steel: 1-1/4"
• Power: 110 Volt
• Shipping Weight: 579 lbs.
• Drill Capacity: 1.25"
• Column Diameter: 4.52"
• Shipping Dimensions (Inches): 60” x 44” x 79”

Specifications

• Manufacturer: Baileigh Industrial
• SKU: BA9-1227902
• UPC: 19907674092
• Shipping Method: LTL Freight
• Weight: 735 lb
• Dimensions: 60 × 44 × 79 in
• Country of Origin: Taiwan
• Warranty: 1 Year (Parts)
