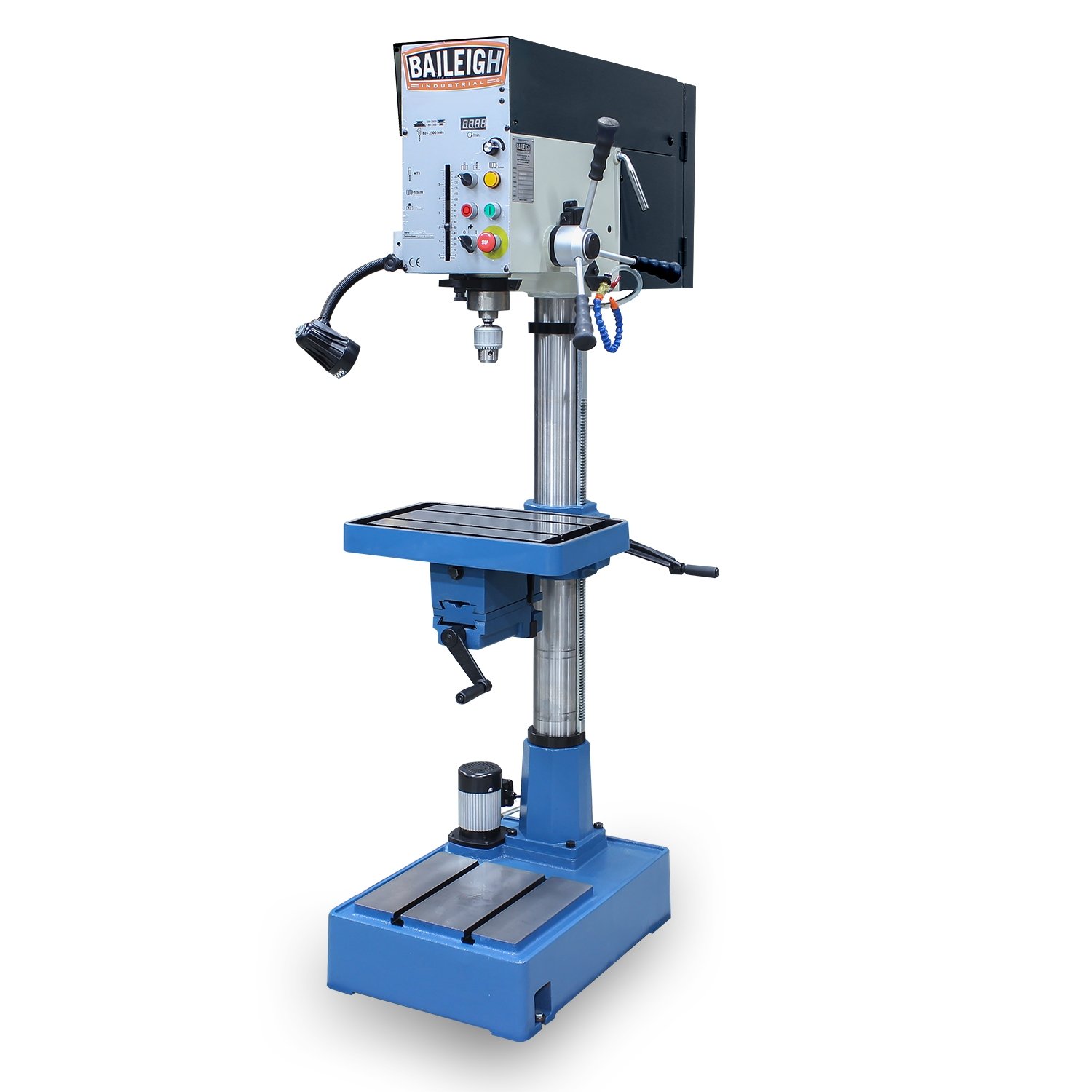

Baileigh Industrial 2HP 220V Single Phase Variable Speed Drill Press DP-1400VS 1022511

Baileigh Industrial 2HP 220V Single Phase Variable Speed Drill Press DP-1400VS 1022511 is a Baileigh Industrial product in the Drill Presses collection.

Product Details

• Spindle Travel: 5.9"
• Quill Diameter: 2.44”
• Tapping Capacity: 5/8"
• Drill Capacity: 1.25"
• Description
• Built using the finest components, the DP-1400VS floor drill press draws strength from its sturdy base and column that won’t flinch during the heaviest drilling sessions. With a unique table that pivots 360 degrees, this variable-speed drill press will prove an ideal investment for any machinist or fabricator.
• Features
• 2 hp motor runs on just 220 volts of single-phase power.
• Tackles a maximum drilling capacity of 1.25” mild steel.
• Heavy duty spindle transfers power to the #3 Morse taper tooling.
• Speed potentiometer dial controls powerful inverter-driven head.
• Variable drilling speed, ranging from 80 to 2500 rpm, lets you choose the right setting to suit your application.
• Digital readout displays actual spindle rpm, ensuring precise results time after time.
• Features an auto-reversing tap function with up to 0.625” capacity.
• Wide column provides extra support and rigidity to reduce flexing even during the toughest drilling sessions.
• Base and 25.5” x 17.75” table are made of a heavy iron casting to increase rigidity.
• Very large 0.511" T-slots let a vise or fixture securely hold your material.

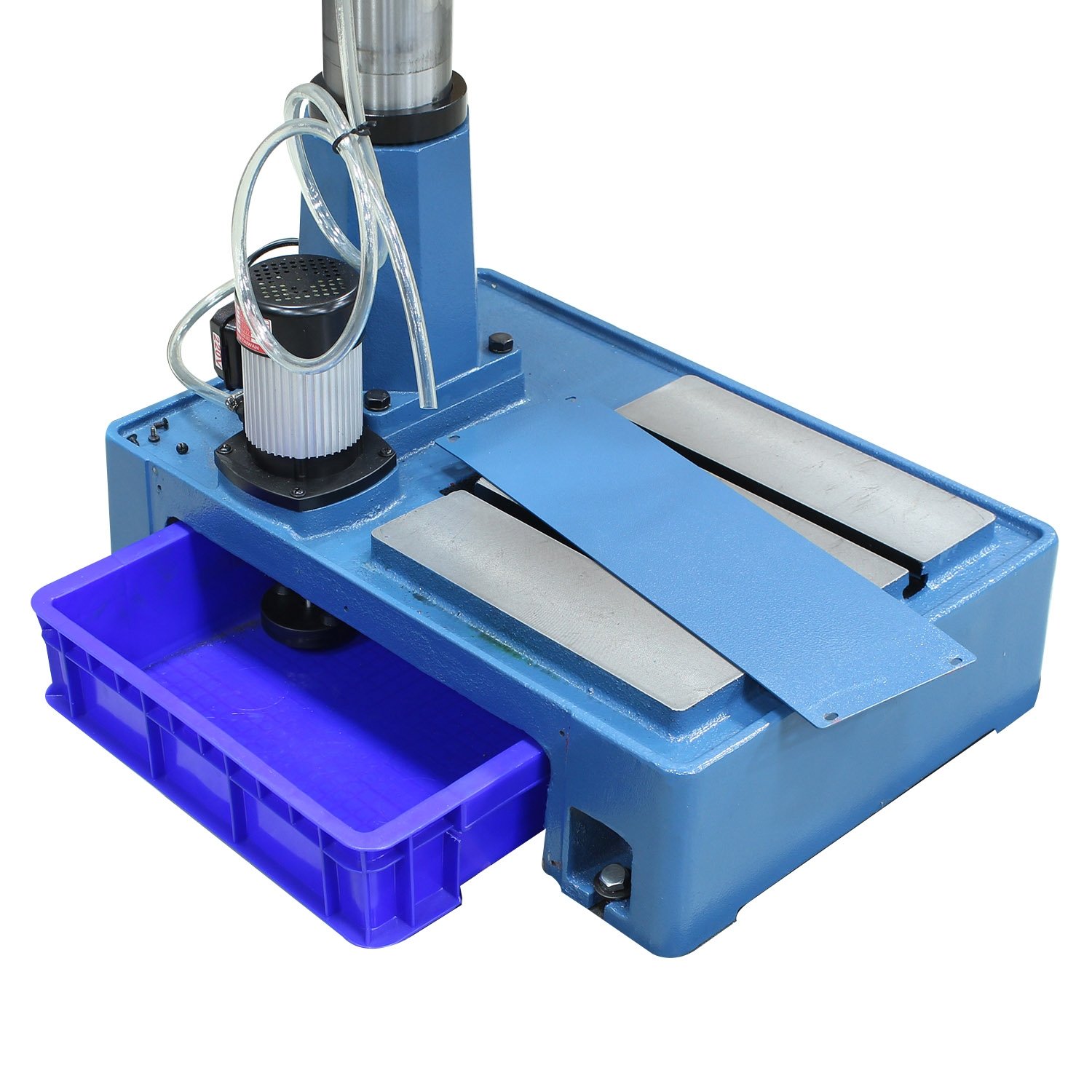

• Coolant system, stored in the base, sprays out at the end of the spindle behind the splash and safety guard to extend drill bit and tap lifespan.
• Covered by a 1-year parts warranty and lifetime technical support by phone from Baileigh’s team of experienced reps.
• Need it soon? Baileigh keeps the DP-1400VS in stock for quick shipments.
• Specifications
• Item Number: DP-1400VS
• Table Size: 18-3/4" x 12-1/4"
• Spindle Nose To Table: 28-1/2" To Base: 44-3/4"
• To Table: 28-1/2"
• To Base: 44-3/4"
• Spindle Speed High: 230 – 2500 rpm Low: 80 – 1000 rpm
• High: 230 – 2500 rpm
• Low: 80 – 1000 rpm
• Spindle Taper: MT 3
• Table Slot: 0.551"
• Table Angle Adjustment: 360°
• Main Motor: 2 hp
• Power: 220V / 1-phase
• Shipping Weight: 710 lbs.

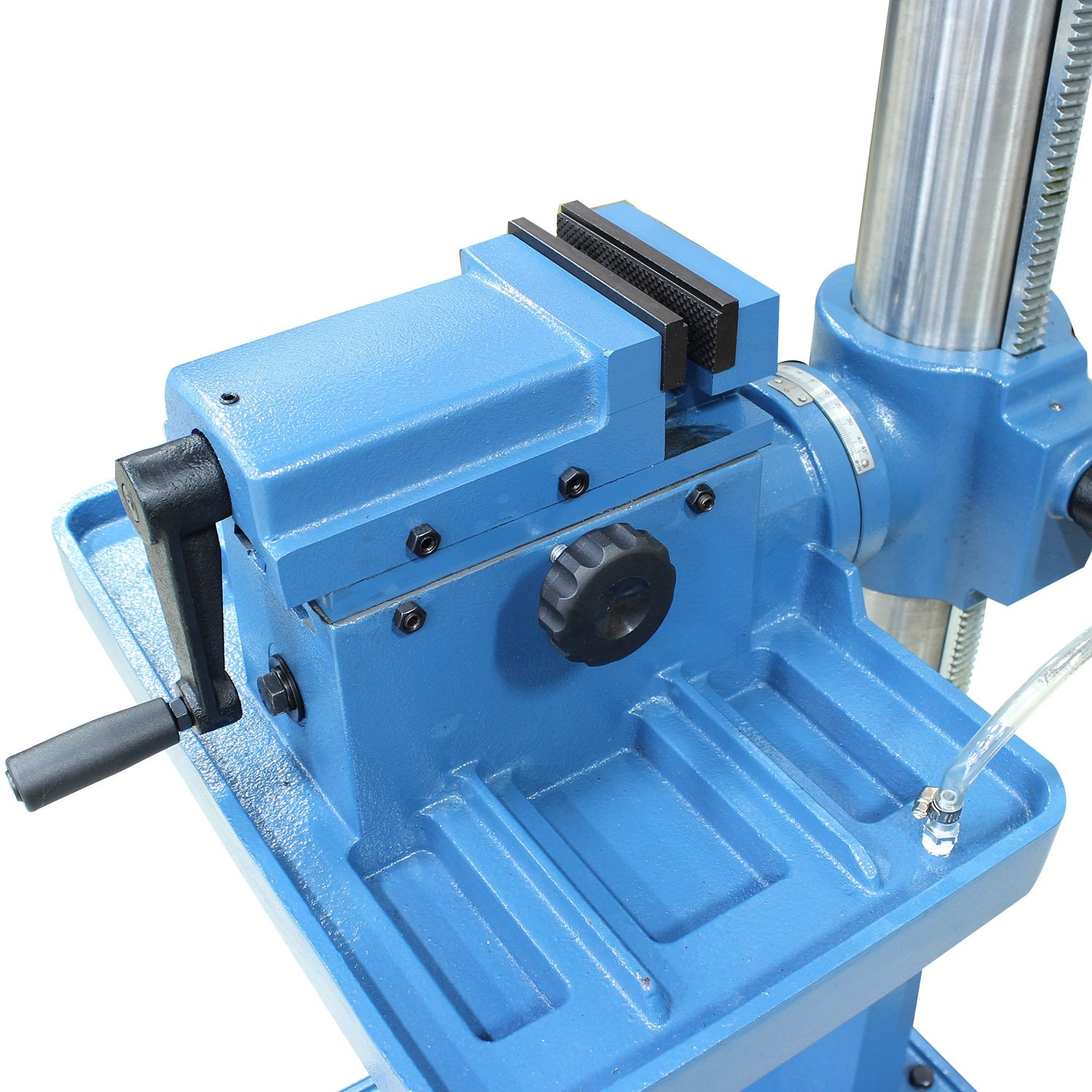

• Special Notes: Includes integrated table vise
• Swing: 18"
• Column Diameter: 4"
• Base Dimensions (L x W): 7.75" x 25.5"
• Shipping Dimensions (L x W x H): 60” x 44” x 88”

Specifications

• Manufacturer: Baileigh Industrial
• SKU: BA9-1022511
• UPC: 731325498677
• Shipping Method: LTL Freight
• Weight: 665 lb
• Dimensions: 60 × 44 × 88 in
• Country of Origin: Taiwan
• Warranty: 1 Year (Parts)
