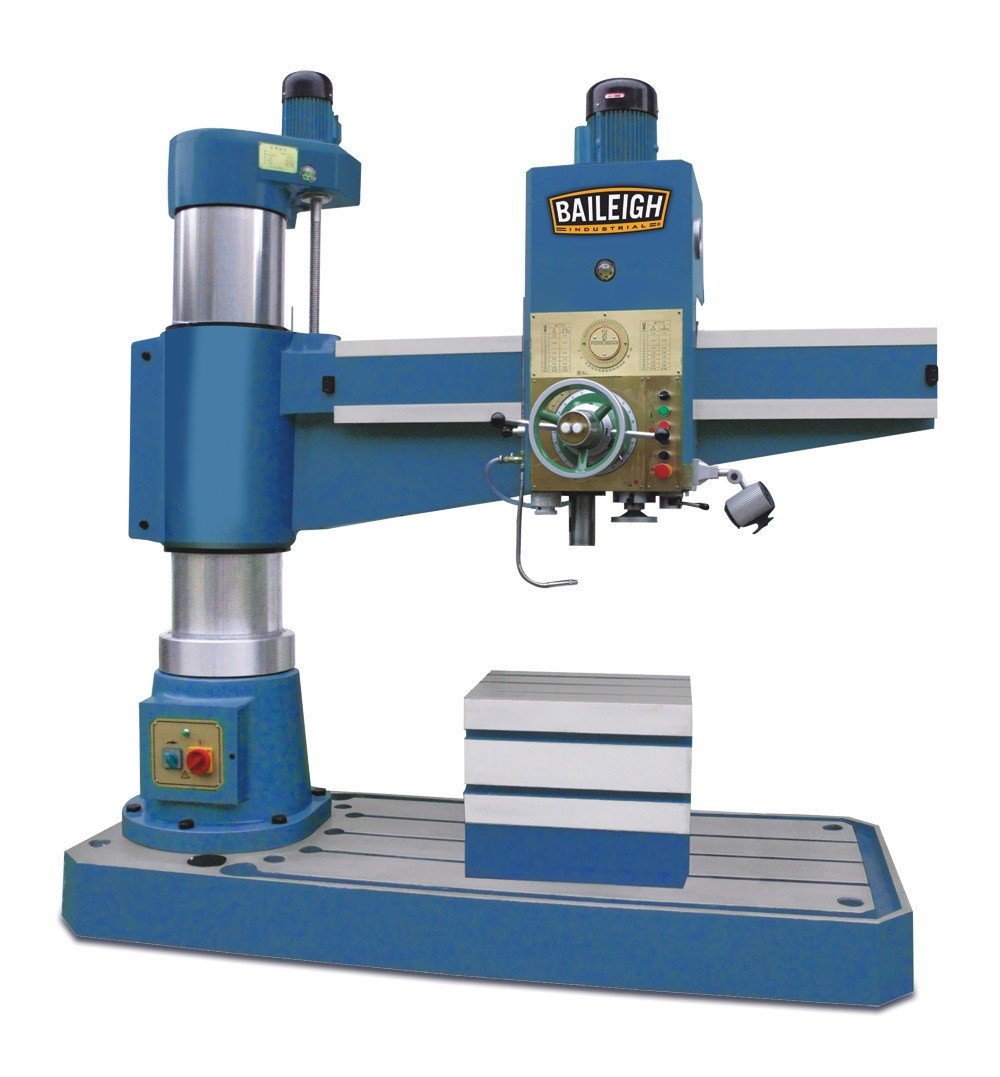

Baileigh Hydraulic Radial Drill Press RD-1600H

Baileigh Hydraulic Radial Drill Press RD-1600H is a Baileigh Industrial product in the Drill Presses collection.

Product Details

• 2" maximum drilling capacity
• Heavy duty construction
• Power down feed
• Large 63" column
• Description
• Are you in the market for a large radial drill for your fabrication shop? Does it have to have a really y large swing? Then the RD-1600H hydraulic radial drill press is for you. This press has a 5.25 hp motor that is powered by 220-volt three phase power.
• Features
• MT5 spindle
• Box shape worktable
• 220V 3-phase
• Includes spindle protection cover, quick chuck, tapping chuck, Industrial coolant system, work light, and box shaped work table.
• Specifications
• Item Number: RD-1600H
• Max. Drill Capacity: 2"
• Distance from Spindle to Column Center : 13.7" to 63"
• Diameter of Column: 13.7"
• Spindle Taper: MT5
• Spindle Travel: 12.4"
• Spindle Speed Range: 25 to 2000 rpm
• Range of Spindle Feeds: .001" to .125"
• Spindle Feeds: 16
• Distance Between Spindle Nose and Base: 12.6" to 48"
• Table Size: 24.8" x 19.6" x 19.6"
• Base Size: 94.4" x 39.3" x 7.8
• Overall Size: 98” x 40”~96” x 103”~112” Accounting for Beam Movements
• Motor: 5.25 hp
• Power: 220V 3-phase
• Shipping Weight: 9500lbs
• Shipping Dimensions (Inches): 109x45x102

Specifications

• Manufacturer: Baileigh Industrial
• SKU: BA9-1008486
• UPC: 731325420999
• Shipping Method: Flatbed
• Weight: 9,500 lb
• Dimensions: 109 × 45 × 102 in
• Country of Origin: China
