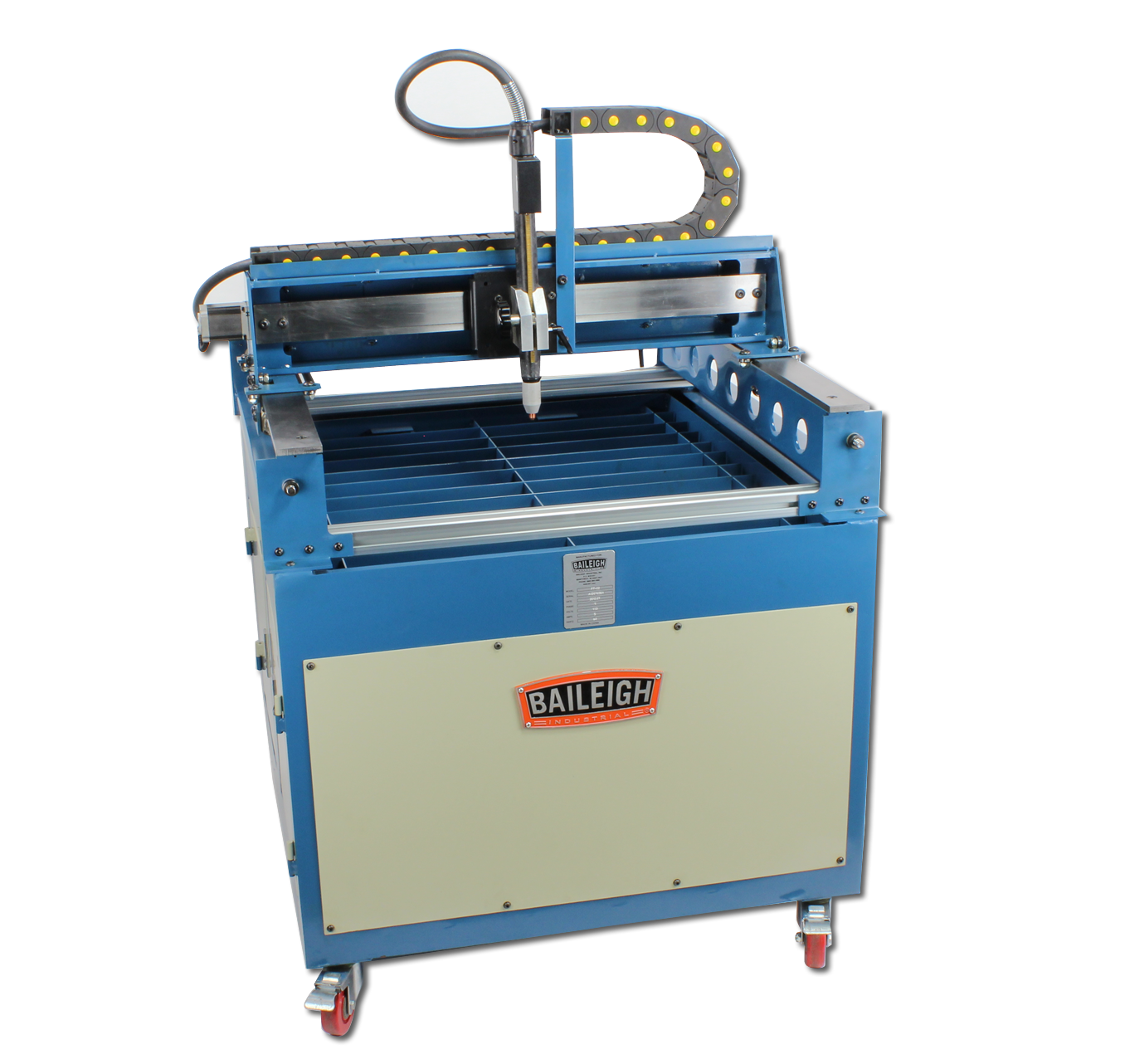

Baileigh 29″ x 31″ Plasma Table PT-22

Baileigh 29″ x 31″ Plasma Table PT-22 is a Baileigh Industrial product in the CNC Plasma Tables collection.

Product Details

• Table Dimensions 29" x 31"
• Speed Number Infinite
• Table Load Capacity 3/4" Mild Steel
• Capacity Depends on Plasma System Chosen
• Description
• With a steel frame, this CNC plasma cutting table delivers a lot of value for its price. We include features that other brands consider upgrades, like design software and a water bath.
• Runs on 110-volt power and will work at almost any fabrication site in North America.
• 2’ x 2’ (610 x 610mm) cutting area.
• Comes fully assembled with correct alignment. No need to spend hours building.
• Most other companies’ plasma tables come in 5 or 6 boxes and cost about as much to ship as Baileigh’s larger single box shipment.
• Includes user-friendly programming software (see more details below).
• You can control the torch using the handheld panel with a jog dial for the X and Y axes and program start and stop buttons.
• Durable, high-quality stepper motors drive the X axis (single drive) and Y axis (dual drive).
• All motor controllers and electronics are enclosed. No loose wires to get in your way.
• Industrial cable track on the X axis ensures smooth cutting movement.
• 2 different torch-holders to accept both automated torches and handheld torches.
• Pre-cut flat bar grates support the material.
• Fully-welded steel frame will stay square for accurate cutting. By contrast, many competitors’ aluminum tables will warp due to heat over time.
• Small footprint accommodates shops with limited space. You won’t find many competitors that make machines this compact.
• 5” caster wheels (2 stationary, 2 swiveling) let you move the table easily.
• Water bath with a ball valve drain collects dirt, debris, and smoke. It also keeps the table cool to prevent material from moving while being cut.
• Cabinet in the base with latched and hinged access doors.
• Covered by a 1-year parts warranty.
• Lifetime technical support by phone means that you can always count on troubleshooting and advice from an experienced Baileigh rep.
• 550 lbs. shipping weight.
• Plasma torch systems sold separately. We’ll let you choose the automatic or manual Thermal Dynamics Cutmaster model that works best for your application.
• BOBCAD-CAM EXPRESS DESIGN SOFTWARE (INCLUDED)
• Specifications
• Drive Stepper Motor
• Power 110V
• Shipping Weight 550 lbs.
• Software BobCAD Cam
• Shipping Dimensions 36" x 36" x 48"

Specifications

• Manufacturer: Baileigh Industrial
• SKU: BA9-1006637
• UPC: 731325411270
• Shipping Method: LTL Freight
• Weight: 580 lb
• Country of Origin: China
