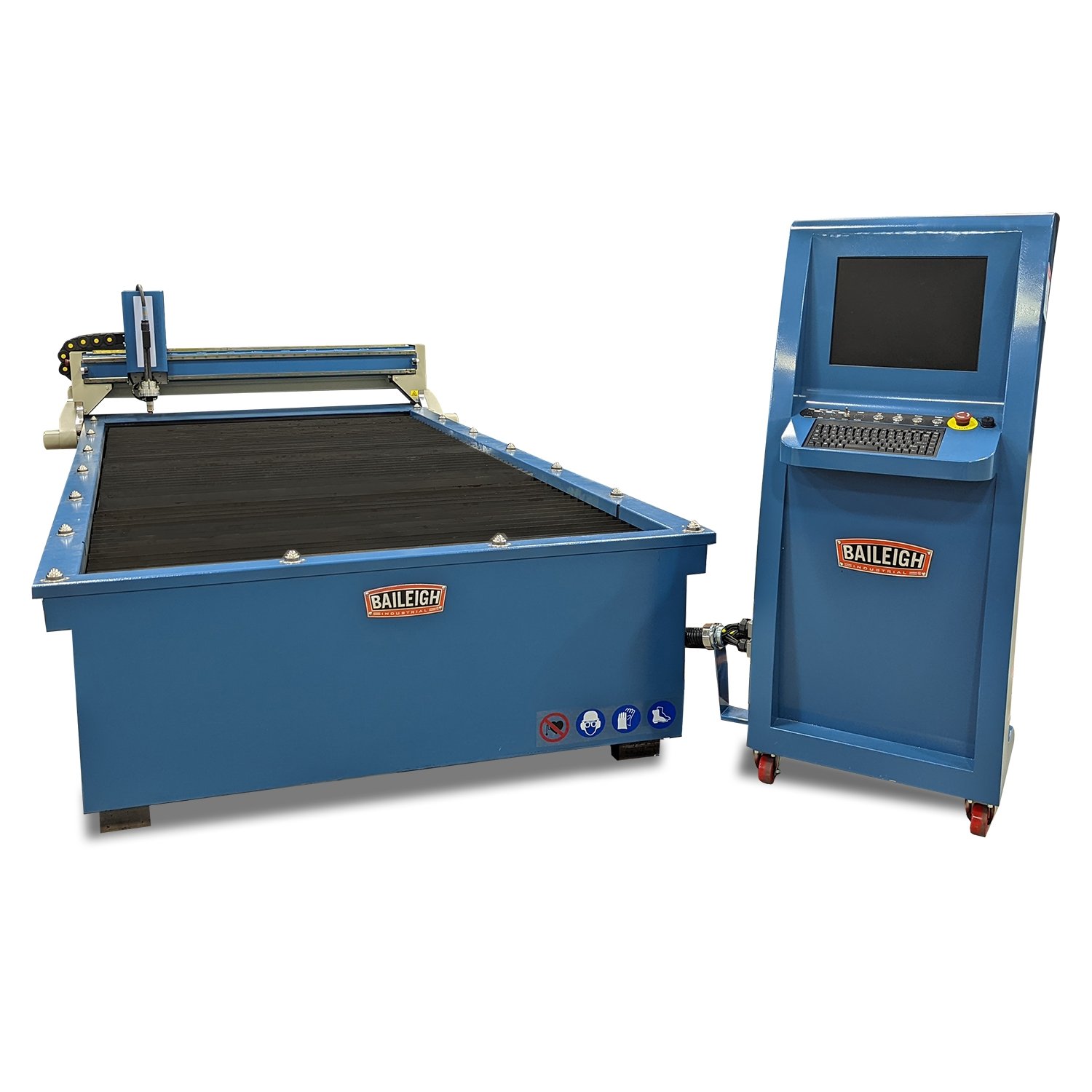

Baileigh 60″ x 140″ CNC Plasma Table PT-105HD-W-V2 1231496

Baileigh 60″ x 140″ CNC Plasma Table PT-105HD-W-V2 1231496 is a Baileigh Industrial product in the CNC Plasma Tables collection.

Product Details

• Travel Speed 315 Inches Per Minute
• Table Dimensions 60" x 140"
• Table Load Capacity 1" Mild Steel
• Capacity Depends on Plasma System Chosen
• Description
• The PT-105HD-W includes a water bath and has the structural strength to handle 5’ x 10’ sheets. Automatic height detection is ideal for production runs. It arrives fully assembled and comes with software.
• Features
• Runs on 220-volt single-phase power.
• Control the X, Y, and Z axis movement from the sturdy podium with large console screen and keypad.
• Includes easy-to-learn design software that you can load into any basic PC (more details below).
• Console offers a pre-loaded library of shapes that you can resize and alter at the table—without a computer.
• Automatic height detection on the Z-axis makes perfect cuts in corrugated or uneven materials.
• Panasonic® brushless servo motors, controlled by Panasonic® servo motion controllers, drive the gantry.

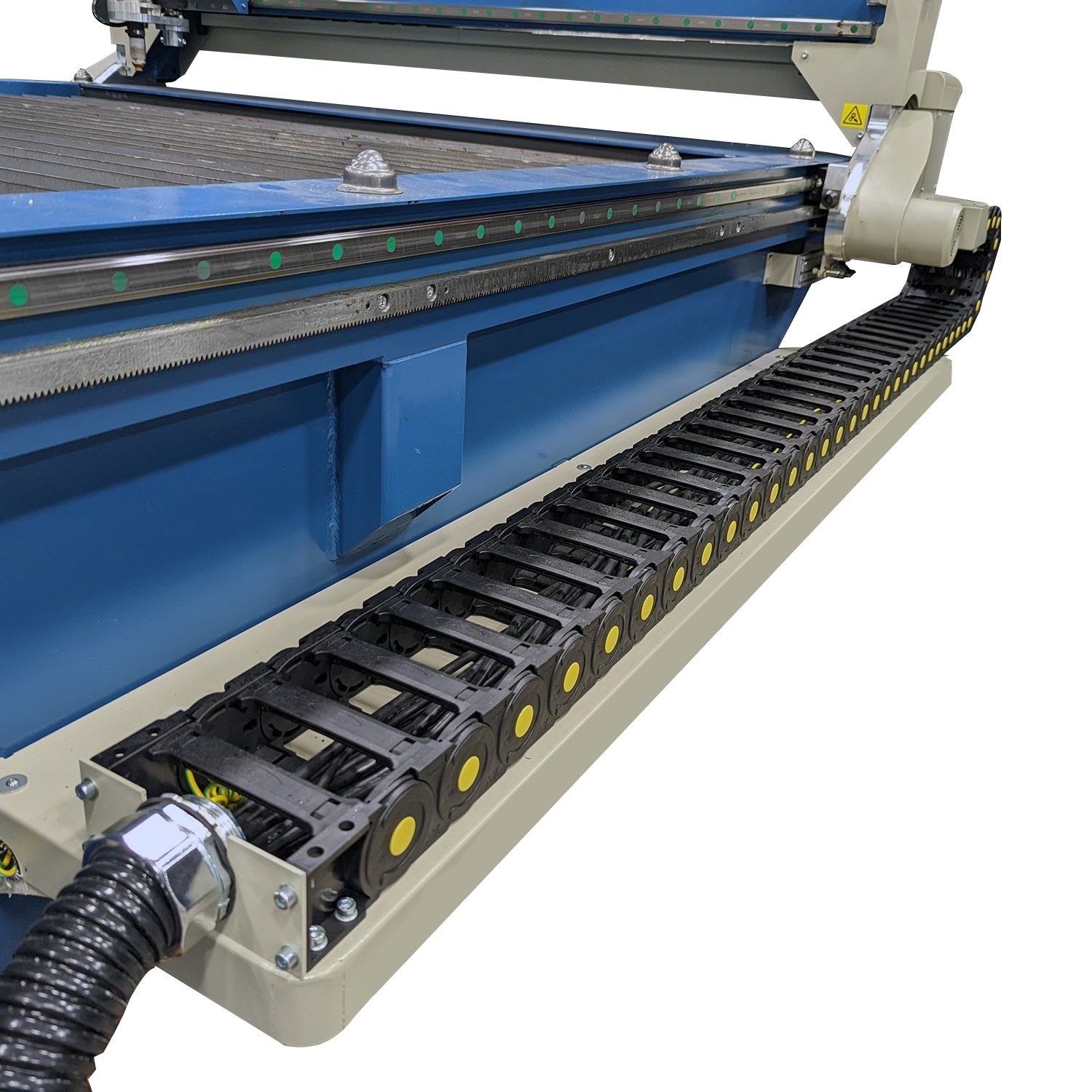

• Industrial-grade gantry travel system for the X, Y & Z axis made from extremely rigid extruded aluminum.
• Gantry can move out of the way for a full 10-foot sheet during loading, minimizing the chance of machine damage.
• High gantry (one of the highest in the industry) lets you clearly see its movement for better adjustment and control.
• Axes ride on heavy-duty ground and polished square shafts.
• Wiper dies on shafts keep welding dust out of the slide for a smooth transfer without noisy friction caused by dirt build-up.
• Our design reduces the risk of damaging the table while loading or pinching your forklift—unlike competing plasma tables with recessed work areas.
• Weigh an impressive 4000 lbs.
• Fully-welded boxed tubing construction can easily support the weight of maximum capacity material.
• Steel framework will hold its shape and stay accurate for decades, unlike many competitors’ aluminum frames, which buckle and warp under heat.
• Pre-built plasma table saves you time and effort. The alignment is already set up and correct when it arrives.
• Covered by a 1-year parts warranty.
• You’ll benefit from lifetime technical support by phone. Call up one of our experienced
• BOBCAD-CAM EXPRESS DESIGN SOFTWARE (INCLUDED)
• The PT-105HD-W comes standard with BobCAD-Cam Express programming software. You can design or plot out your project on any computer and load the plasma table via a USB drive. To learn more or download a free trial, click the BobCAD-Cam logo above.
• Specifications
• Item Number: PT-105HD-W-V2
• Table Style: Water
• Drive: Servo Motor
• Power: 220V / 1-phase
• Shipping Weight: 4620lbs
• Shipping Dimensions (Inches): 180x97x75 & 69x44x29

Specifications

• Manufacturer: Baileigh Industrial
• SKU: BA9-1231496
• UPC: 19907011125
• Shipping Method: Flatbed
• Weight: 4,715 lb
• Dimensions: 180 × 97 × 75 in
• Country of Origin: China
• Warranty: 1 Year (Parts)
