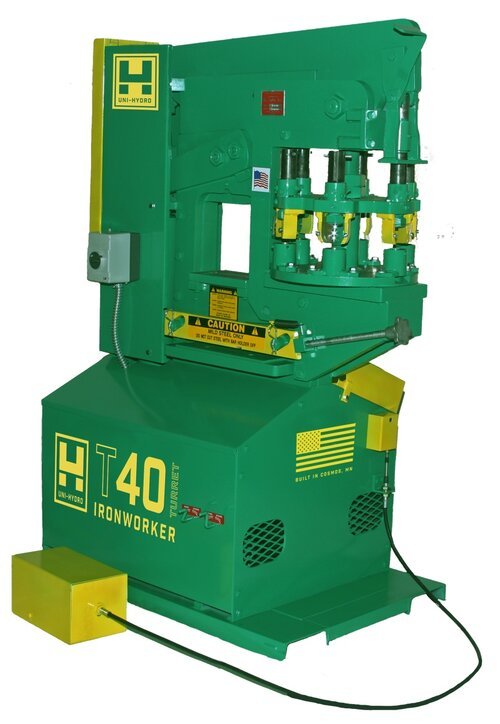

Uni-Hydro T40-14 220V Single Phase 40 Ton Turret Punch Hydraulic Ironworker 104010

Uni-Hydro T40-14 220V Single Phase 40 Ton Turret Punch Hydraulic Ironworker 104010 is a Uni-Hydro product in the Ironworkers collection.

Product Details

• Revolving turret with 6 punching stations
• Fixed or adjustable bar shear hold-down
• Motor: 3 HP, 220 Volt, 1 Phase
• Made In The USA
• Description
• The Uni-Hydro Model T40-14 is a six punch station Turret Ironworker that has a 5.25” throat depth with a quick release handle to disengage from the punch plungers for easy rotation of the turret mechanism to spin the turret. Uni-Hydro’s NEW design of the Turret is superior in strength and stability.
• Uni-hydro machines are made in the USA, not assembled from imported parts. All their machines are built from the ground up at their factory in Cosmos, MN.
• Features
• Punch up to six different sizes or shapes within seconds
• 14″ bar shear with 4-sided blades can miter angle iron to 3″ x 3″ x 5/16″
• Bar shear hold-down can be fixed or adjustable
• Variable stroke control
• Built for forklift handling
• Specifications
• Model: T40-14
• Tonnage: 40
• Throat Depth: 5-1/4"
• Punch: 1" hole in 1/2" mild steel 1-3/8" hole in 3/8" mild steel
• 1" hole in 1/2" mild steel
• 1-3/8" hole in 3/8" mild steel
• Bar Shear: 3/8" x 14" 1/2" x 10" 5/8" x 6”
• 3/8" x 14"
• 1/2" x 10"
• 5/8" x 6”
• Angle Shear 90°: Slug Type – 3" x 3" x 3/8" Sever Cut – 3" x 3" x 1/4"
• Slug Type – 3" x 3" x 3/8"
• Sever Cut – 3" x 3" x 1/4"
• Miter Angle 45°: Bar Shear – 3" x 3" x 3/8" Slug Type – 2" x 2" x 5/16"
• Bar Shear – 3" x 3" x 3/8"
• Slug Type – 2" x 2" x 5/16"
• Rod Shear: Round (Max) – 3/4" Square (Max) – 3/4”
• Round (Max) – 3/4"
• Square (Max) – 3/4”
• V Coper Notcher 90°: For 3" x 3" x 1/4" Angle Iron
• Square Notcher: 1-3/4" x 2" x 1/4" – Punch/Power Cavity
• Pipe Notcher (Sch 40 or 80): 1/2", 3/4", 1", 1-1/4", 1-1/2", 1-3/4”, 2"
• Brake: 6" or 9” x 1/4”
• Channel Shear: 1" & 2" combined or 3" standard
• Strokes Per Min: Light Material – 50 Max Capacity – 7
• Light Material – 50
• Max Capacity – 7
• Hydraulics: 1,000 psi
• Oil Capacity: 15 quarts
• Motor: 3 HP, 220 Volt, Single Phase
• Dimensions (L x W x H): 34" x 28" x 60"
• Bar Shear Work Height: 30"
• Punch Table Top Height: 38-3/16"
• Cavity Table Top Height: 37-1/4"
• Weight (May Vary): 1,710 lbs
• Optional Tooling & Accessories
• V-Coper Notcher
• Square Notcher
• Pipe Notcher
• Slug Type Angle Shear
• Universal Sever Housing
• Sever Plates
• Sever Housing Back
• 2-Part Brake
• Spring Return Brake
• Punch Table + Adjusting Jig
• Bar Shear Table
• Steel Bin Catcher
• Deluxe Back Gauge
• Bar Shear Stop
• Grease Bank
• Remote Foot Switch
• Oversize Die Stands
• Punch Nut Wrenches
• Punch Rack
• Oversize Die Stand
• Offset Die Stands
• Offset L100 Die Stand
• Oversize Punches
• Special Die Stand

Specifications

• Manufacturer: Uni-Hydro
• SKU: 104010
• Shipping Method: LTL Freight
• Weight: 1,710 lb
• Dimensions: 34 × 28 × 60 in
• Country of Origin: United States of America
• Warranty: 3 Years (Parts)
