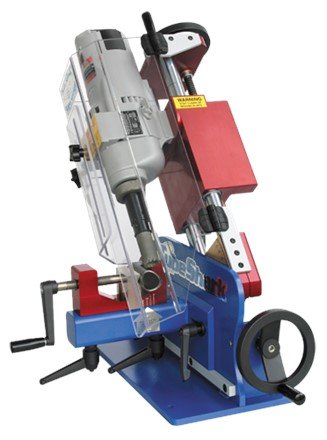

TubeShark 120V Single Phase Electric Tube Notcher TSN-1

TubeShark 120V Single Phase Electric Tube Notcher TSN-1 is a TubeShark product in the Notchers collection.

Product Details

• Motor: 120V Single Phase
• Gap Free Notches from 0° to 60°
• Can notch material from ½” to 3” diameter
• Adapters Included: ½”-20, 5/8”-18, and ¾”-10 threaded ends
• Description
• Now you can cut precision notches in virtually any material from ½” to 3” diameter. The TubeShark® Tube Notcher produces gap-free notches from 0° to 60° in thin or thick-wall tubing and pipe.
• The TubeShark Notcher is built using heavy-duty ½” steel frame eliminating vibration. This notcher is precision machined, anodized aluminum billet block with oil-impregnated bronze bushings. This powerful machine features a heavy-duty industrial two-speed drill motor for the toughest jobs. This is a fast machine with precision gauges and adjustable hand crank and handles for easy set up and operation. The TubeShark Notcher features v-block vise adjusts for centerline or offset notching and uses standard bi-metal or carbide-tipped hole saws. This notcher accepts ¾” Weldon shank and also doubles as a drill press.
• Features
• #3 Morse Taper Socket
• Top quality American made components
• Powder coated finish
• Specifications
• 11.5 amp, 250 & 500 rpm
• Dimensions: 48 x 48 x 48
• Weight: 250 lbs

Specifications

• Manufacturer: TubeShark
• SKU: TSN-1
• Shipping Method: LTL Freight
• Weight: 300 lb
• Dimensions: 48 × 48 × 48 in
