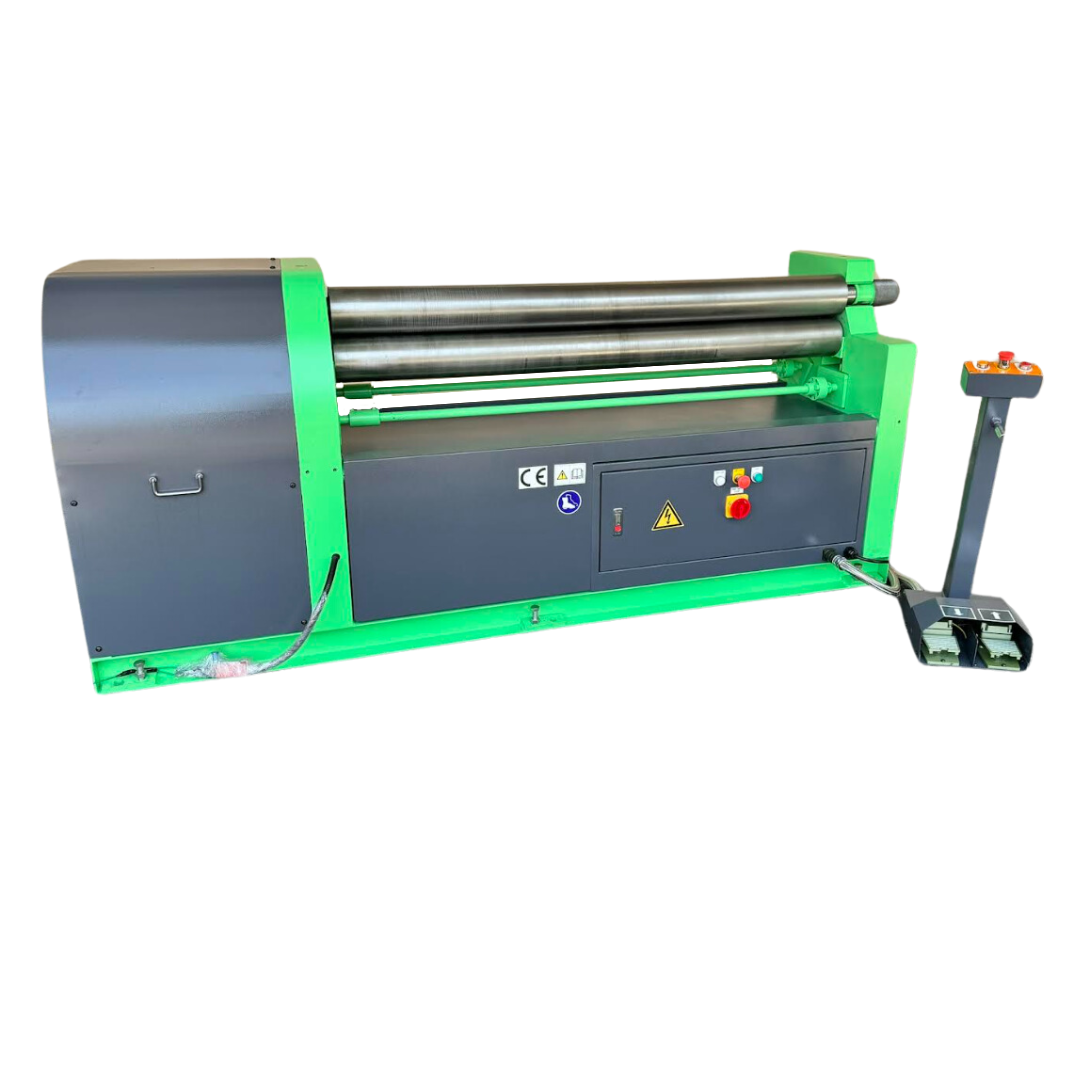

Tin Knocker HM Machinery 6ft x ¼” Heavy Power Roll MRM 1550×30

Tin Knocker HM Machinery 6ft x ¼” Heavy Power Roll MRM 1550×30 is a Tin Knocker product in the Slip Rolls collection.

Product Details

• Maximum Material Width: 60”
• Maximum Material Capacity: 3 Gauge Mild Steel
• Roller Diameter: 5”/130mm
• Minimum Bending Diameter: 7.7"/195mm
• Description
• The HM Machinery MRM 5ft x 1/4″ Power Roll is a heavy duty motorized bending roll, with 3 rolls mounted on solid steel gable-ends, for heavy gauge, large scale fabrication.
• The MRM Power Roll can accommodate sheets up to 60″ wide and 120″ in length, with a material capacity of 3 gauge mild steel. Roll position is easily adjusted via a powered gear system.
• With both upper and lower rolls driven, plus a high polished finish, preventing damage to pre-finished components or marking of materials is easily avoided.
• Features and Benefits
• Upper and lower rolls are driven directly via a hardened gear system.
• Upper roll swings out to allow easy removal of finished metal roll
• Easy and accurate adjustment of all 3 independently-mounted rolls to accommodate varying material thicknesses and bend profiles
• Mobile control panel with 3 position foot pedal (including emergency stop)
• Specifications
• Motor: 3HP
• Approx. Shipping Dimensions: 107”W x 26”D x 42”H
• Approx. Shipping Weight: 3200 lbs.

Specifications

• Manufacturer: Tin Knocker
• SKU: MRM 1550×30
• Shipping Method: LTL Freight
• Weight: 3,200 lb
• Dimensions: 107 × 26 × 42 in
• Country of Origin: Denmark
• Warranty: 1 Year (Parts)
