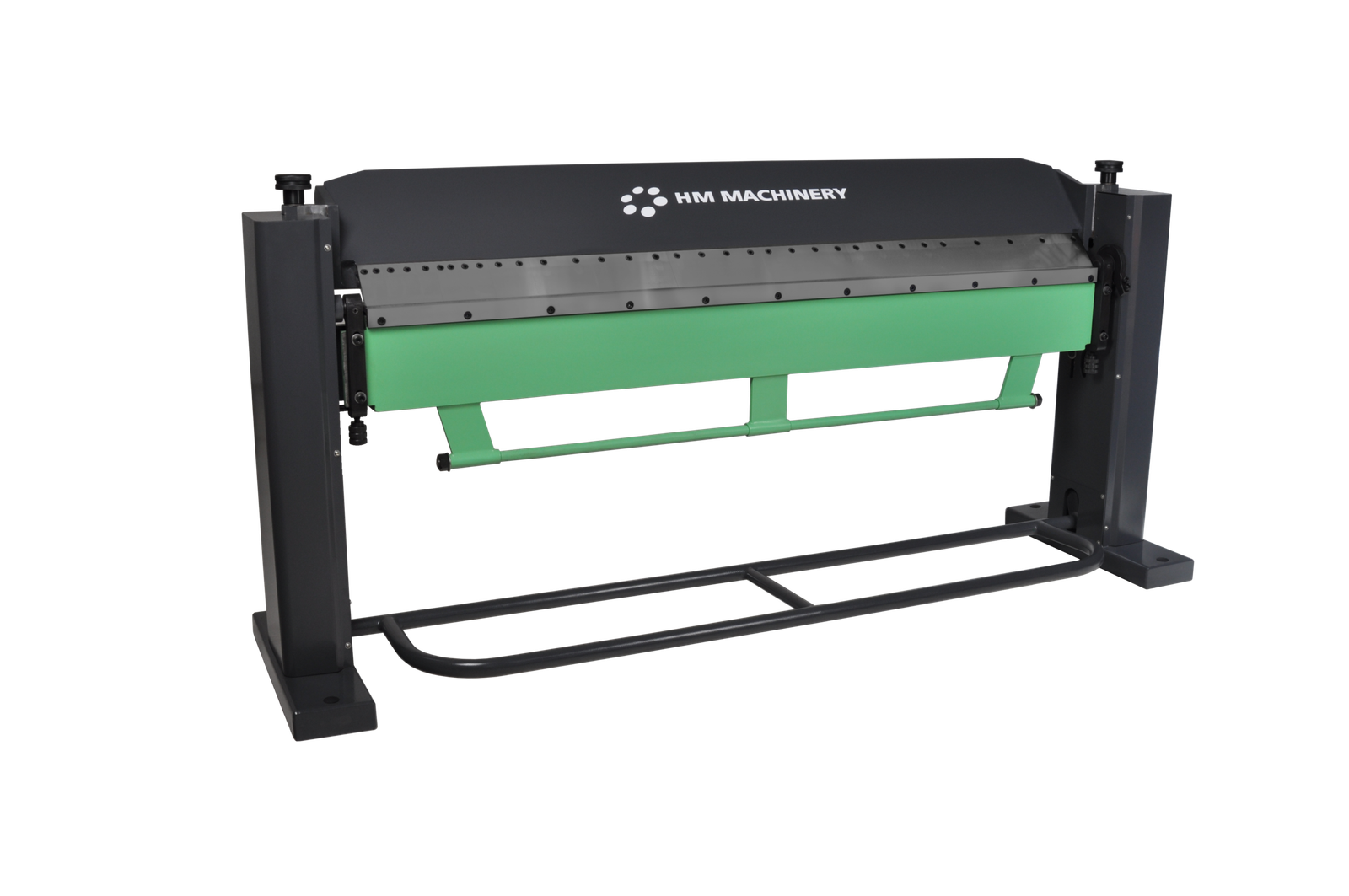

Tin Knocker HM Machinery 16ga. x 6ft Manual Box and Pan Brake HS-7S

Tin Knocker HM Machinery 16ga. x 6ft Manual Box and Pan Brake HS-7S is a Tin Knocker product in the Sheet Metal Brakes collection.

Product Details

• Maximum Bend Length: 79"
• Maximum Material Capacity: 16g
• Maximum Opening: 1.78"
• Maximum Folding Angle: 135 degrees
• Description
• The HM Machinery HS-7S manual brake is a large scale brake with angled segmented tooling, designed for the fabrication both straight and box and pan profiles. The HS-7S brake is a durable manual brake with a stout base for floor mounting in high production environments, where it can produce high quality and consistent complex bends.
• Features & Benefits
• Precision ground tooling creates straight, clean bends every time.
• Equipped with 13 segments of angled tooling on both top and bottom bending surfaces.
• Cross-driven clamping allows easy consistent material positioning.
• Repeat angle stop enables easily repeatable bends.
• The full-width lift handle allows easy operability and flexibility while fabricating complex shapes and profiles.
• Specifications
• Approx. Shipping Dimensions: 96" x 27" x 50"
• Approx. Shipping Weight: 1365 lbs

Specifications

• Manufacturer: Tin Knocker
• SKU: HS-7S
• Shipping Method: LTL Freight
• Weight: 1,365 lb
• Dimensions: 96 × 27 × 50 in
• Country of Origin: Denmark
• Warranty: 1 Year (Parts)
