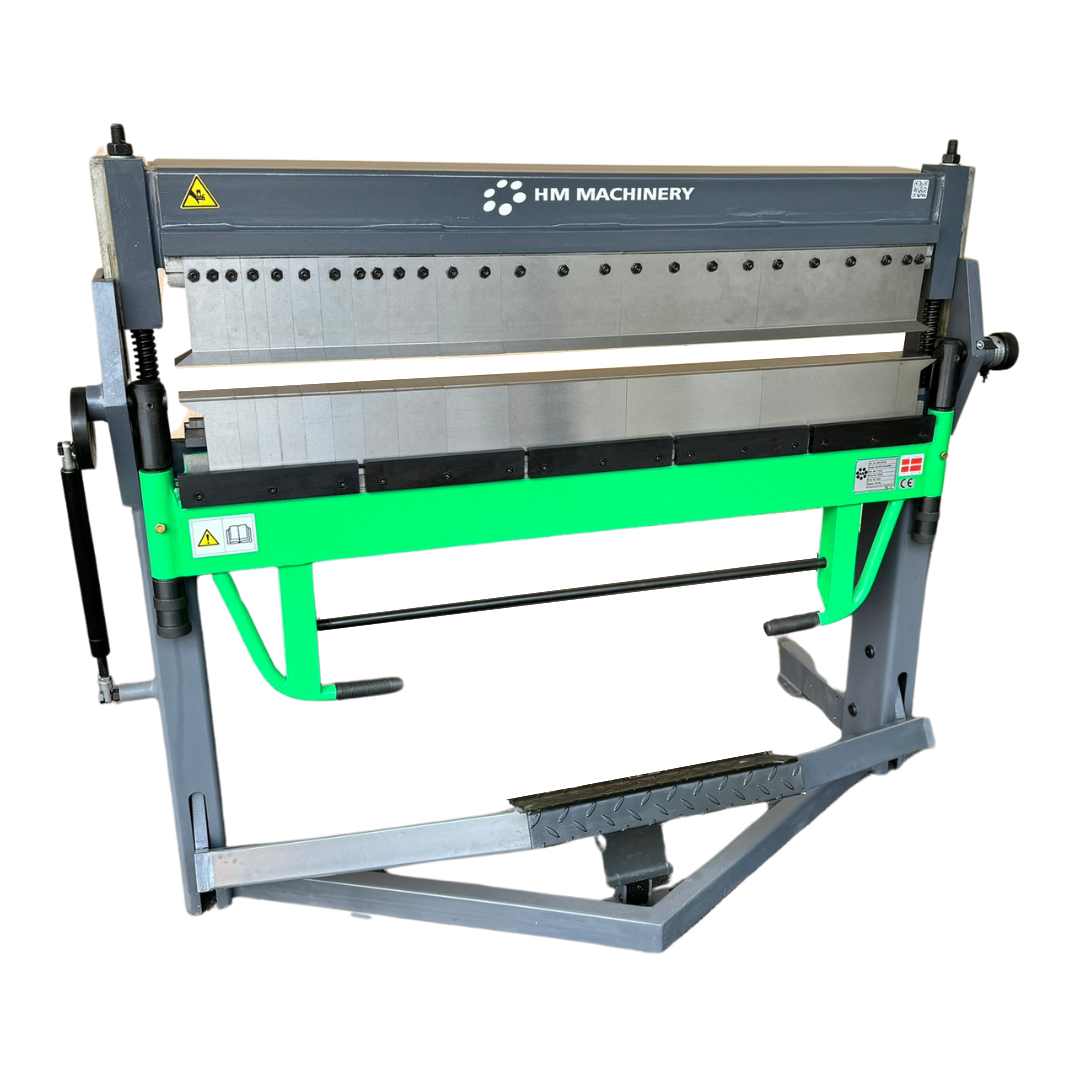

Tin Knocker HM Machinery 16ga x 4ft Superflex Universal Brake HS-3S-S

Tin Knocker HM Machinery 16ga x 4ft Superflex Universal Brake HS-3S-S is a Tin Knocker product in the Sheet Metal Brakes collection.

Product Details

• Maximum Bend Length: 50”
• Maximum Material Capacity: 16-Gauge Mild Steel
• Maximum Opening: 1.78”
• Maximum Folding Angle: 100 or 150 Degrees (depending on profile)
• Description
• The HM Machinery HS-3S-S Superflex Universal Brake is a large scale brake with segmented tooling, designed for the fabrication of box and pan and other special profiles, including those with inverse bends. The Superflex is a durable manual brake with a stout base for floor mounting in high production environments, where it can produce high quality and consistent complex bends.
• Features & Benefits
• Precision ground tooling creates straight, clean bends every time.
• Equipped with 13 segments of tooling on both top and bottom bending surfaces.
• Precise material positioning is made possible with a foot-operated clamping mechanism, allowing the operator to use both hands to handle and position material
• Repeat angle stop enables easily repeatable bends.
• The lift handle is ergonomically designed and operable from either side of the machine, allowing flexibility while fabricating complex shapes and profiles.
• Specifications
• Approx. Shipping Dimensions: 63” x 36” x 50”
• Approx. Shipping Weight: 915lbs.

Specifications

• Manufacturer: Tin Knocker
• SKU: HS-3S-S
• Shipping Method: LTL Freight
• Weight: 915 lb
• Dimensions: 63 × 36 × 50 in
• Country of Origin: Denmark
• Warranty: 1 Year (Parts)
