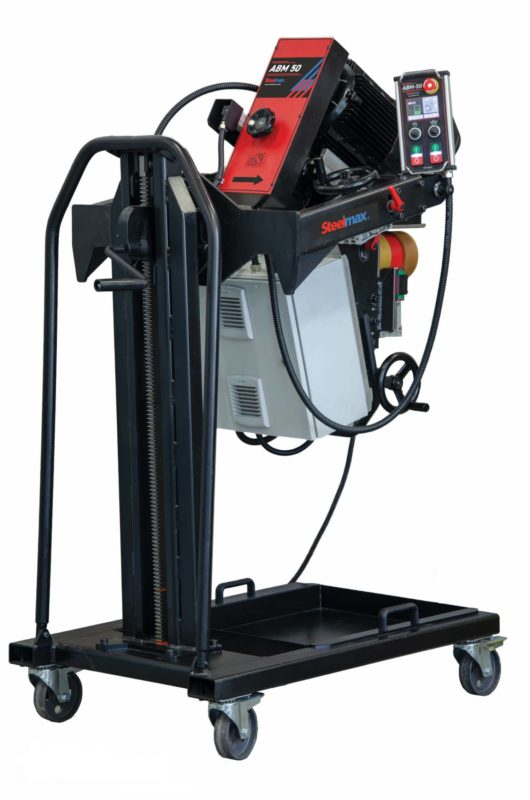

Steelmax ABM50 480V Three Phase Inverting Auto Feeding 50mm Plate Beveling Machine SM-ABM-50

Steelmax ABM50 480V Three Phase Inverting Auto Feeding 50mm Plate Beveling Machine SM-ABM-50 is a Steelmax product in the Beveling Machines collection.

Product Details

• Power: 8.7 HP (6.5kW)
• Spindle speed (no load): 300-800 rpm
• Feed speed: 0”-47” ipm
• Bevel angle: 15°-60° infinitely variable
• Description
• SELF-PROPELLED, INVERTIBLE BEVELING MACHINE REDUCES MATERIAL HANDLING
• The Steelmax ABM50 produces accurate, high-quality, machined bevels on plates from 5//16” to 3-1/8” thick using a high-speed rotary milling head with replaceable carbide inserts. The machine features an infinitely adjustable bevel angle between 15 and 60 degrees and is capable of producing bevels up to 2” (50mm) wide. The ABM50 incorporates onboard spindle speed adjustment to optimally bevel ferrous and non-ferrous materials and excels in beveling high tensile strength materials up to 450,000 psi.
• Root face dimensions remain accurate and repeatable from plate to plate, promoting better fit-up and consistent weld geometry. The milled finish is produced without thermal distortion and is ready to weld without additional grinding to remove dross, slap or heat affected zone (HAZ).
• The ABM50 employs a unique trolley system which allows the machine to quickly invert and bevel the bottom side of the plate – eliminating the need to flip the material – improving operational safety and increasing productivity. The trolley system also features vertical height adjustment and floating compensation for uneven floors.
• The operator can easily pre-set and adjust the following parameters:
• Bevel angle
• Bevel width
• Bevel depth
• Optimal depth of cut for each pass
• Spindle speed
• Travel speed
• Spindle load
• Features
• Self-feeding for consistent bevel geometry from end-to-end
• Real time measurement and on-screen display of exact bevel geometry and milling parameters
• Variable spindle speed for milling ferrous and non-ferrous materials including high tensile strength materials
• 180° inversion allows for quick and easy creation of double-sided bevels
• Rotary milling head with carbide inserts produces an accurate, high-quality finish without thermal distortion that is weld ready
• Built-in overload protection
• Floating trolley compensates for uneven floors
• Portable machine that can easily be moved throughout the shop
• Standard Kit Includes
• Beveling machine with milling head and 8 cutting inserts
• Wooden box with base and mounting brackets
• Special wrench
• 10mm T-handle hex wrench with ball tip
• 3.5mm hex wrench
• T15 torx screwdriver
• Grease for screws
• Operator’s manual
• Specifications
• Electrical Requirements: 480V / Three Phase / 60 Hz
• Max bevel width (varies with angle setting): 2-5/8” at 15° 2” at 45°
• 2-5/8” at 15°
• 2” at 45°
• Min plate dimensions: 24” long x 10” wide
• Max depth of cut per pass: ¼”
• Plate thickness range: 5/16” – 3-1/8”
• Weight: 700 lbs
• Optional Accessories
• Cutting insert
• Milling head
• Cutting insert for High Tensile Strength Material

Specifications

• Manufacturer: Steelmax
• SKU: SM-ABM-50
• UPC: 848118005124
• Shipping Method: LTL Freight
• Weight: 924 lb
• Dimensions: 40 × 47 × 63 in
• Country of Origin: Poland
