Steelmax 230V Single Phase Portable 30mm Weld Bead Shaver SM-BM30-WBS-230
$2,315.00Current price is: $2,315.00.
- Power: 2200W
- Spindle Speed (without load): 1800-5850 rpm
- Max Milling Width: 1-3/16” (30mm)
- Max Milling Height: ½” (11mm)
Description
Steelmax 230V Single Phase Portable 30mm Weld Bead Shaver SM-BM30-WBS-230 is a Steelmax product in the Beveling Machines collection.
Product Details
- Power: 2200W
- Spindle Speed (without load): 1800-5850 rpm
- Max Milling Width: 1-3/16” (30mm)
- Max Milling Height: ½” (11mm)
- Description

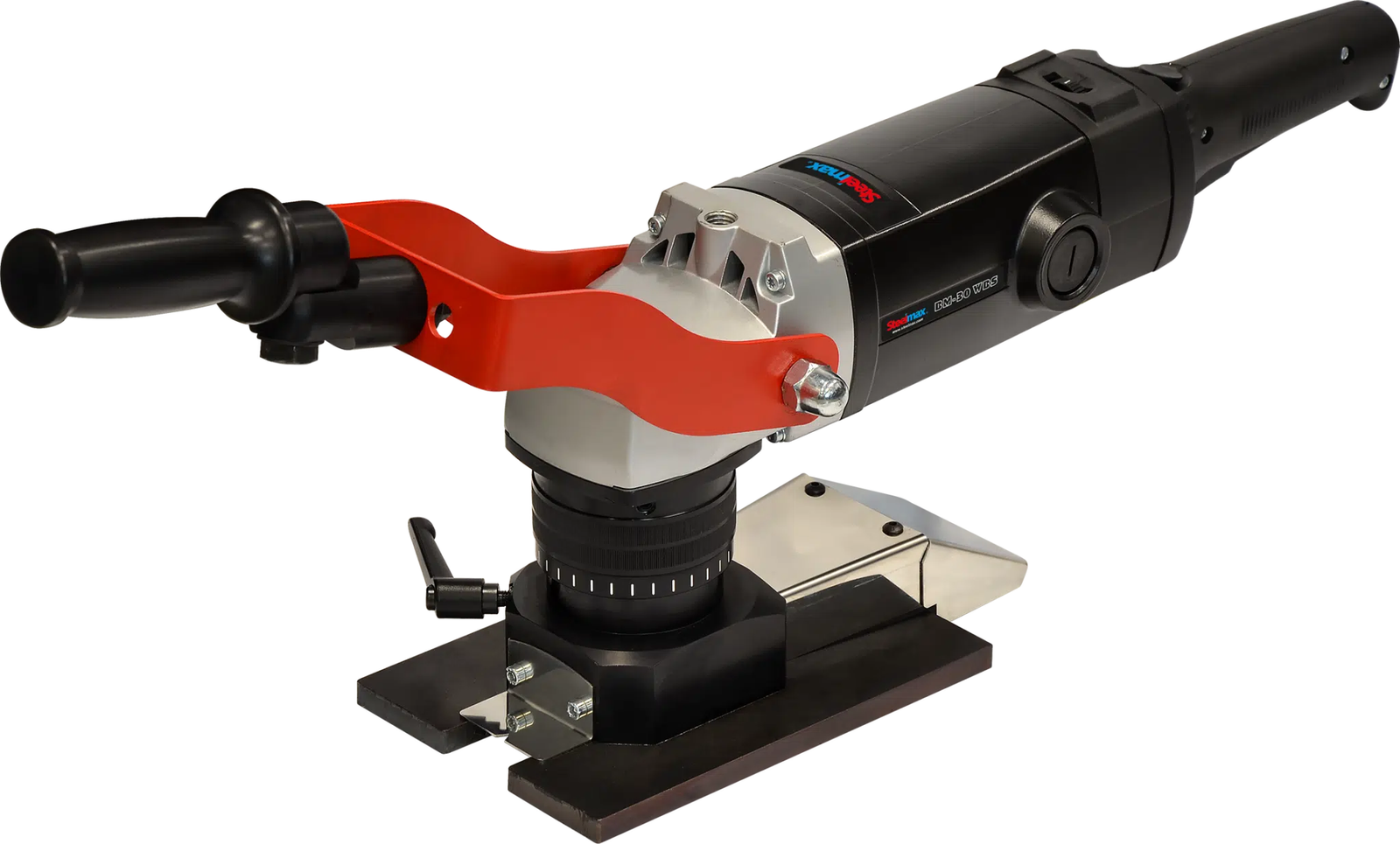

- The BM30-WBS is an easy-to-use, portable, heavy-duty machine specifically designed for the removal of excess weld seams up to ½” high and 1-3/16” wide. It efficiently mills a weld seam down to a level and continuous surface with the parent metal, preparing it for painting, coating, or further processing.
- Equipped with a powerful motor and electronic speed control ranging from 1800 to 5850 rpm, the BM30-WBS optimizes cutting conditions for superior performance. The rotary face milling head ensures smooth operation and exceptional efficiency without creating heat-affected zones or workpiece distortion. The precision, the BM30-WBS features a guide rail with a magnetic clamping system to maintain a consistent position against the workpiece.
- Features
- Easy set up & use
- Milling weld seams up to ½” high and 1-3/16” wide
- Undercuts to a depth of up to 1.5mm
- Electronic speed control between 1800-5850 rpm
- Ergonomically designed for increased comfort during work
- Milling head with 5 pieces of 2 sided indexable cutting inserts
- Continuous milling height adjustment
- Overload protection
- Shipping Set
- Milling machine with rotary head including 5 cutting inserts
- Plastic box
- Magnetic guiding rail
- Grease for screws
- Drift
- Combination wrench 22mm
- 10mm hex wrench
- Operator’s manual
- Specifications
- Electrical Requirements: 230V / Single Phase / 50Hz
- Max Milling Depth: -.05”
- Weight: 27 lbs
- Optional Accessories
- GLW-000056 Milling head
- PLY-000756 Cutting insert
- PRW-0761-08-00-00-0 Magnetic guiding rail
Specifications
- Manufacturer: Steelmax
- SKU: SM-BM30-WBS-230
- UPC: 848118005643
- Shipping Method: Ground
- Weight: 30 lb
- Dimensions: 32 × 16 × 11 in
- Country of Origin: Poland
Additional information
| Weight | 30.0 lbs |
|---|---|
| Dimensions | 32.0 × 16.0 × 11.0 in |
| Brand | Steelmax |
