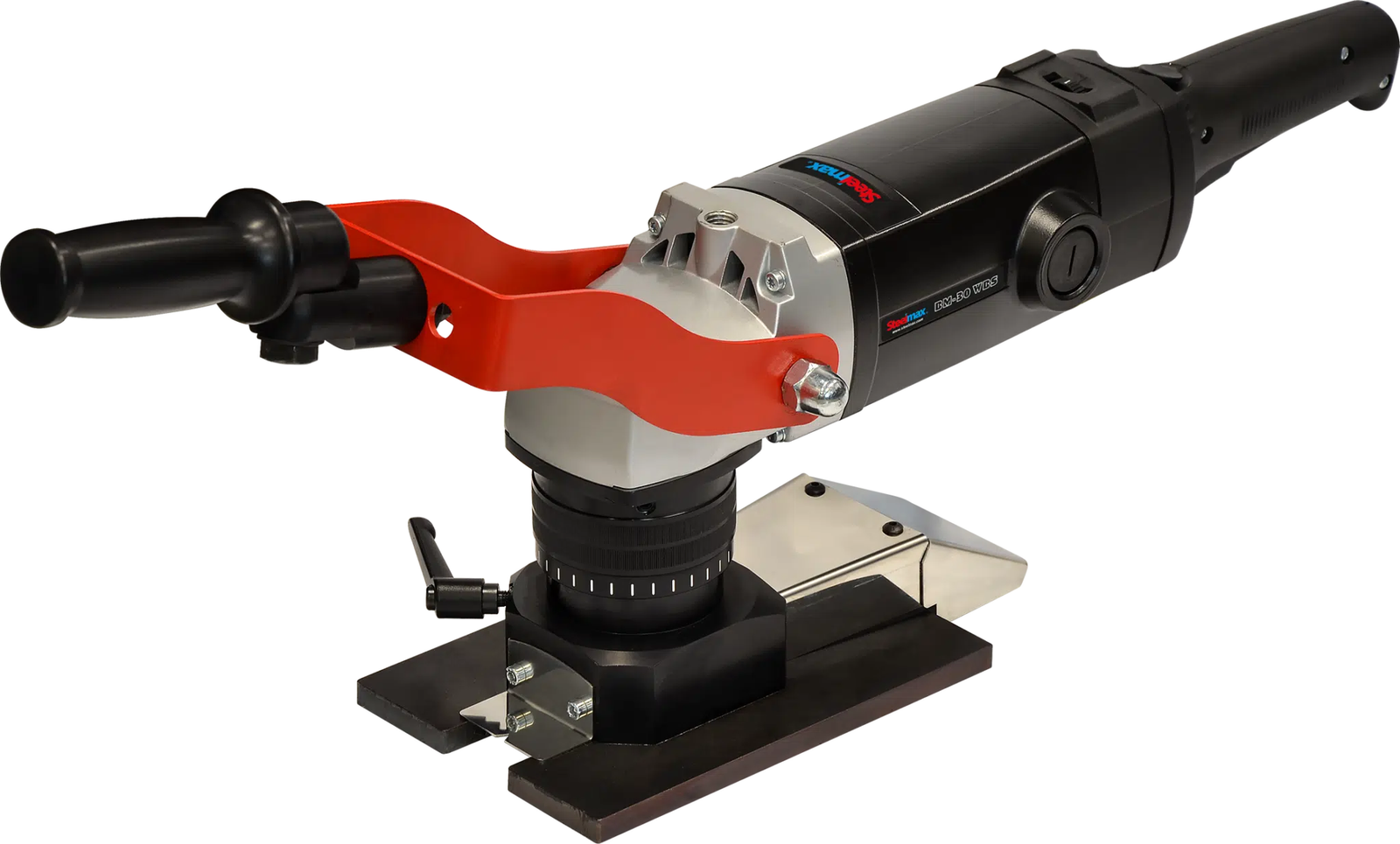

Steelmax 115V Single Phase Portable 30mm Weld Bead Shaver SM-BM30-WBS

Steelmax 115V Single Phase Portable 30mm Weld Bead Shaver SM-BM30-WBS is a Steelmax product in the Beveling Machines collection.

Product Details

• Power: 2200W
• Spindle Speed (without load): 1800-5850 rpm
• Max Milling Width: 1-3/16” (30mm)
• Max Milling Height: ½” (11mm)
• Description
• The BM30-WBS is an easy-to-use, portable, heavy-duty machine specifically designed for the removal of excess weld seams up to ½” high and 1-3/16” wide. It efficiently mills a weld seam down to a level and continuous surface with the parent metal, preparing it for painting, coating, or further processing.
• Equipped with a powerful motor and electronic speed control ranging from 1800 to 5850 rpm, the BM30-WBS optimizes cutting conditions for superior performance. The rotary face milling head ensures smooth operation and exceptional efficiency without creating heat-affected zones or workpiece distortion. The precision, the BM30-WBS features a guide rail with a magnetic clamping system to maintain a consistent position against the workpiece.
• Features
• Easy set up & use
• Milling weld seams up to ½” high and 1-3/16” wide
• Undercuts to a depth of up to 1.5mm
• Electronic speed control between 1800-5850 rpm
• Ergonomically designed for increased comfort during work
• Milling head with 5 pieces of 2 sided indexable cutting inserts
• Continuous milling height adjustment
• Overload protection
• Shipping Set
• Milling machine with rotary head including 5 cutting inserts
• Plastic box
• Magnetic guiding rail
• Grease for screws
• Drift
• Combination wrench 22mm
• 10mm hex wrench
• Operator’s manual
• Specifications
• Electrical Requirements: 115V / Single Phase / 60Hz
• Max Milling Depth: -.05”
• Weight: 27 lbs
• Optional Accessories
• GLW-000056 Milling head
• PLY-000756 Cutting insert
• PRW-0761-08-00-00-0 Magnetic guiding rail

Specifications

• Manufacturer: Steelmax
• SKU: SM-BM30-WBS
• UPC: 848118005643
• Shipping Method: Ground
• Weight: 30 lb
• Dimensions: 32 × 16 × 11 in
• Country of Origin: Poland
