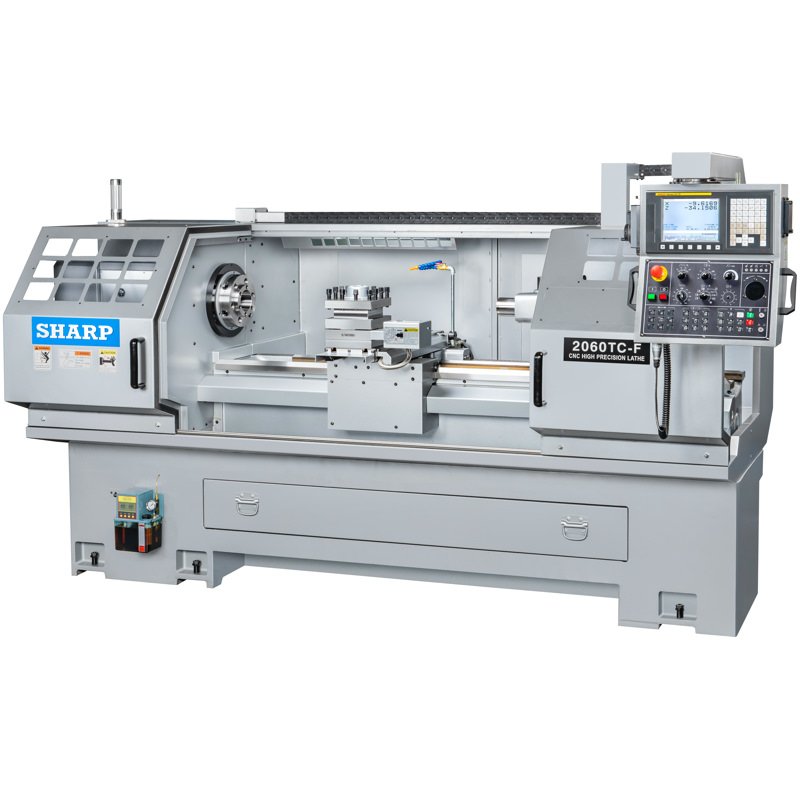

Sharp Industries 220V 20” x 60” TC-F Series CNC Precision Flat Bed Lathe 2060TC-F

Sharp Industries 220V 20” x 60” TC-F Series CNC Precision Flat Bed Lathe 2060TC-F is a Sharp Industries product in the Lathes collection.

Product Details

• Swing Over Bed: 20”
• Distance Between Centers: 59.05”
• Spindle Speed: 43-250 rpm
• Motor: 220V, 10 HP
• Description
• This is a user-friendly CNC lathe with full CNC functions and manual operation functions. It has programmable spindle speed, and 4- way tool post positioning. The Electronic handwheel (MPG) can be used for manual operation.
• The Fanuc OiTF all digital control and drive package provides exceptional value and reliability. The control features a clear 8.4” LCD screen that pivots out of easy operator viewing. It can catalog 400 part-program numbers and features an internal 2 GB solid state Data Server with 512 K RAM memory reserved for part programs. It features an embedded high speed Ethernet capability and AICC II and includes DB-25, RS-232 serial interface, RJ-45 Ethernet interface USB, and PC MCIA CF memory card connections for program transfer. Manual Guide-i conversational programming provides fast & efficient intuitive menu driven shop floor programming and includes a Thread Repair Cycle. An MPG handwheel is also provided.
• Standard Features
• FANUC Oi-TF CNC , 8.4” LCD screen
• 20” swing, 59” between centers
• D1-8 camlock, 3-3/8” spindle bore,
• 10 HP motor
• 2 steps gear speed change (40-2,000 rpm)
• programmable spindle speed
• Electronic Handwheel (MPG)
• 4- way programmable tool post
• Auto lube system
• Specifications
• Swing Over Cross Slide: 11”
• Spindle Nose: D1-6 camlock
• Spindle Bore: 3.37”
• Cross Slide Travel: 10.63”
• Bed Length: 102.2”
• Bed Width: 14.5”
• Quill Diameter: 2.93”
• Quill Travel: 6.31”
• Quill Center Taper: MT #5
• Spindle Motor: Fanuc 10 HP
• Approximate Weight: 6,614 lbs
• Dimensions: 10’ x 4.58’ x 6.08’
• Available Options & Accessories
• Hydraulic tailstock in lieu of manual tailstock
• 3-jaw heavy duty 8” chuck
• 3-jaw heavy duty 10” chuck
• Hydraulic 3-jaw 8” heavy duty
• Hydraulic 8 position turret with 4 x internal tool holder, 4 x external tool wedges
• Steady rest
• Follow rest
• Transformer 440V
• Spindle chiller

Specifications

• Manufacturer: Sharp Industries
• SKU: 2060TC-F
• Shipping Method: Flatbed
• Weight: 6,614 lb
• Dimensions: 120 × 55 × 73 in
• Country of Origin: Taiwan
• Warranty: 1 Year (Parts)
