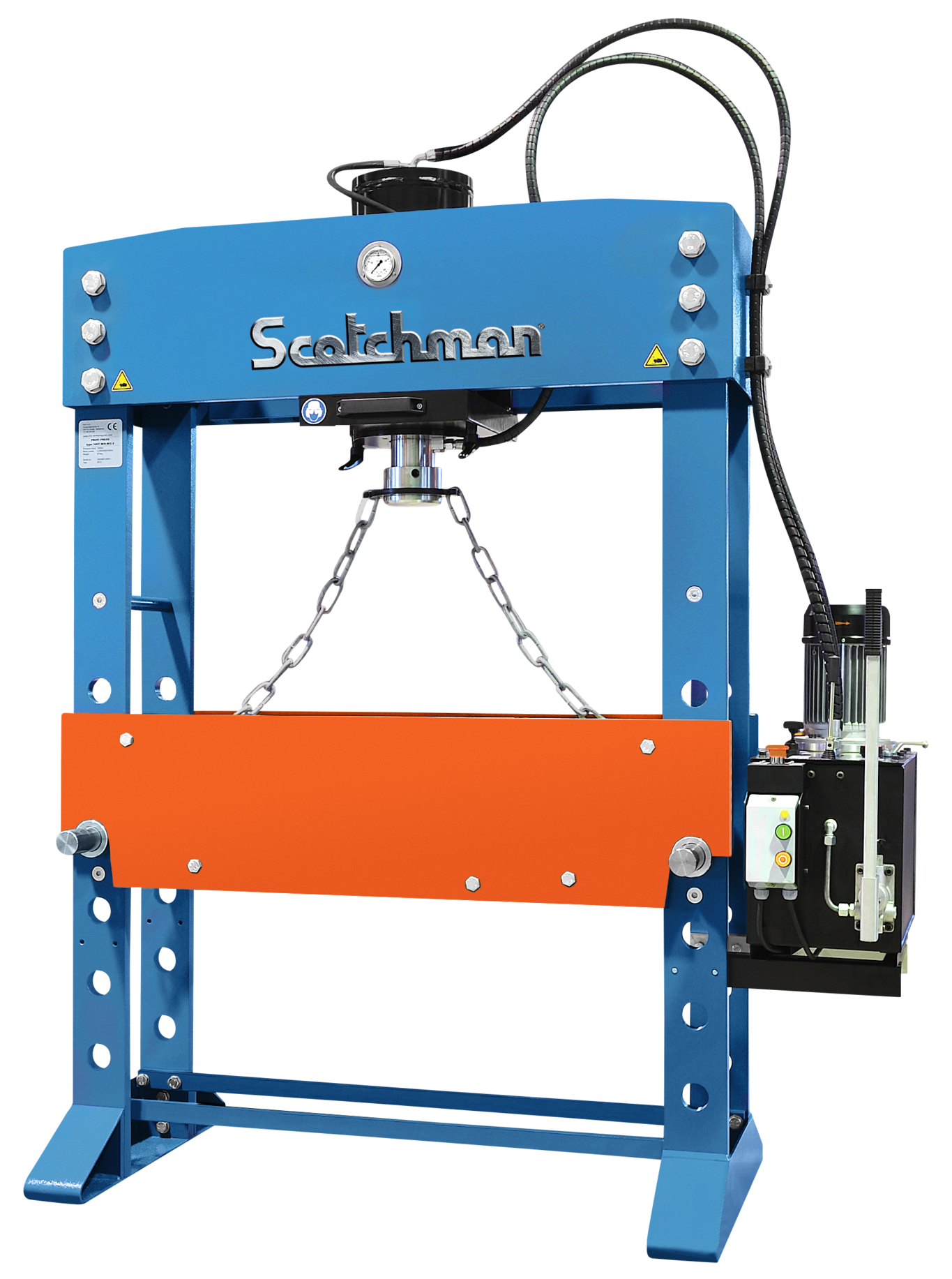

Scotchman PressPro 230V Three Phase 110 Ton Hydraulic Press 851102

Scotchman PressPro 230V Three Phase 110 Ton Hydraulic Press 851102 is a Scotchman product in the Hydraulic Presses collection.

Product Details

• Maximum Opening Height: 36-1/2"
• Stroke: 15"
• Motor: 3.5 hp, 230 Volt, 3 Phase
• Made in the Netherland with a 3-year parts warranty
• Description
• The 110 ton workshop press is our all-time best-seller!
• Our 110 ton hydraulic press is equipped with a movable cylinder (left-right) and an in-height adjustable working table. Furthermore, it has a pressure regulation, 2 speeds, a joystick and a hand pump for precision pressing.
• Smooth & precise, heavy-duty and versatile; This hydraulic press is industrial-grade and ideal for assembly, straightening, fabrication, quality control, maintenance, product testing, bending, & forming.
• The open side frame design allows for material to pass through and provides flexibility to work on the longest work pieces. Built for the big jobs as well as the small ones; the adjustable H-frame bed height offers increased versatility with its ability to raise and lower the table for the best working distance possible
• Meets CE Standards, manufactured in the Netherlands & comes with our 3-year warranty.
• Features
• Heavy duty all-steel construction
• Industrial grade hydraulic system
• Ram moves laterally for added versatility
• 3 Ram speeds
• Joystick operation with hand pump option
• Removable ram cap to accept a variety of tooling
• Adjustable H-frame bed/table height offers increased versatility
• Open side-frame design allows for material to pass through
• Hydraulic-assist for table height adjustment to maximize operator safety
• Set of V-blocks to simplify your pressing jobs
• Pressure gauge to monitor force
• Meets CE standards
• Warranty: Three years on parts
• Made in the Netherlands
• Specifications
• Press Force: 110 ton
• Motor: 3.5 hp, 230 Volt, Three Phase
• Ram Speed – Approach: 18 ipm
• Ram Speed – Press: 6 ipm
• Ram Speed – Return: 21 ipm
• Open Height (min.): 7"
• Open Height (max.): 36-1/2"
• Lateral Ram Slide: YES, Manual
• Width Between Uprights: 43-1/4"
• Width Between Table Channels: 11-3/4"
• Table Height: Adjustable, Manual with Hydraulic Assist
• Footprint (L x W): 65-1/2" x 34"
• Height Overall: 84-1/4"
• Weight (includes V-blocks): 2,138 lbs
• Optional Tooling
• PPS0010000_100: Mandrel Piston Head-110
• PPS0010000: Mandrel Set (18, 33, 45, 58, & 72mm) Mandrel Piston Head Required
• PP100008: 110 Ton V-Block Set

Specifications

• Manufacturer: Scotchman
• SKU: 851102
• Shipping Method: LTL Freight
• Weight: 2,138 lb
• Dimensions: 66 × 34 × 85 in
• Country of Origin: Netherlands
• Warranty: 3 Years (Parts)
