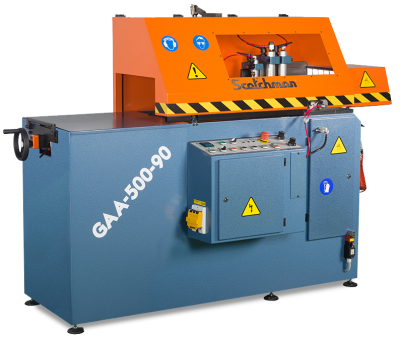

Scotchman GAA-500-90 20″ Non-Ferrous 230V Three Phase Fully Automatic Upcut Circular Cold Saw 910

Scotchman GAA-500-90 20″ Non-Ferrous 230V Three Phase Fully Automatic Upcut Circular Cold Saw 910 is a Scotchman product in the Cold Saws collection.

Product Details

• Length Tolerance: ± 0.006" per index
• Cutting Speed: 3,000 RPM
• Motor: 7.5 hp, 230 Volt, 3 Phase
• Made in the Spain with a 2-year parts warranty
• Features
• Large capacity non ferrous saw
• Automatic or Semi-automatic operation
• Shuttle feed design cuts at 90 degrees only
• "Automatic feeder: 20 inches x 2 strokes
• (20"" + 20"" max. double advance)"
• Adjustable length selector from 0.200" to 20"
• Adjustable cutting & feeding speeds
• Drill & Tap and CNC features (optional)
• Three horizontal pneumatic clamps
• Three vertical pneumatic clamps
• Powered hood lift
• LED lighting
• Mist coolant lubrication system
• Emergency stop button
• One gallon coolant
• One 500 mm diameter carbide blade
• One blade wrench
• Air hose
• Base designed as a chip collection with two chip extraction ports
• Adjustable leveling pads
• Meets CE standards
• Warranty: Two years on parts
• Made in Spain
• Specifications

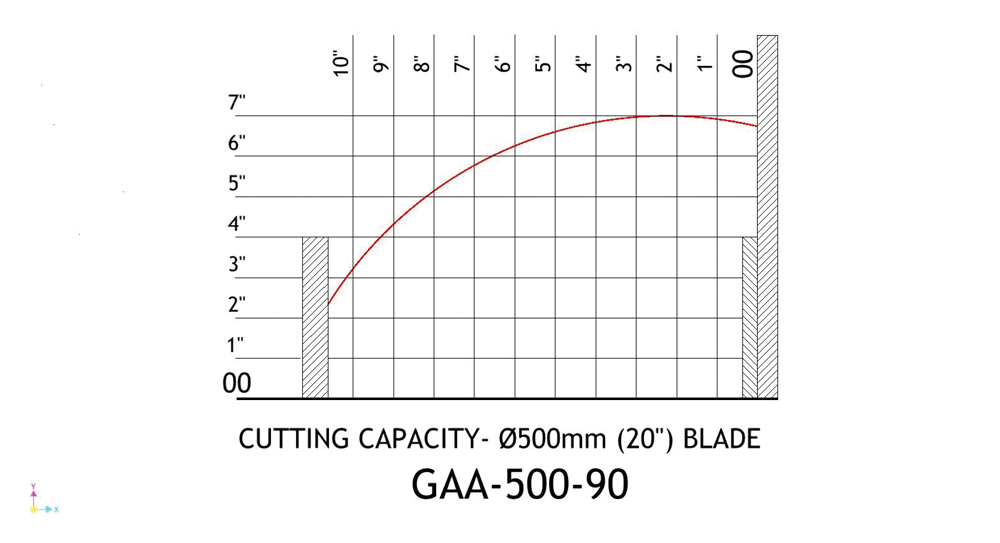

• Maximun Cutting Capacities (Non-Ferrous & PVC ): Round 90°: 6" Square 90°: 6" x 6" Rectangle 90°: 10" x 3"
• Round 90°: 6"
• Square 90°: 6" x 6"
• Rectangle 90°: 10" x 3"
• Motor Rate: 7.5 hp
• Motor Options: 230 Volt, Three Phase
• Air Pressure: 90 psi
• Maximum Diameter Blade: 500 mm
• Arbor Bore: 50 mm
• Width: 75"
• Depth: 42"
• Height (top of hood): 60-1/4"
• Height (floor to table): 38-5/8"
• Shipping Weight (may vary): 1,300 lbs.
• Optional Tooling
• Drill & Tap and CNC features

Specifications

• Manufacturer: Scotchman
• SKU: 910
• Shipping Method: LTL Freight
• Weight: 1,750 lb
• Dimensions: 80 × 45 × 45 in
• Country of Origin: Spain
• Warranty: 2 Years (Parts)
