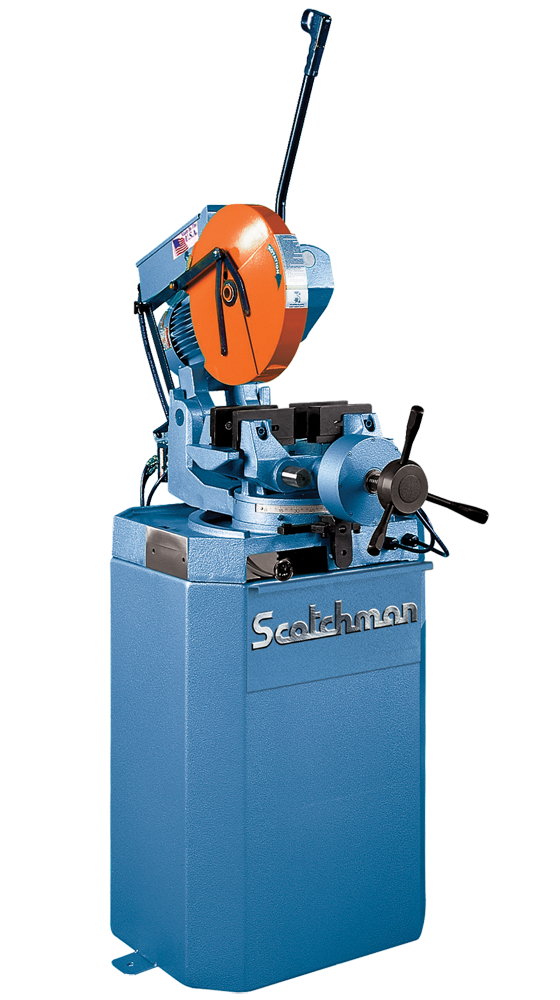

Scotchman CPO 350 NF 14″ Manual Non-Ferrous 208V Three Phase Circular Cold Saw 076040

Scotchman CPO 350 NF 14″ Manual Non-Ferrous 208V Three Phase Circular Cold Saw 076040 is a Scotchman product in the Cold Saws collection.

Product Details

• Cutting Speeds: 5 hp, 3,000 rpm
• Maximum Saw Blade Diameter: 350 mm
• Motor: 5 hp, 208 Volt, 3 Phase
• Made in the USA with a 3-year parts warranty
• Features
• Manual double self-centering vise assures burr-free cuts
• Operator controlled trigger switch
• Miter capabilities 45 degrees left to 45 degrees right
• Miter locking device: Quick, accurate settings-stops at 45 degrees left, 90 degrees, and 45 degrees right
• Capable of slotting
• Positive-driven cogged belt system
• Chip drawer
• Mist coolant lubrication system
• One 350 mm diameter carbide-tipped blade
• One blade wrench
• One gallon coolant
• Complies with ANSI B11.10 safety standards
• Warranty: Three years on parts
• Made in USA
• Specifications
• Max. Cutting Capacities (Non-Ferrous & PVC): Tubing: Round 90°: 4-1/2" Square 90°: 4-1/4" x 4-1/4" Rectangle 90°: 5-1/2" x 4" Round 45°: 4-1/4" Square 45°: 4” x 4" Rectangle 45°: 4" x 4" Solid Round 90°: 3" Square 90°: 3" x 3" Round 45°: 2-1/2" Square 45°: 2-1/2" x 2-1/2"
• Tubing: Round 90°: 4-1/2" Square 90°: 4-1/4" x 4-1/4" Rectangle 90°: 5-1/2" x 4" Round 45°: 4-1/4" Square 45°: 4” x 4" Rectangle 45°: 4" x 4"
• Round 90°: 4-1/2"
• Square 90°: 4-1/4" x 4-1/4"
• Rectangle 90°: 5-1/2" x 4"
• Round 45°: 4-1/4"
• Square 45°: 4” x 4"
• Rectangle 45°: 4" x 4"
• Solid Round 90°: 3" Square 90°: 3" x 3" Round 45°: 2-1/2" Square 45°: 2-1/2" x 2-1/2"
• Round 90°: 3"
• Square 90°: 3" x 3"
• Round 45°: 2-1/2"
• Square 45°: 2-1/2" x 2-1/2"
• Motor: 5 hp, 208 Volt, Three Phase
• Max. Diameter Blade: 350 mm
• Arbor Bore: 40 mm
• Pin Spacing: 4/12/64
• Width: 21-7/8"
• Depth: 43-1/2"
• Height (not including feed handle): 56-1/4"
• Height (floor to vise): 37-7/16"
• Shipping Weight (may vary): 625 lbs.

Specifications

• Manufacturer: Scotchman
• SKU: 076040
• Shipping Method: LTL Freight
• Weight: 625 lb
• Dimensions: 25 × 45 × 60 in
• Country of Origin: United States of America
• Warranty: 3 Years (Parts)
