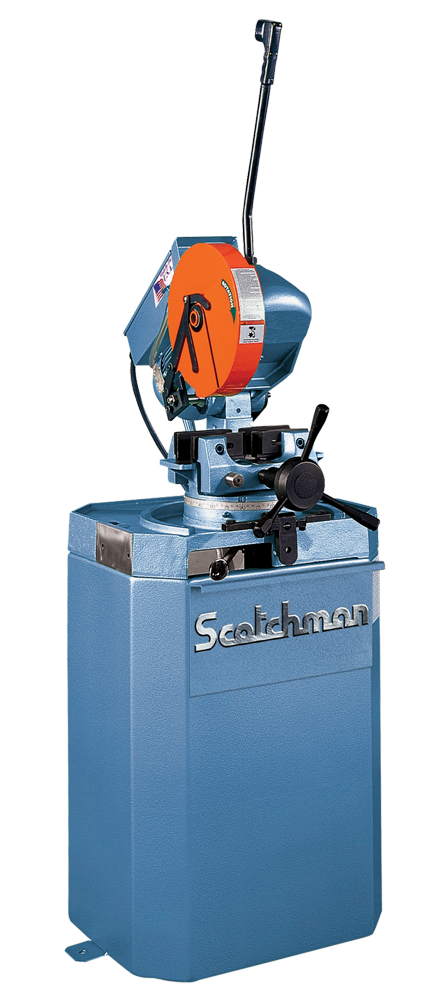

Scotchman CPO 275 208V Manual Three Phase High Turn Dual Speed Circular Cold Saw 076010

Scotchman CPO 275 208V Manual Three Phase High Turn Dual Speed Circular Cold Saw 076010 is a Scotchman product in the Cold Saws collection.

Product Details

• Maximum Diameter Blade: 275 mm
• Motor: 60/120 RPM, 208 Volt, 3 Phase
• Made in the USA with a 3-year parts warranty
• Features
• Manual double self-centering vise assures burr-free cuts
• Operator controlled trigger switch
• Miter locking device stops: 45 degree left, 90 degree and 45 degree right
• Capable of slotting
• Double reduction, hardened and ground worm and wheel gear box
• Chip drawer
• 7 Gallon flood coolant tank with pump
• One 250 mm diameter HSS blade
• One blade wrench
• One gallon coolant
• Complies with ANSI B11.10 safety standards
• Warranty: Three years on parts
• Made in USA
• Specifications
• Cutting Speeds: HT (High Turn) – designed for thin wall tube 0.060 wall thickness or thinner and non-ferrous material: 60/120 rpm
• Maximum Cutting Capacities (with 275 mm blade): Tubing: Round 90°: 3-3/8" Square 90°: 3" x 3" Rectangle 90°: 3" x 2-3/8" Round 45°: 2" Square 45°: 2" x 2" Rectangle 45°: 2" x 2" Solid Round 90°: 1-1/2" Square 90°: 1-1/2" x 1-1/2" Round 45°: 1" Square 45°: 1" x 1"
• Tubing: Round 90°: 3-3/8" Square 90°: 3" x 3" Rectangle 90°: 3" x 2-3/8" Round 45°: 2" Square 45°: 2" x 2" Rectangle 45°: 2" x 2"
• Round 90°: 3-3/8"
• Square 90°: 3" x 3"
• Rectangle 90°: 3" x 2-3/8"
• Round 45°: 2"
• Square 45°: 2" x 2"
• Rectangle 45°: 2" x 2"
• Solid Round 90°: 1-1/2" Square 90°: 1-1/2" x 1-1/2" Round 45°: 1" Square 45°: 1" x 1"
• Round 90°: 1-1/2"
• Square 90°: 1-1/2" x 1-1/2"
• Round 45°: 1"
• Square 45°: 1" x 1"
• Motor: 60/120 RPM, 208 Volt, Three Phase
• Arbor Bore: 32 mm
• Pin Spacing: 2/8/45
• Width: 21-7/8"
• Depth: 43-1/2"
• Height (not including feed handle): 53-1/4"
• Height (floor to vise): 36-1/8"
• Shipping Weight (may vary): 550 lbs.
• Optional Tooling
• 5' to 32' Material Supply Track

Specifications

• Manufacturer: Scotchman
• SKU: 076010
• Shipping Method: LTL Freight
• Weight: 550 lb
• Dimensions: 25 × 45 × 55 in
• Country of Origin: United States of America
• Warranty: 3 Years (Parts)
