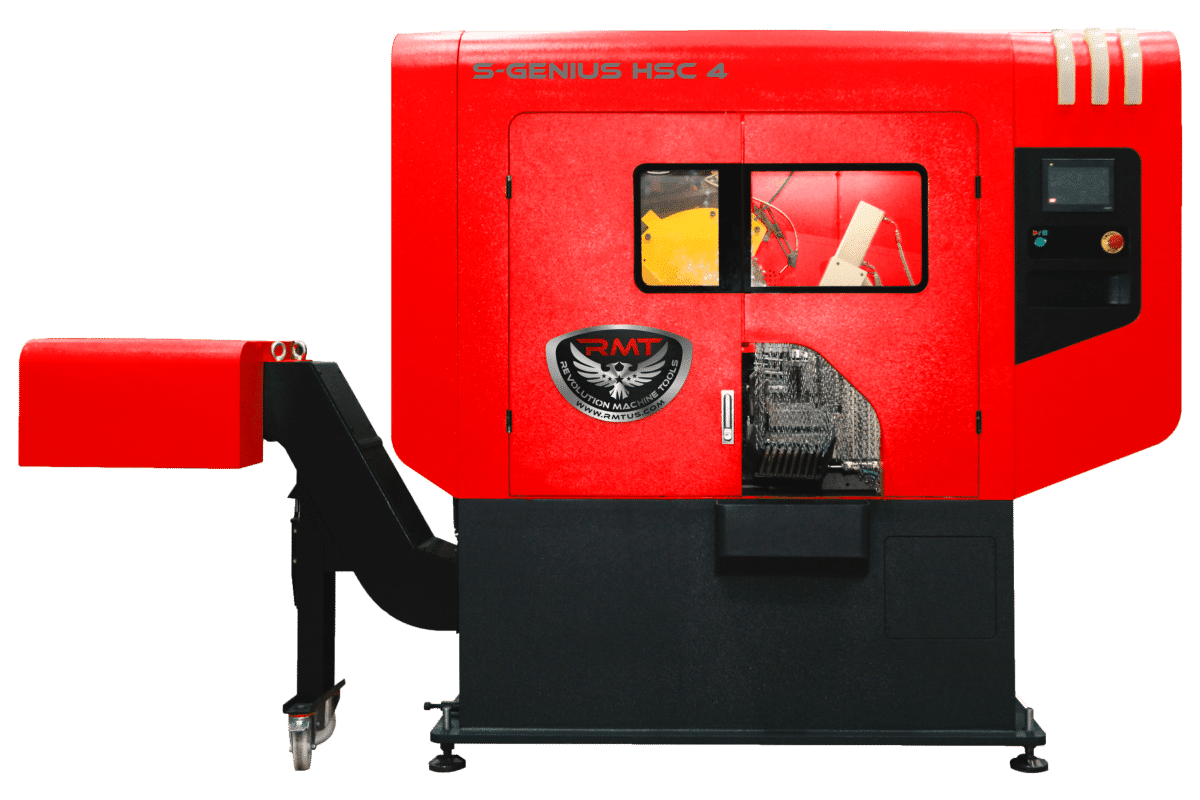

Revolution Machine Tools Automatic 15HP Servo Feed Cold Saw S-GENIUS HSC4

Revolution Machine Tools Automatic 15HP Servo Feed Cold Saw S-GENIUS HSC4 is a Revolution Machine Tools product in the Cold Saws collection.

Product Details

• Cutting Speeds: 131 – 918 ft/min
• Circle Saw Size: 14” x 0.09”
• Hydraulic Motor: 3 HP
• Capacity at 0°
• Description
• Mass production in continuous operation is done by S-GENIUS HSC Cold Saws, when producing cut-off pieces of steel and non-ferrous metals. They are designed to be used with TCT (Carbide Tipped) circular saw blade in order to cut solid bars in high speed and excellent accuracy.

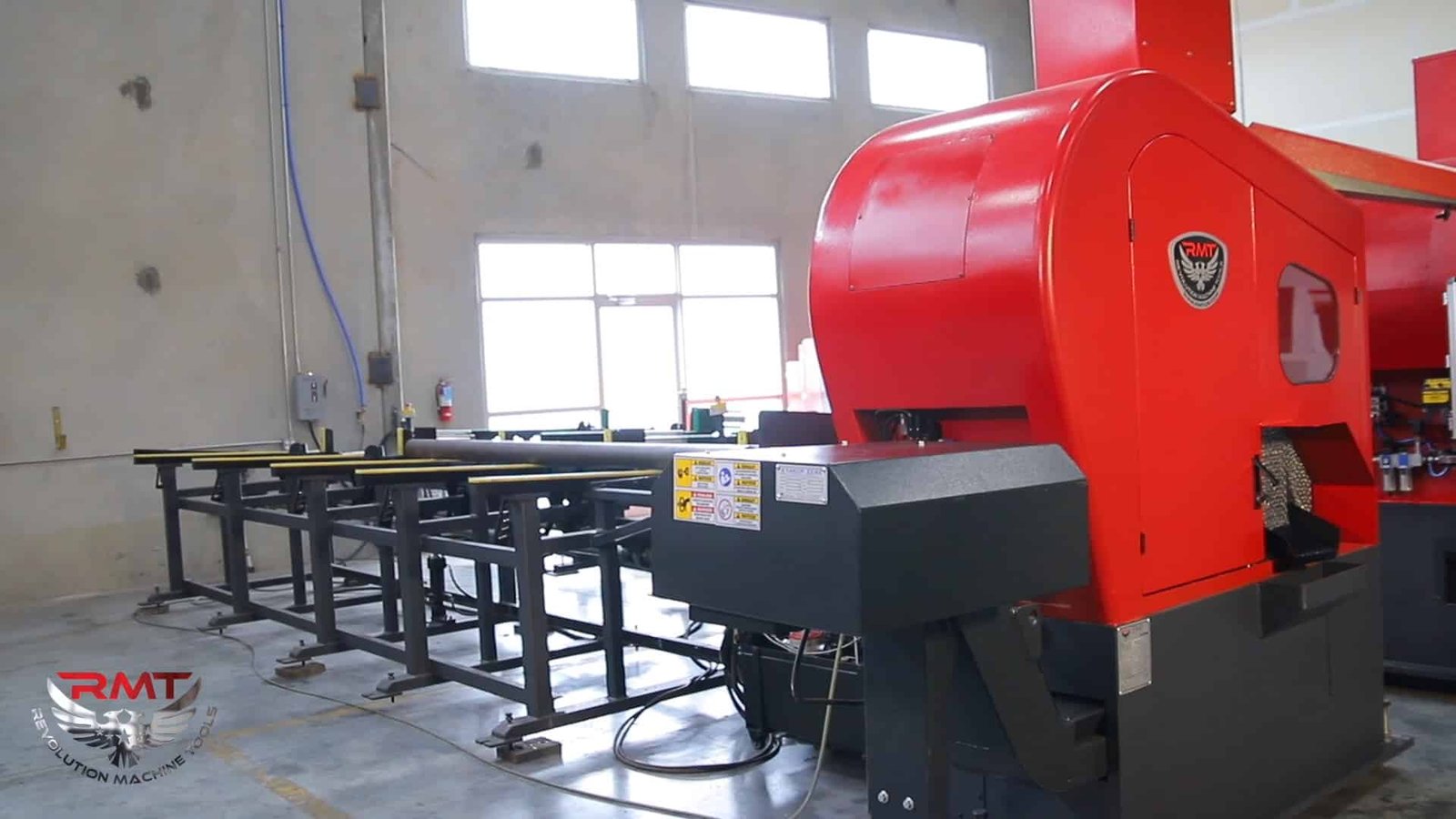

• It is also suitable for HSS blades to cut tubes. S-GENIUS HSC Cold Saws come standard with 31″ (800m) index stroke servo feeding and 20 feet (6 meters) automatic feeding system/loader. These Cold Saws are for large scale production.
• Features
• Control panel
• Chip conveyor
• Hydraulic clamp
• Speed controller
• Cover switch
• Specifications
• Capacity at 0° Feeding Stroke per Stroke: 31.4” (800 mm) Round Cutting Capacity: 0.78”-4” (20-100 mm) Vice Opening Max: 4.7” (120 mm)
• Feeding Stroke per Stroke: 31.4” (800 mm)
• Round Cutting Capacity: 0.78”-4” (20-100 mm)
• Vice Opening Max: 4.7” (120 mm)
• Cutting Speeds: 131 – 918 ft/min (40-280 m/min)
• Circle Saw Size: 14” x 0.09” (360 2.5t mm)
• Main Motor: 15 HP (11 kW)
• Hydraulic Motor: 3 HP (2.2 kW)
• Weight: 7,606 lbs. (3,450 kg)
• Machine Dims. (L x W x H): 96.8” x 102.7” x 92.9” (2460 mm x 2610 mm x 2360 mm)
• Options
• Micro spray cooling
• Dropsa air/oil clean lubrication

Specifications

• Manufacturer: Revolution Machine Tools
• SKU: S-GENIUS HSC4
• Shipping Method: Flatbed
• Weight: 7,806 lb
• Dimensions: 102 × 108 × 98 in
• Country of Origin: Turkey
• Warranty: 1 Year (Parts)
