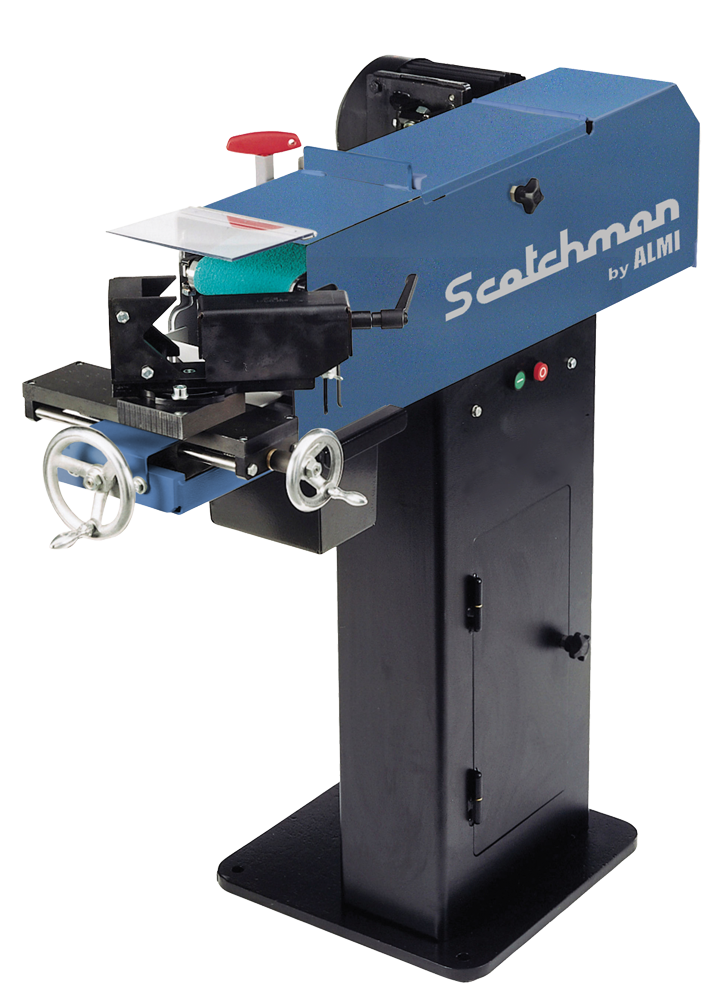

Scotchman AL150 460V Three Phase Abrasive Tube and Pipe Grinder Notcher A040.00014

Scotchman AL150 460V Three Phase Abrasive Tube and Pipe Grinder Notcher A040.00014 is a Scotchman product in the Notchers collection.

Product Details

• Grinding Capacity: 1/2" to 4-1/2" O.D
• Angle Range: Straight=90° to 20°
• Motor: 6 hp, 460 Volt, Three Phase
• Manufactured in the Netherlands with a 3-year parts warranty
• Features
• Produces gap-free fits ready for welding
• Grinds notches of any desired angle from 90 degrees to 20 degrees in seconds
• Smooth operation with minimal vibration
• Two axis precision crossfeed table with both handwheels and hand lever feed handle
• Heavy duty frame and base construction
• Base has one built-in rack to store mandrels
• Mandrel centerline adjustment
• One vise holds all pipe and tube sizes
• Top-mounted deburring surface creates a multifunctional machine
• Easy setup with vise graduated in degrees
• 17 Mandrel sizes available to ensure correct gap-free fits
• Supplied with 2 belts and two pipe mandrels (1-1/4" & 1-1/2")
• Tool-free belt and mandrel change over for easy transition
• Warranty: Three years on parts
• Manufactured in the Netherlands
• Specifications
• Profile Applications: All: Round, Square, Rectangle or Flat
• Belt: 6" x 78-3/4"
• Speed: 3,420 RPM
• Operation: Lever & Handwheel
• Dimensions (L x W x H): 57" x 47-1/4" x 33-1/2"
• Shipping Weight (may vary): 615 lbs
• Available Accessories
• Abrasive Belts (6")
• Mandrels
• Back Gauge

Specifications

• Manufacturer: Scotchman
• SKU: A040.00014
• Shipping Method: LTL Freight
• Weight: 615 lb
• Dimensions: 59 × 47 × 30 in
• Country of Origin: Netherlands
• Warranty: 3 Years (Parts)
