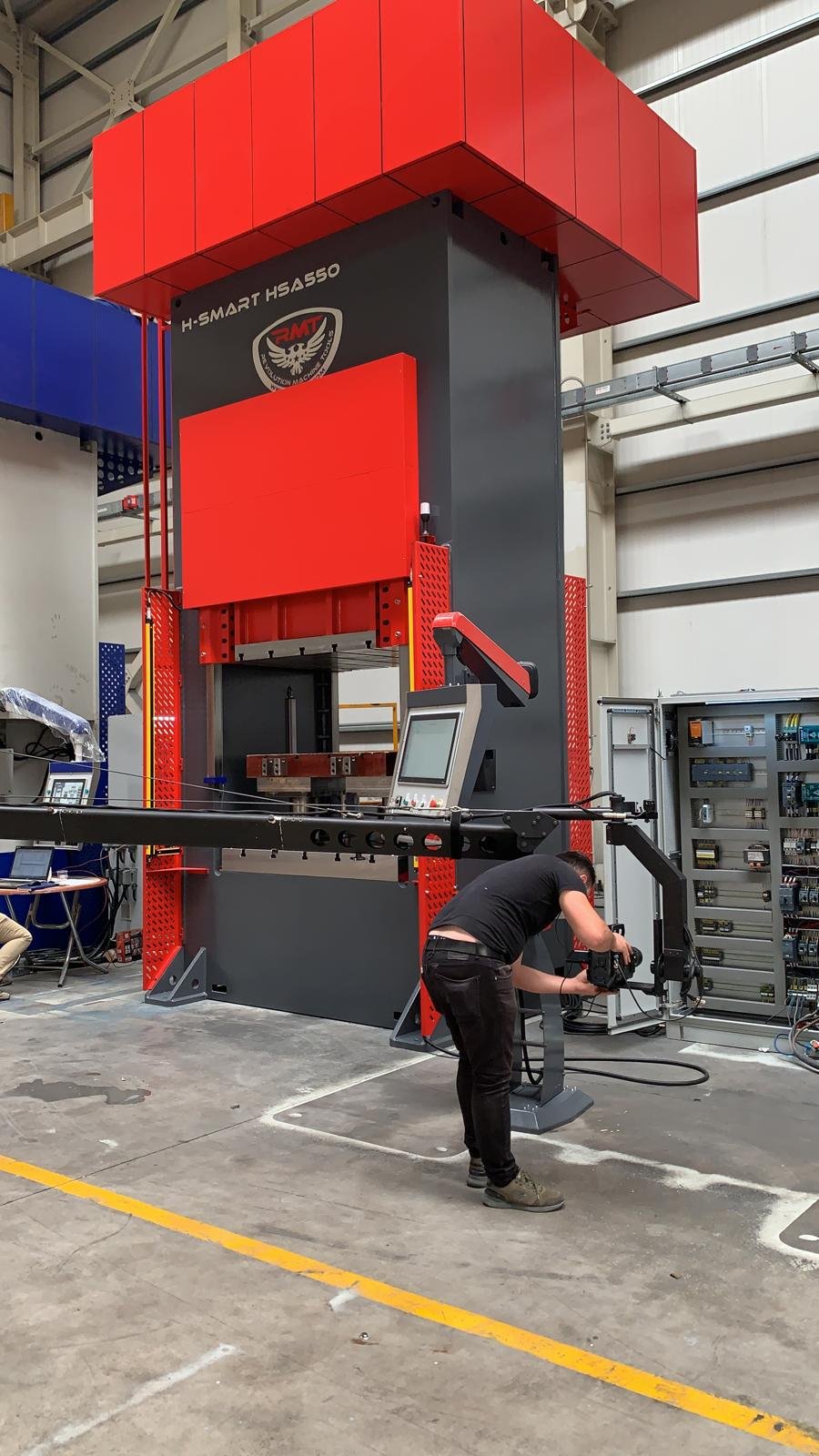

Revolution Machine Tools 40HP 550 Ton H-Frame Hydraulic Deep Drawing Press H-SMART HSA 550

Revolution Machine Tools 40HP 550 Ton H-Frame Hydraulic Deep Drawing Press H-SMART HSA 550 is a Revolution Machine Tools product in the Hydraulic Presses collection.

Product Details

• Daylight: 48”
• Stroke: 40”
• Open Height: 8”
• Pump: 31 Gallons
• Description
• RMT H type presses are produced to up to 5500 Tons capacity and can be customized and produced according to the customer’s needs and requirements. H type presses can be used to bend, shape, hole punch, cut, and straighten according to the die cut used. If required, die cut loading devices or other die cut installation solutions are recommended to install the die cut.
• High precision machined frame and tables allow you to receive precise products in your production.
• Features
• Chrome plated cylinder
• Steel welded frame
• Servo proportional hydraulic system
• HMI touch screen control panel with RMT height suspension arm
• Safety cover and light barrier
• Two hand button control
• Adjustable variable pressure on HMI touch screen control panel
• Adjustable stroke on HMI touch screen control panel
• Oil pressure gauge
• Lubrication
• Air cooling
• T-slotted table
• Common off the shelf components, typically of German or USA origin (Rexroth, Parker, Sneiders, and Seimens)
• Specifications
• Ton: 550
• Table Size (L x W): 47” x 59”
• Motor Power: 40 HP
• Down Speed: 234” I.P.M.
• Return Speed: 330” I.P.M.
• Working Speed: 24” I.P.M.
• Machine Dims. (L x W x H): 102” x 98” x 193”
• Weight: 50,706 lbs.
• Options
• Ejector cylinder
• Variable speeds
• Tool loading device
• Die sets
• Cushion Tonnage: 220 Stroke: 12”
• Tonnage: 220
• Stroke: 12”
• T-Slots
• Heated platens
• Custom open height, bed size, stroke

Specifications

• Manufacturer: Revolution Machine Tools
• SKU: H-SMART HSA 550
• Shipping Method: Flatbed
• Weight: 57,520 lb
• Dimensions: 107 × 103 × 198 in
• Country of Origin: Turkey
• Warranty: 1 Year (Parts)
