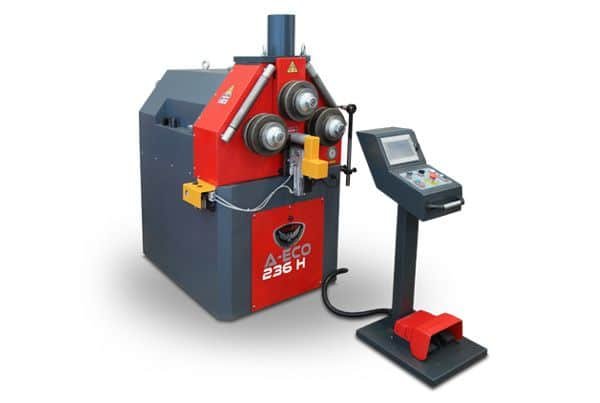

Revolution Machine Tools 2HP Motorized & Hydraulic Angle Roll Bender A-ECO 236H

Revolution Machine Tools 2HP Motorized & Hydraulic Angle Roll Bender A-ECO 236H is a Revolution Machine Tools product in the Roll Benders collection.

Product Details

• Shaft Diameter: 2.36”
• Roll Diameters: 8.46”
• Turning Speed: 13 FPM
• Max Section Modulus: 0.061 in3
• Description
• The A-ECO Series motorized angle rolls are designed for bending small parts with low operation cost. It is also designed for ease of use and to take up minimal floor space. This machine is well suited for auto body and repair, 4×4 parts, HVAC, plumbing, artists, and many other businesses needing to create small precision parts.
• The foundation of all RMT Angle Rolls is a solid, industrial strength frame precisely formed and precision welded made from mill-certified, high-yield steel. As a result, RMT Angle Rolls perform accurately and reliably year after year. RMT is so confident in their frames that they offer a 10-year warranty with their standard machines. The inner workings are heat treated and induction hardened to provide long life and consistent repeatability in forming parts.
• RMT machines are designed with state-of-the-art technologies that provide unparalleled accuracy and precision. This is the result of their world-class Research and Development departments that has been constantly perfecting their machines for decades, allowing them to consistently outperform their competitors’ machines year after year.
• If it takes you three times as long to fix your parts as it did to create them, you have the wrong machine. Even a half decent machine can bend a part, but it takes a quality machine to be able to bend reliably and repeatedly without having to take further time and effort to “fix” your parts. RMT angle rolls are engineered to exact specifications to provide real value to your operation.
• If only bending I beams was as easy as Superman makes it look. It isn’t. However, with RMT angle rolls you will have the ability to accurately and easily bend I beams, H beams, and just about any other structural steel shape. RMT’s engineers have really put time and effort into creating the right solution for structural steel.
• RMT Angle Roll Features
• Special rolls for tubes, profiles, bars, angles, channels etc.
• Dust protected housing system
• 1 set hardened and hole ground high strength steel rolls
• External length measurement system
• All three rolls are driven through a precision gear box and hydraulic motors
• Steel construction and stress-relieved monoblock frame
• Hydraulic adjustable turning speed
• Digital read-out or NC control systems
• Portable control unit
• Three-axis hardened side supports with mechanical or hydraulic movement
• Standard Features
• Steel welded construction frame
• 3 Rolls are motor driven
• Hardened shafts from special steel material
• Top roll hydraulic movable up-down
• Horizontal or vertical working position
• Standard rolls
• Guide rolls
• Brake motor equipped for precision bending
• Mobile control panel
• Motorized & Hydraulic Angle Roll
• Horizontal Vertical Profile
• Hydraulic Top Roll Adjustment
• Includes Universal Tooling
• Up to 3″ SCH Pipe Bending Capacity to 63″ Internal Diameter
• Specifications
• Motion: Upper roll moves by hydraulic cylinder, side rolls are fixed
• Rotation: All rolls driven by one AC motor+gearbox
• Motor power: 2 HP
• Dimensions: 40” x 56” 65”
• Weight: 2,095 lbs.
• Solid Square 32” min. internal diameter: 2" x 2" 16” min. internal diameter: 3/4” x 3/4” Rectangle (w/ 24” min. internal diameter): 4" x 1" Round (w/ 32” min. internal diameter)*: Ø2"
• Square 32” min. internal diameter: 2" x 2" 16” min. internal diameter: 3/4” x 3/4”
• 32” min. internal diameter: 2" x 2"
• 16” min. internal diameter: 3/4” x 3/4”
• Rectangle (w/ 24” min. internal diameter): 4" x 1"
• Round (w/ 32” min. internal diameter)*: Ø2"
• Flat-Along Edge (w/ 47” min. internal diameter): 3" x 3/4"
• Angle Leg Out (w/ 40” min. internal diameter)*: 2-3/4" x 2-3/4" x 1/4" In (w/ 48” min. internal diameter)*°: 2-3/4" x 2-3/4" x 1/4"
• Out (w/ 40” min. internal diameter)*: 2-3/4" x 2-3/4" x 1/4"
• In (w/ 48” min. internal diameter)*°: 2-3/4" x 2-3/4" x 1/4"
• T Section Leg Down (w/ 40” min. internal diameter): 3" x 3" x 3/8" Out (w/ 40” min. internal diameter): 3" x 3" x 3/8" In (w/ 48” min. internal diameter): 3" x 3" x 3/8"
• Down (w/ 40” min. internal diameter): 3" x 3" x 3/8"
• Out (w/ 40” min. internal diameter): 3" x 3" x 3/8"
• In (w/ 48” min. internal diameter): 3" x 3" x 3/8"
• Tubing Square (w/ 63” ∞ min. internal diameter)*: 2-3/4" x 2-3/4" x 0.12” Rectangle (w/ 56” ∞ min. internal diameter)*: 3" x 1‐1/2" x 0.12" Round 20” ∞ min. internal diameter*: Ø2" x 0.08" 63” ∞ min. internal diameter*: Ø4" x 0.08"
• Square (w/ 63” ∞ min. internal diameter)*: 2-3/4" x 2-3/4" x 0.12”
• Rectangle (w/ 56” ∞ min. internal diameter)*: 3" x 1‐1/2" x 0.12"
• Round 20” ∞ min. internal diameter*: Ø2" x 0.08" 63” ∞ min. internal diameter*: Ø4" x 0.08"
• 20” ∞ min. internal diameter*: Ø2" x 0.08"
• 63” ∞ min. internal diameter*: Ø4" x 0.08"
• Schedule 40 Pipe 20” ∞ min. internal diameter*: 1" SCH 40 63” ∞ min. internal diameter*: 3" SCH 40
• 20” ∞ min. internal diameter*: 1" SCH 40
• 63” ∞ min. internal diameter*: 3" SCH 40
• C Section Leg Out (w/ 30” min. internal diameter)*: 4” In (w/ 46” min. internal diameter)*: 4”
• Out (w/ 30” min. internal diameter)*: 4”
• In (w/ 46” min. internal diameter)*: 4”
• *Needs use of special rolls.
• °Needs use of special support rolls.
• ∞ May be changed according to deformation.
• Options
• Pipe / Tube bending rolls
• Profile bending rolls
• Angle bending rolls
• Digital Read-Out
• Lateral angle guides
• Stairway bending attachment
• NC control

Specifications

• Manufacturer: Revolution Machine Tools
• SKU: A-ECO 236H
• Shipping Method: LTL Freight
• Weight: 2,295 lb
• Dimensions: 45 × 61 × 70 in
• Country of Origin: Turkey
• Warranty: 10 Years (Parts)
