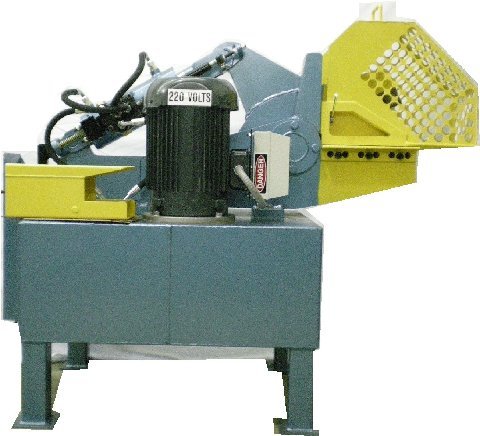

R.E.S. Corp Hydraulic Alligator Shear 1200

R.E.S. Corp Hydraulic Alligator Shear 1200 is a Recycling Equipment Solutions Corp. product in the Shears collection.

Product Details

• Shear Length: 12 1/2"
• Jaw Fully Open: 18 Cuts Per Minute
• Maximum Cutting Force: 110 Tons
• Weight: 2000 lbs
• Description
• R.E.S. Shears are 100% made in the United States
• Lifetime Warranty on the Main Bearing Assembly
• 10 HP T.E.F.C. U.S. Motor
• S.A.E. Hydraulic Pump
• Standard U.S. Style Hydraulic Cylinder
• Standard JIC Hydraulic Fittings
• 50 Gallon Oil Reservoir
• Submerged Oil Pump Means No Dry Starts & a Longer Pump Life
• 6-Inch-Wide Cutting Deck
• Adjustable Safety Guard No Tl Required
• Includes Back Guard to Protect Control Cable & Hydraulic Cylinder
• Built on Heavy Duty Square Legs
• 4 Sided Deep Hardened Cutting Blades For Extended Blade Life
• Specifications
• Blade Length: 12"
• Blade Opening Tip To Tip: 7 1/4"
• Motor Size: 10 HP | 220V or 440v / 3ph
• Jaws Fully Open: 18 Cuts Per Minute
• Jaws 1 1/2" Open: 70 Cuts Per Minute
• Dimensions (L x W x H): 54" x 28.25" x 50.50"
• Shear Height: 34"
• Foot Pedal Control: Automatic/Single Stroke
• Cutting Capacity Mild Steel
• Round Bar: 1 7/8" Dia.
• Angles: 3" x 3/8"
• Flats: 6" x 5/16"
• T Section: 3" x 3" x 3/8"
• I Beams: 4" x 1 1/2" x 5 Ib.
• Square Bar: 1 1/2"
• Channels: 4" x 2" x 8 Ib.
• Plate: 12" x 3/8"

Specifications

• Manufacturer: Recycling Equipment Solutions Corp.
• SKU: 1200
• Shipping Method: LTL Freight
• Weight: 2,100 lb
• Country of Origin: United States of America
• Warranty: 1 Year (Parts)
