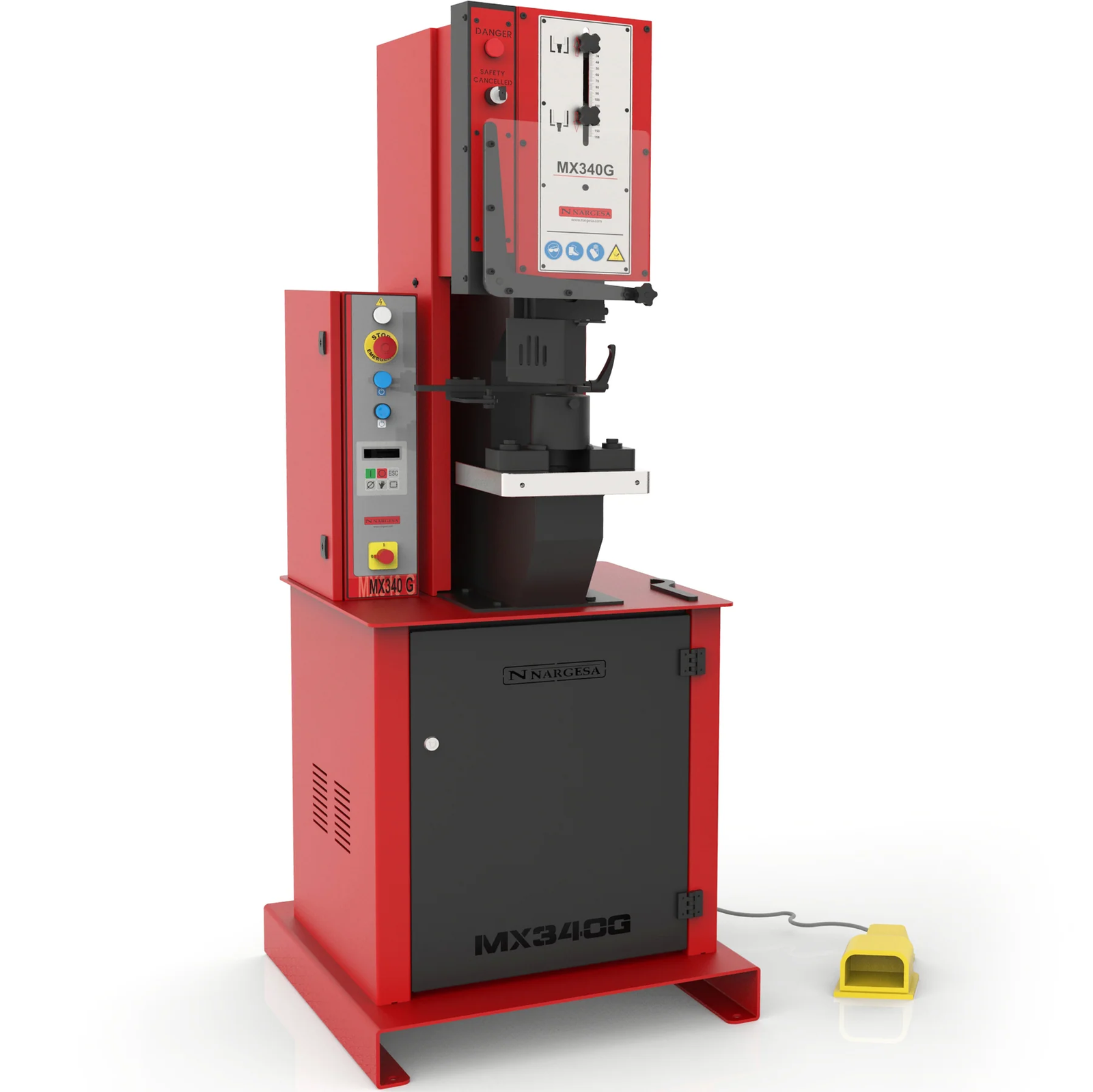

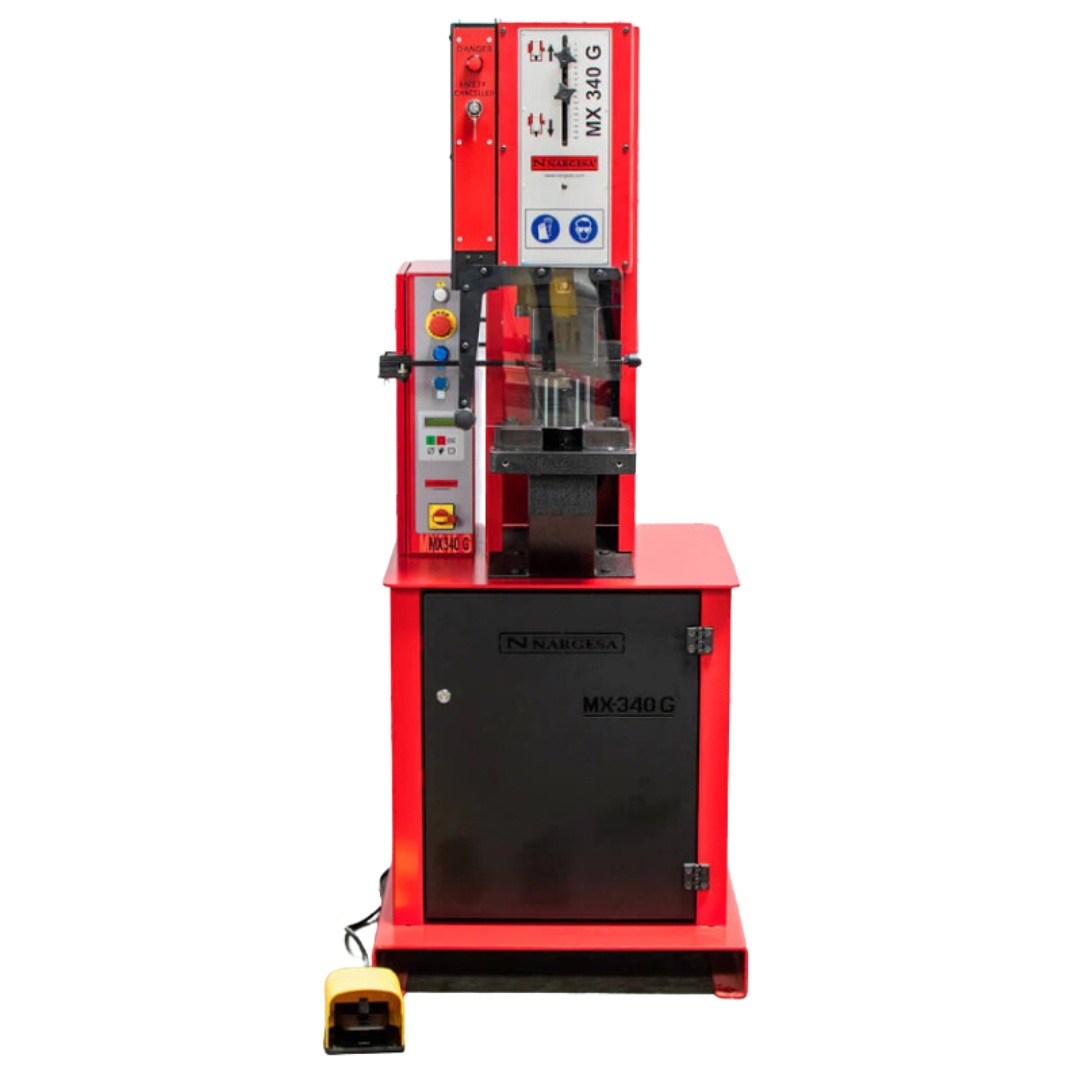

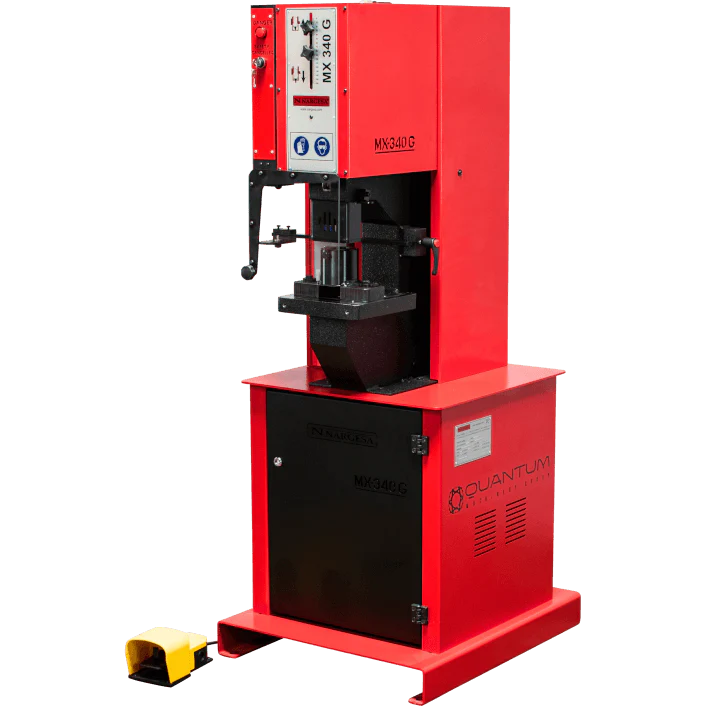

Quantum Machinery 40 Ton 220V Single Phase Industrial Hydraulic Ironworker MX340G

Quantum Machinery 40 Ton 220V Single Phase Industrial Hydraulic Ironworker MX340G is a Quantum Machinery Group product in the Ironworkers collection.

Product Details

• Working Speed: 0.27” per second
• Return Speed: 0.36” per second
• Gooseneck (Neck): 7”
• Punch Displacement: 3.9”
• Description
• The QUANTUM NARGESA MX340G Hydraulic Ironworker (Punching Machine) is widely known for its extensive versatility. This unit can perform numerous working functions, such as punching materials (like sheet metal, flat bar, tube, angle, U profile, T profile, UPN, IPN, etc..) Bending, Cutting, Inlaying, Tube Notching, Embossing, and it doesn’t end there. The MX340G can be adapted to be used with tooling of any kind, even tooling that is made by you, the customer. If you’re looking for a versatile, efficient, and easy to use workhorse, then the MX340G is an essential piece of equipment for your metalworking shop floor.
• Quantum Machinery’s MX Series Ironworkers stand out in many ways, but they are literally like no other Ironworker on the market, because of its 7” goose neck, the 3.93”displacement and the wide working table that allows you to fit all kinds of tooling. It is not uncommon for customers to make their own tooling, since it is so easy to adapt their custom tooling to the MX340G.
• Its versatility and features makes it a fast payback machine. It carries out the same functions of 5 different machines. All Nargesa Hydraulic Ironworkers are equipped with Nargesa’s punching tool base that includes the fitting nut for punches and the base holder for dies.
• Features
• The Displacement Adjustment allows for an increase in productivity
• There is no maximum dimension for punching
• Palletized Base to easily move the MX340G around
• Swinging front safety protection
• Start/Activation with safety pedal
• Digital display
• Parts and strokes counter
• Alarm diagnosis
• Punching Thickness Specs/Capacities
• Material Thickness: 0.50” Thick Round Punch: 0.80” Diameter Square Punch: 0.65” x 0.65”
• Round Punch: 0.80” Diameter
• Square Punch: 0.65” x 0.65”
• Material Thickness: 0.39” Thick Round Punch: 1.10” Diameter Square Punch: 0.80” x 0.80”
• Round Punch: 1.10” Diameter
• Square Punch: 0.80” x 0.80”
• Material Thickness: 0.31” Thick Round Punch: 1.18” Diameter Square Punch: 0.90” x 0.90”
• Round Punch: 1.18” Diameter
• Square Punch: 0.90” x 0.90”
• Material Thickness: 0.19” Thick Round Punch: 1.80” Diameter Square Punch: 1.50” x 1.50”
• Round Punch: 1.80” Diameter
• Square Punch: 1.50” x 1.50”
• Specifications
• Hydraulic Power: 40 Tons
• Max Height: 8.6”
• Tooling Support Table: 9.6” x 10.4”
• Extremely Fast Tooling Changeover: 30 seconds max
• Motor Power: 3HP / 2.2 kW
• Electrical Requirements: 220V / Single Phase / 60Hz
• Machine Dimensions: 27.5” x 31.5” x 71”
• Machine Weight: 1,360 lbs
• Optional Add-Ons
• Punches
• Dies

Specifications

• Manufacturer: Quantum Machinery Group
• SKU: MX340G(1PH)
• Shipping Method: LTL Freight
• Weight: 1,500 lb
• Dimensions: 32 × 36 × 76 in
