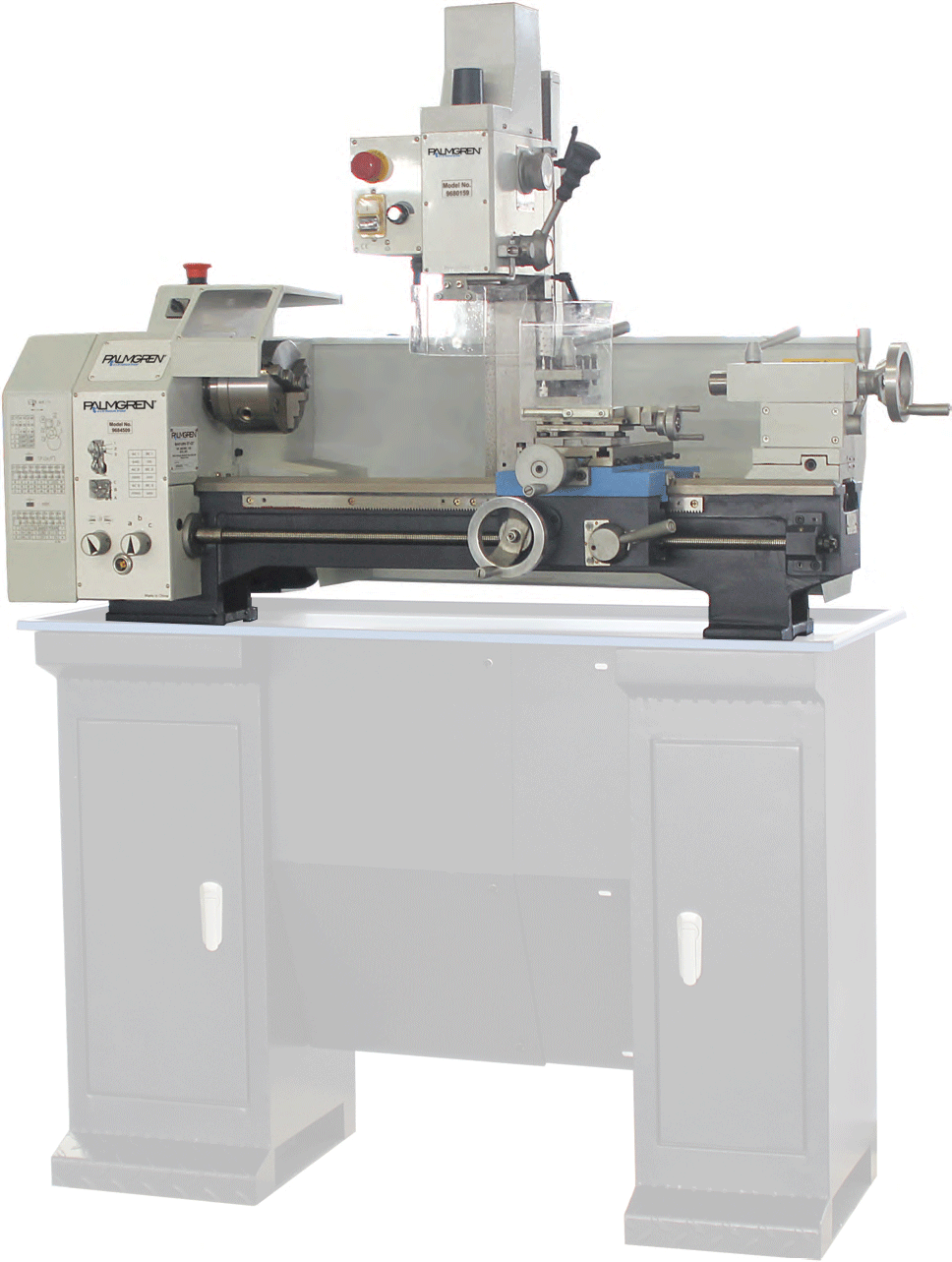

Palmgren 9” x 20” Combination Bench Lathe and Mill 9680213

Palmgren 9” x 20” Combination Bench Lathe and Mill 9680213 is a Palmgren product in the Lathes collection.

Product Details

• Lathe Motor: 1PH – 115V – 13.6 Amps – 1PH – 60 Hz
• Height of Centers: 4-3/4"
• Max Turning Diameter: 9-7/8"
• Distance Between Centers: 20"
• Description
• Palmgren’s combination 9˝ bench engine lathe and gear head mill delivers the precision, power and versatility to handle a wide range of turning, milling and drilling operations normally found in much larger machines.
• Heavy cast iron construction, smooth power transmission with precision thrust and ball bearings in the head stock and spindles, hardened and ground ways all designed to go give you years of trouble-free, precise turning, milling and hole making machining. Built and inspected to the DIN 8606 toolmakers precision lathe standard assuring accuracy and consistent performance. The all gear drive transmission on the mill delivers full power at any speed driving the cutting tools at nearly 100% of available horsepower and torque. With such a wide range of versatility and features, this all-purpose combination lathe/mill is one of the most function manual machine centers that can operate in all types and sizes of shops.
• Specifications
• Machine Weight: 227.08 lb
• Spindle
• Spindle Speed: 125 to 2000 RPM
• Number of Speeds: 6
• Spindle Taper: MT3
• Spindle Hole: 1"
• Chuck Size: 5"
• Slide
• Bed Width: 5-7/8"
• Travel Top Slide: 19-1/2"
• Compound Slide Travel: 3-9/16"
• Distance Between Center and Compound Table: 3"
• 4 Position Tool Post Height: 3-3/4"
• Tailstock
• Tailstock Taper: MT2
• Tailstock Sleeve Travel: 2-1/2"
• Longitudial Feed: 0.003" 0.004" 0.006" 0.008 0.012" 0.016"
• Pitch – (metric/inches) (TPI): 0.2 – 4 / 8 – 56
• Dimensions / Weight
• Height: 33-1/2"
• Length: 49
• Depth: 23
• Shipping Weight: 440.93 lb
• Mill Specifications
• Motor: 5/8HP – 115V – 10Amps -1PH – 60Hz
• Drilling Capacity: 5/8"
• Miling Capacity of End Mill Cutter: 3/4"
• Milling Capacity of Insterted Tooth Cutter: 2-1/2"
• Working Radius: 6-3/4"
• Spindle Holding Fixture: MT2 3/8"-16 Draw Bar
• Spindle Travel: 2"
• Drill – Mill Head
• Swivel of the Milling Head: + / – 90°
• Gear Stages: 2
• Low Range: 100 – 1500
• High Range: 200 – 3000
• Z-Axis Travel: 10-1/2"
• Cross Table
• Table Length: 10"
• Table Width: 4-3/4"
• Y-Axis Travel: 4-21/64"
• X-Axis Travel: 3"
• T-Slot Size/Distance/Qty: 5/8"

Specifications

• Manufacturer: Palmgren
• SKU: 9680213
• UPC: 726896802138
• Shipping Method: LTL Freight
• Weight: 445 lb
• Dimensions: 49 × 30 × 40 in
• Warranty: 3 Years (Parts)
