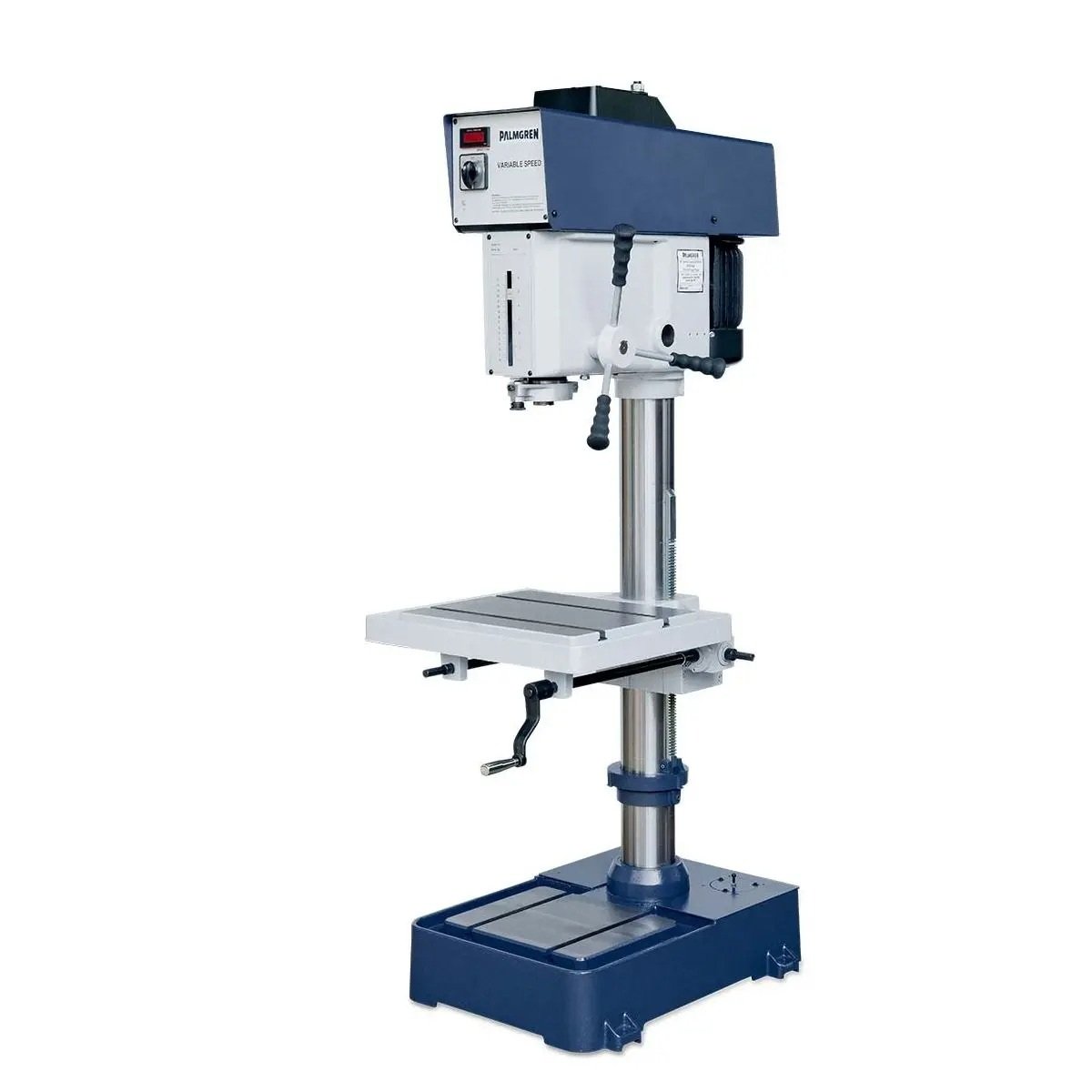

Palmgren 20″ Variable Speed Single Phase Belt Drive Drill Press 9680226

Palmgren 20″ Variable Speed Single Phase Belt Drive Drill Press 9680226 is a Palmgren product in the Drill Presses collection.

Product Details

• Drilling Capacity in Cast Iron: 1-1/2"
• Max. Spindle To Base: 47"
• Max. Spindle to Table: 27"
• Spindle Travel: 6"
• Description
• Palmgren’s 20” Variable Speed Drill Presses allow the user to dial into the optimal spindle RPM for any material or tooling combination. While the machine is running, the simple hand wheel adjustments and digital RPM readout makes speed changes a breeze. The heavy-duty cast-iron construction increases the machines’ accuracy and rigidity in any drilling application.
• Features
• Front mounted positive control depth stop, oversized head construction provides for an extended quill travel of 4-1/2”
• Large, ergonomic down feed hand grips designed for end user comfort during operation
• Oversized 3” quill diameter
• Front face LED spindle speed readout
• Worktable can rotate 360° around the machine column
• Precision ground base work surface with t-slots for large workpieces
• Side mounted hand wheel for instant speed changes
• Specifications
• Column Diameter: 4-1/2"
• Country of Origin: TW
• Drill Press Model: Floor Model
• Drill Press Type: Variable Speed
• Motor HP: 2
• Overall Dimensions (LxWxH): 36" x 27" x 78"
• Phase: Single
• Quill Diameter: 3"
• Speed Range: 300 – 2,000 RPM
• Spindle Taper: MT3
• Stand work surface (LxW): 22" x 18.5"
• Swing: 20.8"
• Voltage: 115/230V
• Warranty: 3 Year
• Working surface base L x W: 27" x 19"
• UPC: 726896802268
• Unit of Measure: EA
• Product Height (in): 75
• Product Length (in): 37.5
• Product Width (in): 25.5
• Product Weight (lbs): 750

Specifications

• Manufacturer: Palmgren
• SKU: 9680226
• UPC: 726896802268
• Shipping Method: LTL Freight
• Weight: 750 lb
• Dimensions: 38 × 26 × 75 in
• Country of Origin: Taiwan
• Warranty: 3 Years (Parts)
