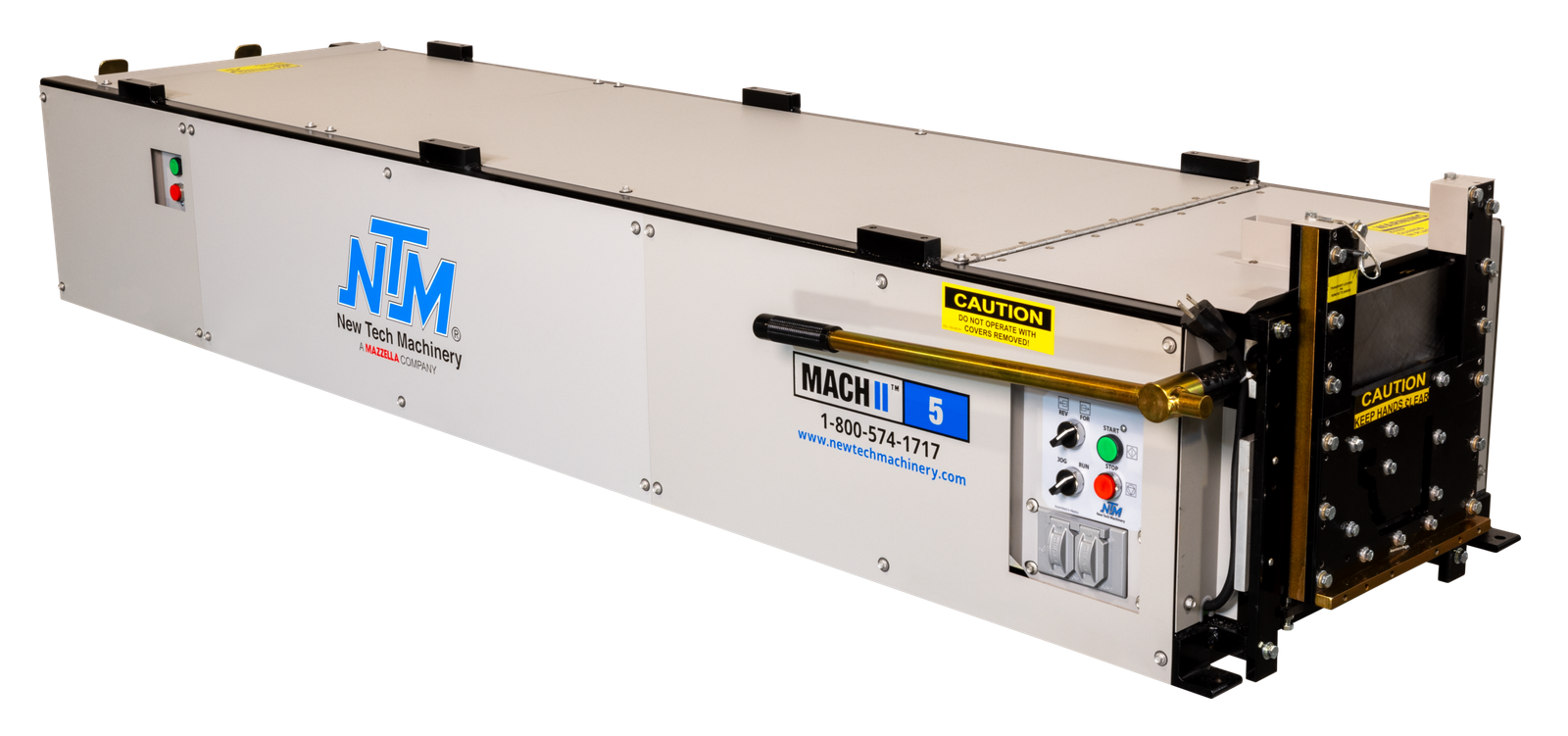

New Tech Machinery Mach II 5” Gutter Machine Basic Configuration with Shear MG5

New Tech Machinery Mach II 5” Gutter Machine Basic Configuration with Shear MG5 is a New Tech Machinery product in the Metal Forming & Shaping collection.

Product Details

• Speed: 50 ft./min (15m/min) Approx.
• Material Width: 5” Gutter: 11-3/4” to 12-3/8” (300mm to 315mm)
• Drive: Electrically Driven Polyurethane Rollers
• Electric Motor: 3/4 HP, 110 VAC, 60 Hz, 1 Ph, 11 AMPs
• Description
• The award-winning MACH II has taken the seamless gutter industry to a whole new level. The only way to compete in the gutter-forming business is to own the MACH II. It’s the most copied machine in the industry, so don’t get stuck with an imitation! Offered with the industry’s best warranty.
• *Basic machine with shear (no reels, reel stands, or cradles)
• Standard Features
• Polyurethane Drive Rollers
• Stainless Steel Forming Rollers
• Push Button RUN/JOG Controls at Entry & Exit Ends
• Welded Tubular Steel Frame
• Forward Pulling, Easy Cut Shear for Accuracy
• Industry’s Best Warranty
• Power Interruption Safety Circuit
• Specifications
• Length: 8’ (2.4m)
• Width: 2’ (.6m)
• Height: 4’ (1.2m)
• Weight: 1,000 lbs. (454kg)
• Materials Formed: Painted Steel: 30 ga. to 24 ga. (.3mm to .6mm) (painted, Galvalume, coated galvanized) Painted Aluminum: .019″ to .032″ (.5mm to .8mm) Copper: 16 oz. to 20 oz. 3/4 Hard (.5mm to .7mm)
• Painted Steel: 30 ga. to 24 ga. (.3mm to .6mm) (painted, Galvalume, coated galvanized)
• Painted Aluminum: .019″ to .032″ (.5mm to .8mm)
• Copper: 16 oz. to 20 oz. 3/4 Hard (.5mm to .7mm)
• Shear: Manually Powered, Hardened Tool Steel Blades & Shear Dies
• Max Coil Weight: Recommended maximum coil weight is 1000 lbs. for the reel and 400 lbs. for the cradle
• Max Outside Diameter for Coil: 30″ (762mm) on reel
• Available Options & Accessories
• Turnstile reel stand
• 16" ID adjustable width Reel (maximum weight 1,000 lbs.)
• 20" ID adjustable width reel (maximum weight 1,000 lbs.)
• Transfer rack for reel stands
• 5" or 6" cradle
• Single run-out stand
• Set of three run-out stands
• 12-Volt system
• CE Certified wiring
• Riser pad to raise machine 6" – 8"
• Riser pad to raise machine 10" – 12"
• Remote, 4-button start / stop / forward / reverse for 110 Volt – 220 Volt
• Remote, 4-button start / stop / forward / reverse for 12 Volt DC
• Hook assembly for 5", 6" or 5"/6" machine
• Bottom bead option (combo machine requires both BB5 and BB6) ** Not available for economy machines
• 5" crate
• 6" and 5"/6" combo crate
• 5” Gutter Machine Cover Kit
• 6” & 5/6” Gutter Machine Canvas Cover Kit
• Cart for 5", 6", or 5"/6" gutter machine with casters (two are locking)
• EZ-Counter Computerized Length Controller ** Flange / shear options quoted upon request

Specifications

• Manufacturer: New Tech Machinery
• SKU: MG5
• Shipping Method: LTL Freight
• Weight: 1,100 lb
• Dimensions: 106 × 34 × 58 in
• Country of Origin: United States of America
• Warranty: 3 Years (Parts)
