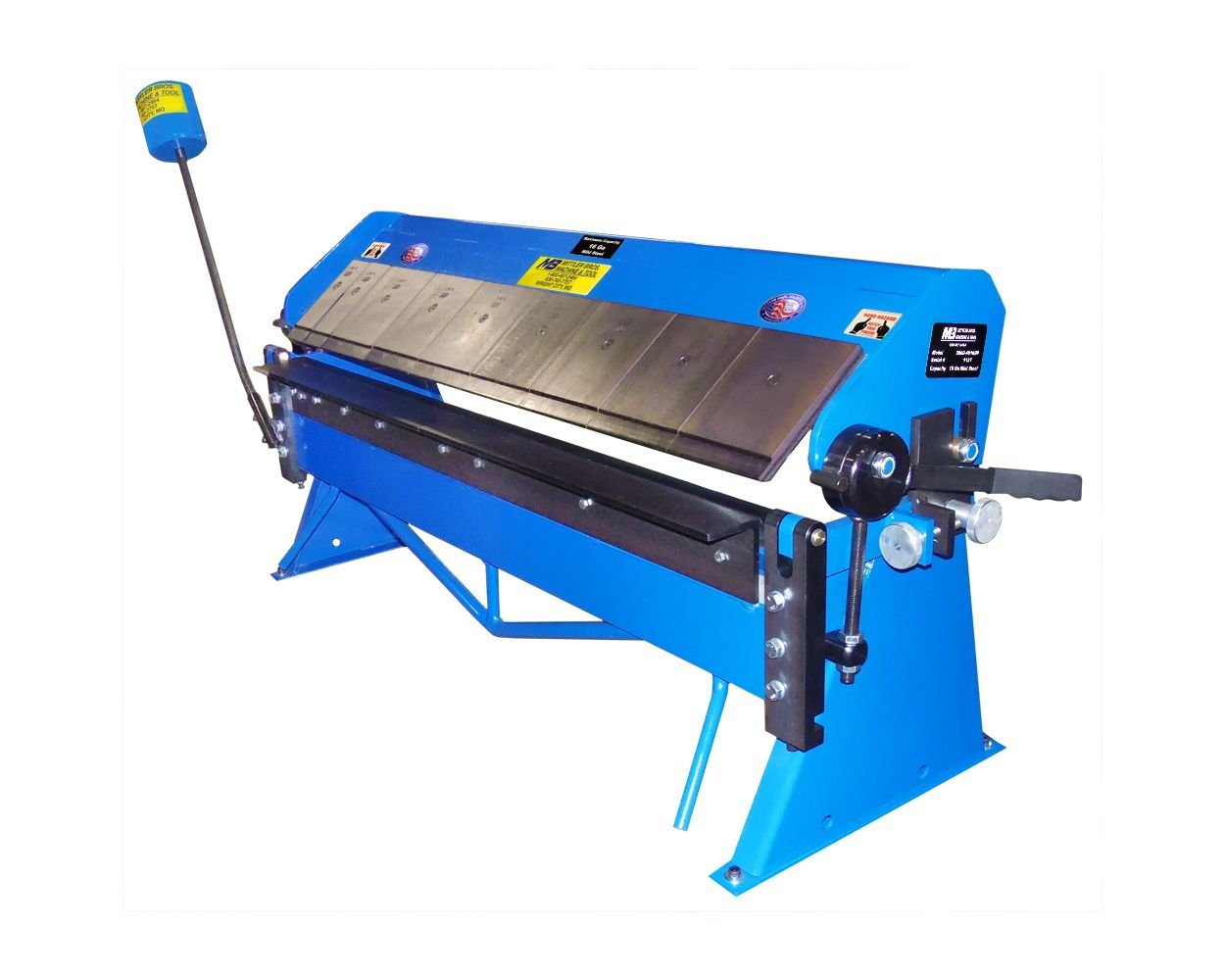

Mittler Bros 48” Ultimate 16 Gauge Box & Pan Brake with 1/4” Radius Finger Set 2800-48-16-R

Mittler Bros 48” Ultimate 16 Gauge Box & Pan Brake with 1/4” Radius Finger Set 2800-48-16-R is a Mittler Bros product in the Sheet Metal Brakes collection.

Product Details

• 1/4” Radius Finger Set Included
• Max. 1-1/2" Lift of Beam Max.
• 125° Degree of Bend Max.
• Max Capacity: 16ga Mild Steel, 20ga Stainless, 12ga Aluminum
• Description

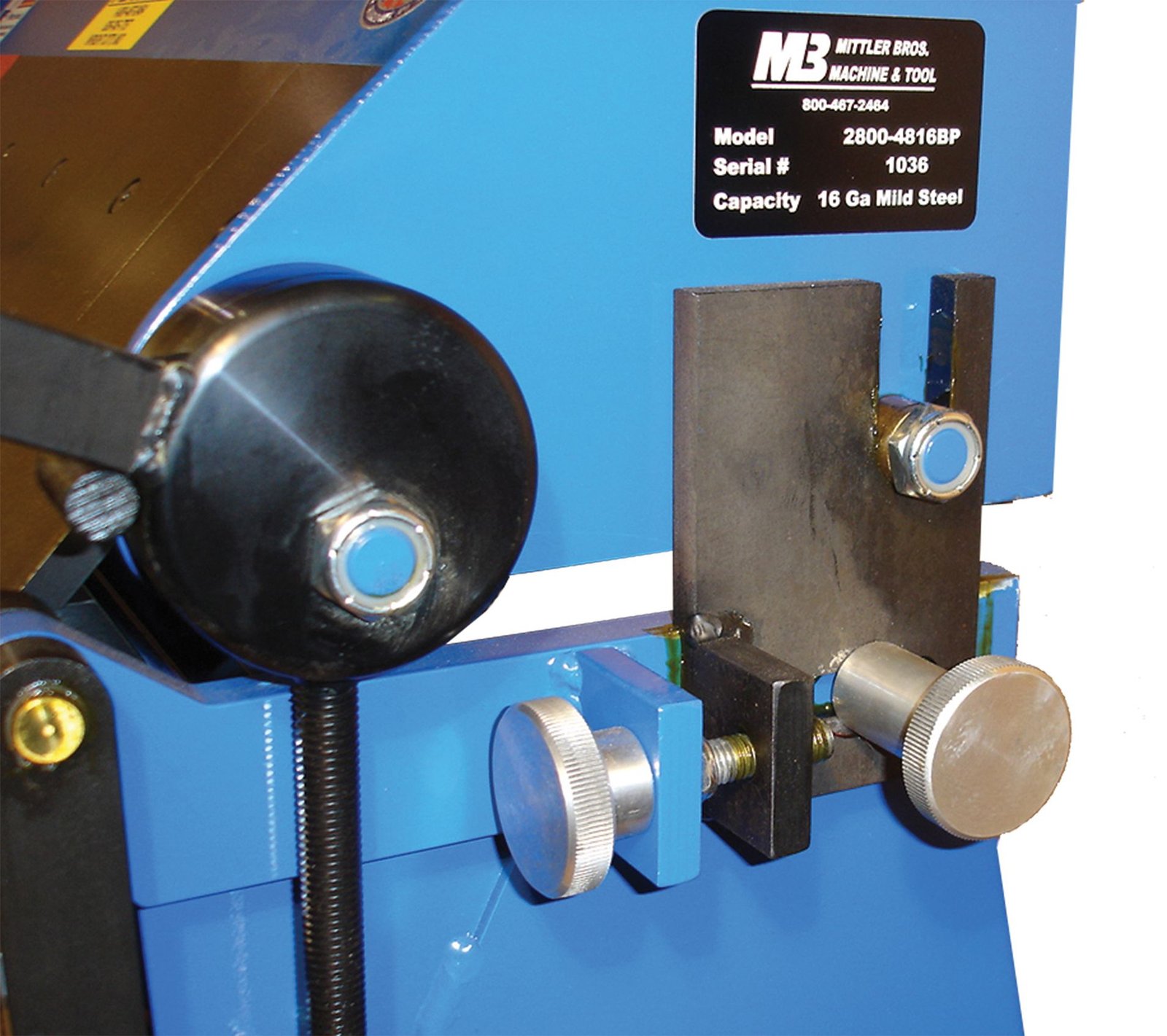

• The ULTIMATE Box & Pan Brake has a unique “3 Finger” design. This design incorporates moveable fingers on the bed and apron as well as the usual upper fingers. This design allows the operator to make bend combinations that were extremely difficult if not impossible before. The ULTIMATE Box & Pan Brake has wrenchless upper set back adjustments and is designed to bend 16 gauge mild steel the full width with the included apron angle fingers. A complete set of upper fingers, bed fingers, apron angle fingers, and counterweight are standard equipment
• Includes:
• 1”, 2”, 3”(qty. 1), 6” (qty. 7) Upper Fingers
• 1”, 2”, 3”, 6” (qty. 1), 12” (qty. 3) Bed Fingers
• 1”, 2”, 3”, 6”, 12” & 24” Apron Angle Fingers
• Features & Specifications
• Substituting Straight Pinch Fingers for Radius Fingers of your choice
• Bending Length: 48" w/ 49" of Clearance
• Machine Height 26"
• 3-1/2" Depth of Box
• 2" Down leg Max.
• Front to Rear Adjustment: 1"
• 1/4" Reverse Bend Min. (with 1/4" Apron Fingers)
• Max Capacity: 16ga (.062") Mild Steel 20ga (.0375") Stainless 12ga (.080") Aluminum
• 16ga (.062") Mild Steel
• 20ga (.0375") Stainless
• 12ga (.080") Aluminum
• *Does NOT Include Stand, Stand Can Be Purchased Separately Part # 2800-400*

Specifications

• Manufacturer: Mittler Bros
• SKU: 2800-48-16-R (1/4 FS)
• Shipping Method: LTL Freight
• Weight: 710 lb
• Dimensions: 72 × 35 × 44 in
• Country of Origin: United States of America
• Warranty: 1 Year (Parts)
