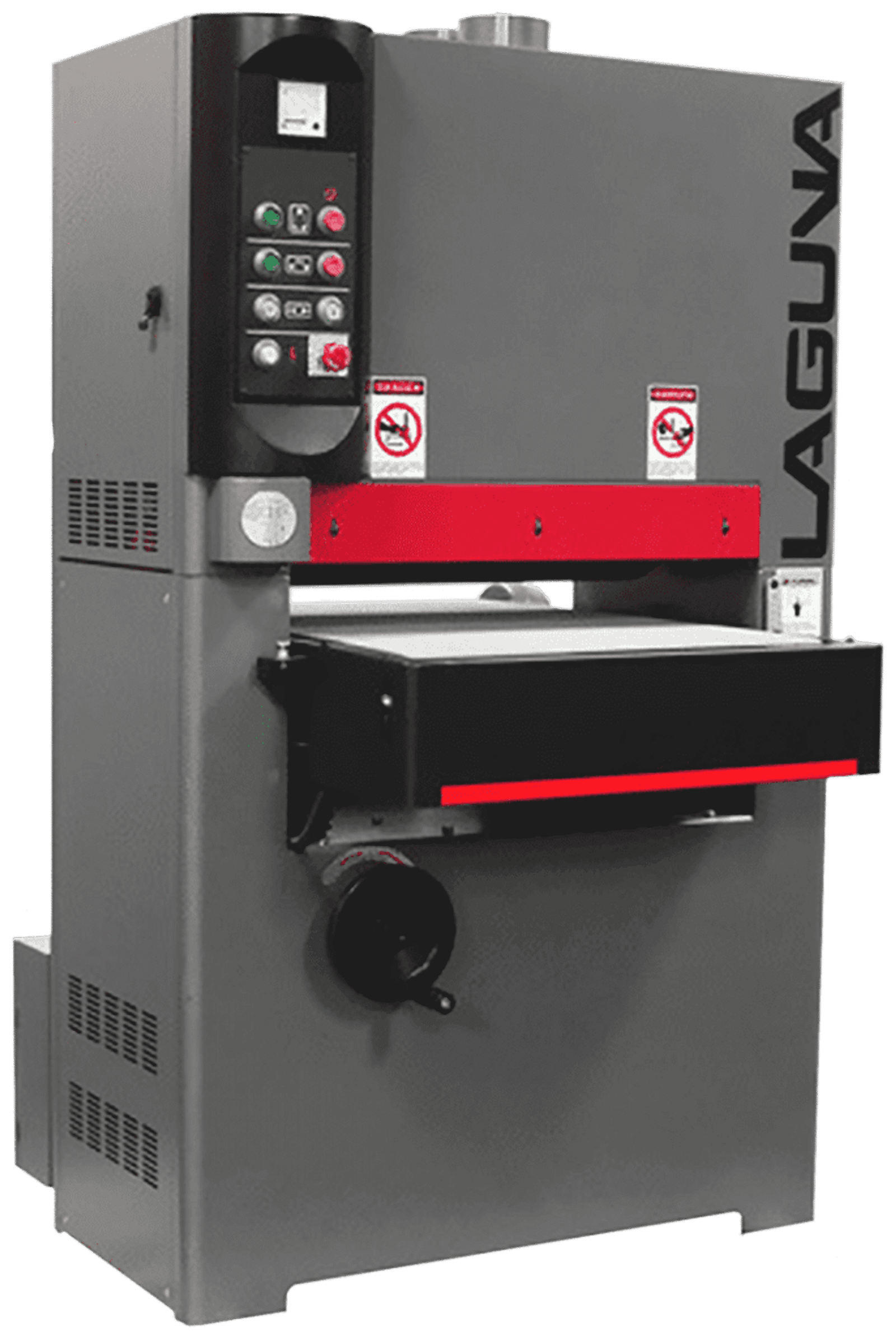

Laguna Tools Compact Enduro MW25C 25” 75HP 220V Single Phase Metal Wide Belt Sander MSANWB25X60-1K-7.5-0197-1

Laguna Tools Compact Enduro MW25C 25” 75HP 220V Single Phase Metal Wide Belt Sander MSANWB25X60-1K-7.5-0197-1 is a Laguna Tools product in the Grinding & Sanding collection.

Product Details

• Belt Size: 25″ x 60″
• Max Sanding Width: 24 3/4″
• Max Sanding Height: 6”
• Motor: 7.5HP, 220V, Single Phase
• Description
• The Enduro Compact Series offers metal deburring, sanding, and texturing, the Compact Line of Metal Wide Belt Sanders from LAGUNA gives a new level of production perfection. With a 7.5 hp motor (Single Phase), 25″ machine width, manual table elevation control, you can get the exact finish you need.
• Features
• Single Sanding Belt
• 7.5hp Main Motor (Single Phase)/1HP Feed Speed
• Sanding Max Width: 24 3/4″
• Sanding Drum Diameter: 8”
• Dust Port Size: 5” x 2
• Specifications
• Main Motor: 7.5HP (Single)
• Feed Speed: 1HP (Single)
• Table Lifting Motor: 0.33 (Single)
• Voltage: 220V, 1 Phase, 60hz
• Automatic Thickness Control: YES (Thicknessor)
• Min Sanding Height: 1/8”
• Max Sanding Width: 25”
• Sanding Belt Size: 60”
• Diameter of Sanding Drum: 8”
• Length of Sanding Drum: 24.4”
• Sanding Drum RPM: 1720
• 2 Speed Settings (Low/High): 20 fpm / 30 fpm
• Dust Port Size: 5”
• Number of Dust Ports: 2
• Foot Print: 39 3/8" x 19 5/16"
• Conveyor Height at Lowest Setting: 31.9" (Table Height 37.4")
• Cabinet Steel: YES
• Operating Air Pressure: 60 PSI
• Sanding Belt Oscillation: Yes
• Sanding Belt Motor Break: Yes
• Fully CSA: Yes
• Net Weight: 1344 lbs
• Ship Weight: 1565 lbs

Specifications

• Manufacturer: Laguna Tools
• SKU: MSANWB25X60-1K-7.5-0197-1
• UPC: 195444076251
• Shipping Method: LTL Freight
• Weight: 1,565 lb
• Dimensions: 44 × 45 × 74 in
• Country of Origin: Taiwan
• Warranty: 2 Years (Parts)
• Warranty Details: Must be registered with Laguna Tools within 30 days of purchase to be covered by this warranty.
