Knuth FSM 2HP 480 Manual Surface Grinder 122802

Knuth FSM 2HP 480 Manual Surface Grinder 122802 is a Knuth product in the Grinding & Sanding collection.

Product Details

• Table dimensions: 8” x 18”
• Spindle axis-to-table surface distance: 17.72”
• Travel X-axis: 18.9”
• Travel Y-axis: 9”
• Description
• This series of manual surface grinding machines is aimed at users who have to carry out short and simple grinding work with high precision but at low cost. They are a perfect solution for repair and training workshops. The machine frame in cross table construction offers high quality. The table is guided easily, and a magnetic clamping plate is also part of the standard accessories, as is the dust suction device.
• Features
• Spindle resists high loads; mounted in pre-loaded angular deep-groove ball bearings ensures low-vibration operation, high accuracy, increased lifetime and low maintenance
• Completely leak-proof and balanced spindle motor with high load capacity
• Solid, vibration-absorbing construction
• V- and flat guides in X and Y directions for consistently high accuracy
• Longitudinal table movement over linear ball guide; linear roller guideway
• Adjustable hand wheel scales for vertical and transverse adjustments allows zeroing at any position
• Central lubrication
• Grinding parallelism 0.0002" / 12"
• Cast-iron machine base absorbs vibrations

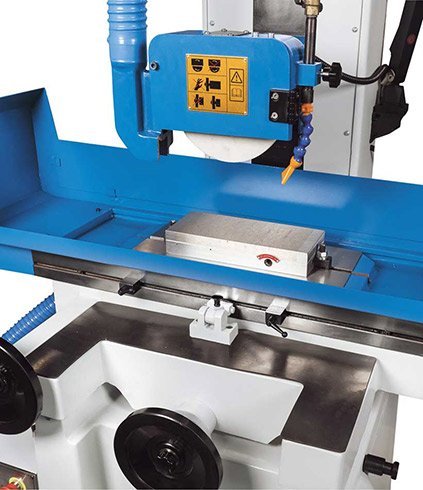

• Magnetic clamping plate 125 x 300 mm (4.9” x 11.8”.)
• Extensive standard equipment included
• Angle-adjustable grinding vise
• Standard Equipment
• Grinding wheel flange
• Grinding wheel dresser
• Grinding wheel
• Exhaust vacuum
• Work lamp
• Magnetic clamping plate 5" x 11.75"
• Balancing shaft
• Balancing station
• Operating tools
• Operator manual
• Specifications
• Working Area Table dimensions: 8” x 18” Spindle axis-to-table surface distance: 17.72”
• Travels Travel X-axis: 18.9” Travel Y-axis: 9” Travel distance per hand-wheel rotation, X-axis: 0.2” Travel distance per hand-wheel rotation, Y-axis: 0.2” Travel distance per hand-wheel rotation, Z-axis: 0.04”
• Travel distance per hand-wheel rotation, X-axis: 0.2”
• Travel distance per hand-wheel rotation, Y-axis: 0.2”
• Travel distance per hand-wheel rotation, Z-axis: 0.04”
• Feed Scale ring division X-axis : 0.00079” Scale ring division Y-axis : 0.00079” Scale ring division Z-axis : 0.0002”
• Scale ring division X-axis : 0.00079”
• Scale ring division Y-axis : 0.00079”
• Scale ring division Z-axis : 0.0002”
• Accuracies Roughness: >= 0.63 µm Ra
• Roughness: >= 0.63 µm Ra
• Drive Capacity Motor rating main drive: 2 Hp
• Motor rating main drive: 2 Hp
• Measures and Weights Weight: 1,606 lbs. Grinding wheel dimensions: 7.87” x 0.51” x 1.26” Machine dimensions (L x W x H): 45” x 54” x 76”
• Weight: 1,606 lbs.
• Grinding wheel dimensions: 7.87” x 0.51” x 1.26”
• Machine dimensions (L x W x H): 45” x 54” x 76”
• Options
• 253338 – Coolant device FSM 480 – 122802
• 103184 – Coolant Concentrate 5 Ltr.
• 128826 – PSG 50
• 128930 – Precision Angle V-Blocks
• 108880 – Magnetic V-Block I
• 102877 – Diamond Dresser Shank
• 128820 – PSK 50 High-Precision Grinding and Control Vise
• 128960 – Corrugated Parallel Parts 0.4-0.9"

Specifications

• Manufacturer: Knuth
• SKU: 122802
• Shipping Method: LTL Freight
• Weight: 1,806 lb
• Dimensions: 50 × 59 × 81 in
• Country of Origin: China
