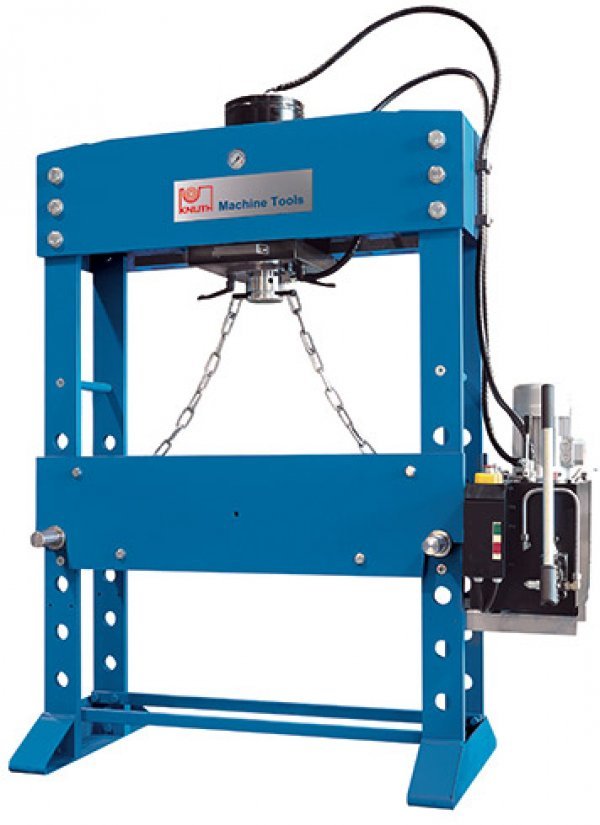

Knuth KNWP 60 HM 220V 2HP Three Phase 66T Hydraulic Workshop Press 131744

Knuth KNWP 60 HM 220V 2HP Three Phase 66T Hydraulic Workshop Press 131744 is a Knuth product in the Hydraulic Presses collection.

Product Details

• Pressure Force: 66 T
• Operating Pressure (max): 3,755.5 psi
• Motor: 220V 2HP Three Phase 60Hz
• 5 Year Parts Warranty
• Description
• This series of hydraulic workshop presses with motor drive is produced in Europe. The stable portal design with adjustable, open support table is suitable for applications such as pressing in and out bearings, for assembly and straightening work or for testing workpieces. The laterally positionable working cylinder facilitates set-up without the workpiece having to be moved. These presses are almost indispensable in technical workshops and maintenance departments.
• Features
• 2-step hydraulic unit
• Work cylinder with smooth horizontal adjustment
• Press frame features high rigidity, functionality, and excellent finish
• Standard Equipment
• Traversing work cylinder
• Height-adjustable work table
• Operator manual
• Specifications
• Working Area Pressure Force: 66 T Operating Pressure (max): 3,755.5 psi Total Piston Stroke: 15” Forward Motion Speed: 0.34 in/s Press Speed: 0.08 in/s Return Speed: 0.42 in/s
• Total Piston Stroke: 15”
• Forward Motion Speed: 0.34 in/s
• Press Speed: 0.08 in/s
• Return Speed: 0.42 in/s
• Drive Capacity Motor: 220V 2HP Three Phase 60 Hz
• Measures and Weights Hydraulic Tank Volume: 8 gal Weight: 1,188 lbs
• Hydraulic Tank Volume: 8 gal
• Weight: 1,188 lbs

Specifications

• Manufacturer: Knuth
• SKU: 131744
• Shipping Method: LTL Freight
• Weight: 1,188 lb
• Dimensions: 52 × 32 × 84 in
• Country of Origin: Netherlands
• Warranty: 5 Years (Parts)
