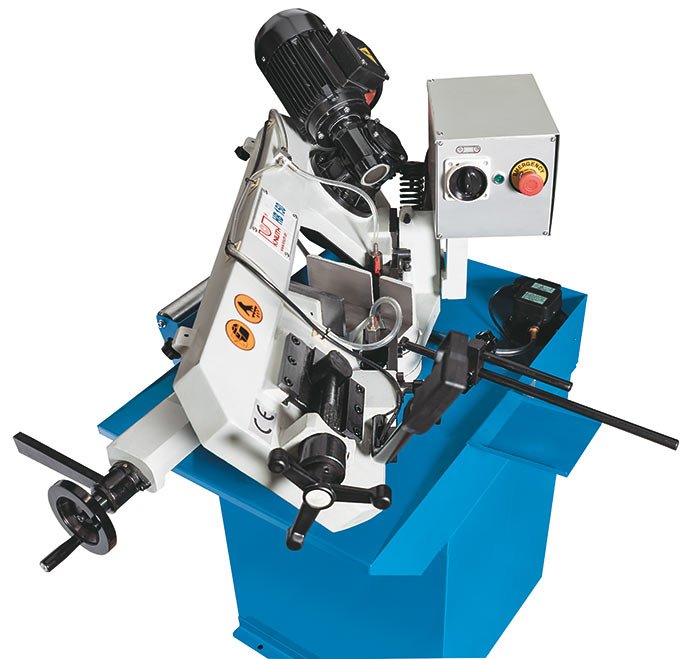

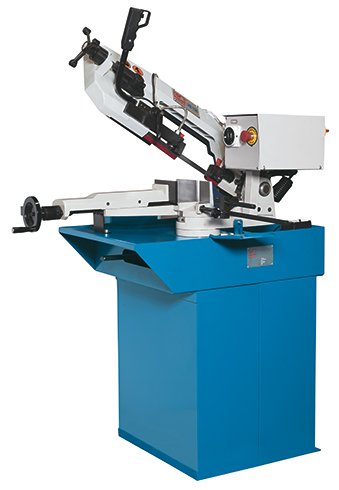

Knuth HB 150 Horizontal Mitre Cutting Band Saw 152822

Knuth HB 150 Horizontal Mitre Cutting Band Saw 152822 is a Knuth product in the Band Saws collection.

Product Details

• Belt speed: 131 / 262 fpm
• Main motor rating: 0.8 / 1.1 Hp
• Cutting capacity 0° Round: 6”
• Cutting capacity 0° Flat (length x width): 5” x 8”
• Description
• The compact horizontal band saw with one-piece saw frame made of gray cast iron is suitable for miter cuts and is a handy solution for every workshop.
• Features
• Cast-iron saw frame, one-piece construction
• For miter cuts, the operator moves the saw frame – not the material
• Vise with quick-action clamping feature
• Standard Equipment
• 1 saw blade
• Coolant system
• Base
• Quick-action vise
• Operator instructions
• Specifications
• Cutting Capacities Cutting capacity 0° Round: 6” Flat (length x width): 5” x 8” Cutting capacity 45° Round: 5” Flat (length x width): 4” x 5” Belt speed: 131 / 262 fpm
• Cutting capacity 0° Round: 6” Flat (length x width): 5” x 8”
• Round: 6”
• Flat (length x width): 5” x 8”
• Cutting capacity 45° Round: 5” Flat (length x width): 4” x 5”
• Round: 5”
• Flat (length x width): 4” x 5”
• Drive Capacity Main motor rating: 0.8 / 1.1 Hp
• Measures and Weights Overall dimensions (length x width x height): 46” x 28” x 32” Weight: 297 lbs.
• Overall dimensions (length x width x height): 46” x 28” x 32”
• Weight: 297 lbs.
• Options
• 103184 – Coolant Concentrate 5 Ltr.

Specifications

• Manufacturer: Knuth
• SKU: 152822
• Shipping Method: LTL Freight
• Weight: 397 lb
• Dimensions: 51 × 33 × 37 in
• Country of Origin: China
