Knuth 4HP 81” KMT B 2052 Motorized Swing-Beam Shear 133643

Knuth 4HP 81” KMT B 2052 Motorized Swing-Beam Shear 133643 is a Knuth product in the Shears collection.

Product Details

• Working length: 81”
• Cutting angle: 2 deg
• Work table height: 33”
• Structural steel plate thickness: 0.031” – 0.079”
• Description
• The KMT B series is ideal for processing long or thick sheet metal in metalworking shops, for repairs, and in individual production. The guillotine shears with motor drive have a modern, high-quality, and very stable construction. The guided cutter bars also enable cuts with little twist in the workpiece. The cutting length can be precisely positioned manually on the backgauge.
• Features
• Solid steel weldment
• Small blade angle
• Rugged support arms
• The mobile control unit features a foot switch
• Manual back gauge with counter
• Machine Frame and Drive System
• The machine frame is made of a rigid, solid steel weldment
• A rubber-coated hold-down automatically fixates the plate
• A small knife angle ensures cut accuracy
• Material Support
• The rigid side angle stop simplifies alignment of the plate to the cut line
• Rugged support arms ensure a good hold of large plates on the support table
• Operation and Ergonomics
• Illuminated cut line ensures good visibility of marking
• The mobile control unit features a foot switch, so the operator has both hands free

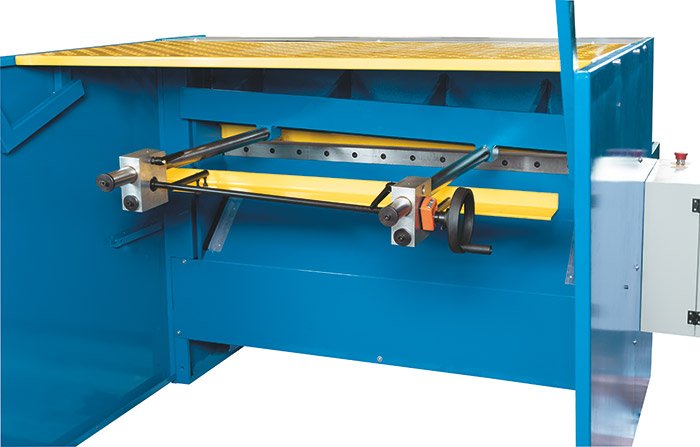

• Back Gauge
• The back gauge is robust and rigid and can handle any challenges in everyday operations

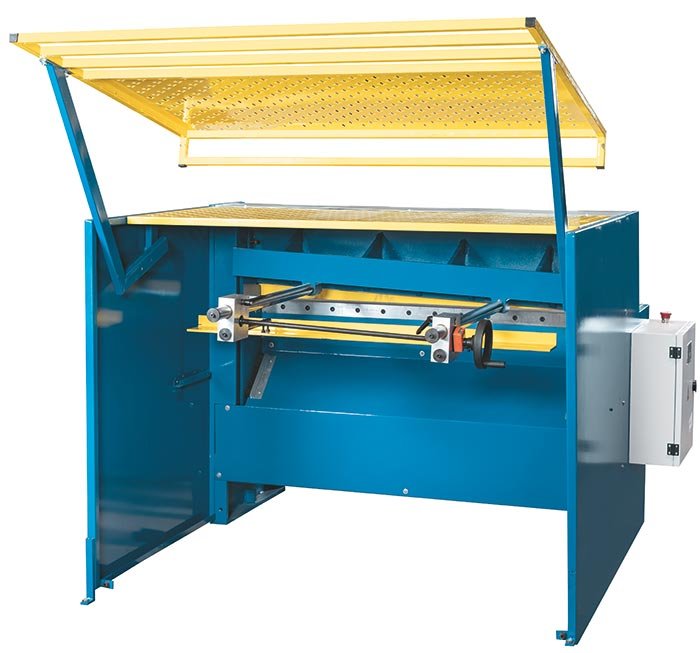

• The work area at the back gauge is covered with safety panels
• Standard Equipment
• Foot pedal
• Side angle stop
• Support arms
• Automatic hold-down
• Cut-line lighting
• Manual rear stop
• Operator instructions
• Specifications
• Working Area Working length: 81” Cutting angle: 2 deg Work table height: 33” Structural steel plate thickness: 0.031” – 0.079” Number of support arms: 3 positions Support arms: 24” Knife length: 83”
• Number of support arms: 3 positions
• Support arms: 24”
• Knife length: 83”
• Back Gauge Rear stop: 25”
• Rear stop: 25”
• Drive Capacity Motor rating main drive: 4 Hp
• Motor rating main drive: 4 Hp
• Measures and Weights Overall dimensions (length x width x height): 99” x 66” x 44” Weight: 2,860 lbs.
• Overall dimensions (length x width x height): 99” x 66” x 44”
• Weight: 2,860 lbs.

Specifications

• Manufacturer: Knuth
• SKU: 133643
• Shipping Method: Flatbed
• Weight: 3,060 lb
• Dimensions: 104 × 71 × 49 in
• Country of Origin: China
