Knuth 49.6HP 53” VDM 2300 S Vertical Lathe 301394

Knuth 49.6HP 53” VDM 2300 S Vertical Lathe 301394 is a Knuth product in the Lathes collection.

Product Details

• Workpiece length (max.): 53”
• Workpiece weight (max.): 17,600 lbs.
• Speed range: 3.2 rpm – 100 rpm
• Rotating diameter (max.): 91”
• Description

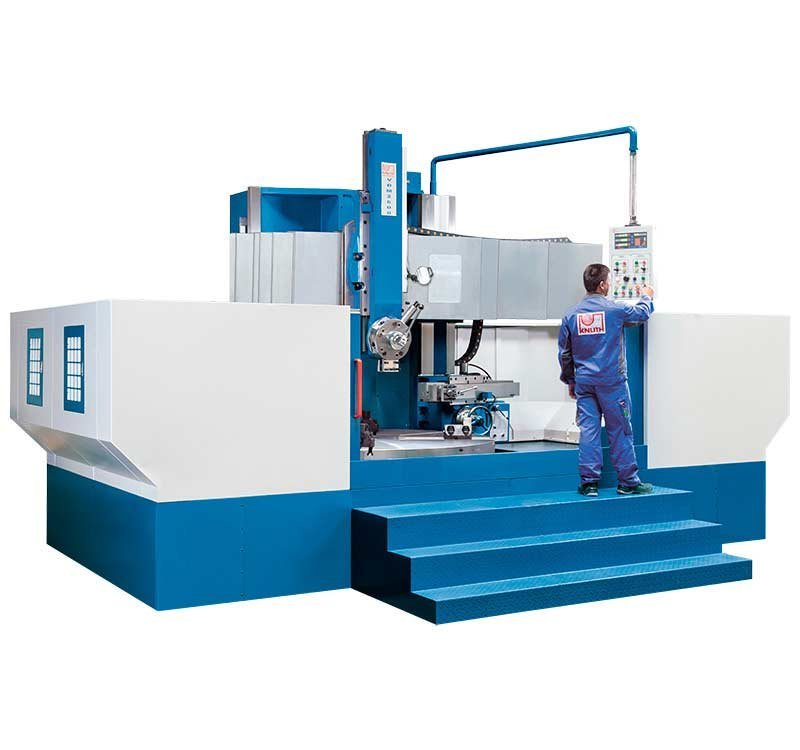

• The VDM series of vertical lathes offers modern, conventional solutions for machining large workpiece diameters and heavy workpiece weights. Their design enables particularly easy and safe loading and unloading. The feed drive is a high-torque servo motor and has a powerful hydraulic system clamps the crossbeam. The main drive provides high torque for heavy machining and a side support is available for machining the outer contour. The standard mounted 3-axis position indicator ensures precision.
• Features
• Infinitely variable feed control via servo-motor
• Optimum tooling and easy access for cranes and forklift trucks
• Heavy-duty column with wide, hardened guideways
• Hydraulic clamping of cross traverse
• Rigid guide construction ensures maximum rigidity and accuracy of the vertical boom
• Spindle runs in a high-precision two-row roller bearing and is adjustable
• Reduction gear drive ensures high torque and a speed range of 10-315 rpm
• Servo motor technology ensures powerful, infinitely variable feed of the vertical boom
• Standard Equipment
• 3-axis position indicator
• Tool holder vertical
• Central lubrication
• Work lamp
• Anchor bolts
• Operating tools
• Operator manual
• Fully enclosed housing
• Chip conveyor
• Tool holder horizontal
• Specifications
• Working Area Workpiece length (max.): 53” Workpiece weight (max.): 17,600 lbs. Rotating diameter (max.): 91” Machining height (max.): 53” Turning diameter of upper tool holder: 91” Turning diameter of side tool holder: 79” Swivel range of upper tool holder: ± 30°
• Machining height (max.): 53”
• Turning diameter of upper tool holder: 91”
• Turning diameter of side tool holder: 79”
• Swivel range of upper tool holder: ± 30°
• Travels Travel X1 axis, upper support: 45” Travel Z1 axis , upper support: 39” Travel W-axis, traverse: 39” Travel X2 axis, side support: 25” Travel Z2 axis, side support: 39”
• Travel X1 axis, upper support: 45”
• Travel Z1 axis , upper support: 39”
• Travel W-axis, traverse: 39”
• Travel X2 axis, side support: 25”
• Travel Z2 axis, side support: 39”
• Headstock Speed range: 3.2 rpm – 100 rpm Spindle torque (max.): 23.602 ft.lb. Rotary table diameter: 79”
• Spindle torque (max.): 23.602 ft.lb.
• Rotary table diameter: 79”
• Rapid Feed Rapid feed of upper support: 71”/min Rapid feed of side support: 71”/min
• Rapid feed of upper support: 71”/min
• Rapid feed of side support: 71”/min
• Feed Feed speed X-axis: 0.0315”/min – 3.3858”/min Feed speed Z-axis: 0.0315”/min – 3.3858”/min Feed speed W-axis: 17”/min
• Feed speed X-axis: 0.0315”/min – 3.3858”/min
• Feed speed Z-axis: 0.0315”/min – 3.3858”/min
• Feed speed W-axis: 17”/min
• Tool Head Tool weight max.: 110 lbs. Tool holder: 1.2" x 1.6"
• Tool weight max.: 110 lbs.
• Tool holder: 1.2" x 1.6"
• Drive Capacity Motor rating main drive: 49.6 Hp Motor rating X-axis: 1.7 Hp Motor rating Z-axis: 2.41 Hp
• Motor rating main drive: 49.6 Hp
• Motor rating X-axis: 1.7 Hp
• Motor rating Z-axis: 2.41 Hp
• Measures and Weights Overall dimensions (length x width x height): 300” x 197” x 213” Weight: 41,800 lbs.
• Overall dimensions (length x width x height): 300” x 197” x 213”
• Weight: 41,800 lbs.
• Options
• 103184 – Coolant concentrate 5 ltr

Specifications

• Manufacturer: Knuth
• SKU: 301394
• Shipping Method: Flatbed
• Weight: 42,000 lb
• Dimensions: 305 × 202 × 218 in
• Country of Origin: China
