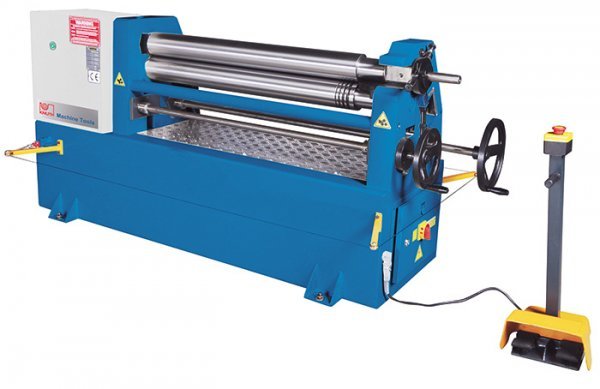

Knuth 3HP 81” KRM T 20/4.0 Plate Rolling Machine 131988

Knuth 3HP 81” KRM T 20/4.0 Plate Rolling Machine 131988 is a Knuth product in the Plate Roll collection.

Product Details

• Plate Thickness (max.): 0.16”
• Working Length: 81”
• Roll Diameter: 6”
• Roller Speed: 11.45 fpm
• Description
• KRM is a series of heavier medium capacity round bending machines for workpieces up to 2000 mm (78.74 in.) in length. The machines have a solid, closed machine frame, and you can adjust the rear roller manually by hand or optionally with a motor. With special features such as conical bending and pre-bending, the models in this series are suitable for a wide range of applications in individual production.
• Features
• Asymmetrical structure
• Main motor with brakes
• Hardened rollers with wire insertion grooves
• Conical bender
• 3-roller roll bender with asymmetrically positioned rollers
• Rigid, seamless machine frame made of ductile cast-iron
• Hardened rollers, suitable for stainless steel
• Main motor with brake system for exact bending
• Pull-out top roller with eccentric lock and safety switch
• Bottom and rear rollers feature wire insertion grooves
• Conical bending feature is included in standard equipment
• Hand wheel for rear roll feed
• Quick adjusting rolls (motor-driven, option)
• Mobile control panel with foot switch for left/right rotation
• Standard Equipment
• Conical bending feature
• Hardened rollers
• Wire insertion groove
• Operator instructions
• Emergency stop lanyard
• Separate control panel with foot switch
• Side enclosure
• Specifications
• Working Area Plate Thickness (max.): 0.16” Stainless Steel: 0.079” Conical Bending: 0.098” Working Length: 81” Roll Diameter: 6” Roller Speed: 11.45 fpm Wire Grooves Diameter: 4/7/9/13”
• Plate Thickness (max.): 0.16” Stainless Steel: 0.079” Conical Bending: 0.098”
• Stainless Steel: 0.079”
• Conical Bending: 0.098”
• Wire Grooves Diameter: 4/7/9/13”
• Drive Capacity Motor Rating Main Drive: 3 HP
• Motor Rating Main Drive: 3 HP
• Measures and Weight Overall Dimensions (L x W x H): 126” x 30” x 40” Weight: 3,630 lbs.
• Overall Dimensions (L x W x H): 126” x 30” x 40”
• Weight: 3,630 lbs.
• Options
• 253981 – Digital display for rear roller adjustment

Specifications

• Manufacturer: Knuth
• SKU: 131988
• Shipping Method: Flatbed
• Weight: 3,800 lb
• Dimensions: 130 × 35 × 45 in
• Country of Origin: Turkey
