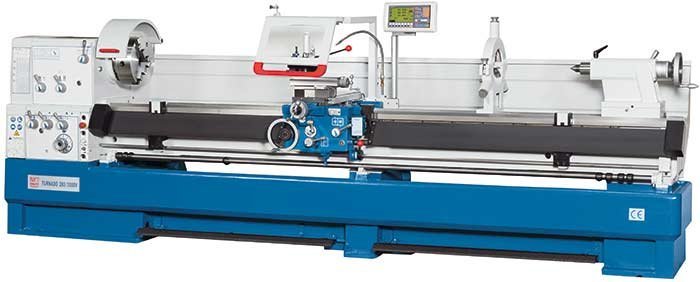

Knuth 10.1HP 39” Variable Speed Turnado 230/1000 V Universal Lathe with Constant Cutting Speed 320570

Knuth 10.1HP 39” Variable Speed Turnado 230/1000 V Universal Lathe with Constant Cutting Speed 320570 is a Knuth product in the Lathes collection.

Product Details

• Center height: 9”
• Workpiece length (max.): 39”
• Turning-Ø over support: 9”
• Gap bridge length: 6”
• Description
• The turning machines of the Turnado series are characterized by their robust construction, powerful motor, and versatility. For more than 20 years they have been among the tried and tested bestsellers of Knuth’s conventional lathes. The V models are also equipped with an extended, infinitely variable speed range. In combination with the position indicator and integrated function of the constant cutting speed, you achieve a superior surface quality when facing. A high-quality quick-change toolholder system also lessens non-productive time and costs.
• Features
• Cost-effective, lasting value
• Practically arranged control panel with ergonomic layout of selection levers
• Camlock spindle mount D1-6
• Wide bed, ground and hardened
• Offset tailstock for taper turning
• Large number of thread leads
• Removable gap bridge for machining of large parts
• Stop spindle with adjustable travel stops
• Turnado with infinitely variable speed adjustment
• 3-Axis Position Indicator
• Integrating multiple functions, this new generation of 3 axis digital readouts significantly offer a much better control over the machining processes, greatly decreasing down-times and error rates
• It features a totally sealed enclosure made of high quality polyester film which protects it against hazardous enviroments in shop floors, such as dust or fumes and offers excellent chemical resistance to most commonly used industry solvents
• Optische Maßstäbe: 5 μm Auflösung (0,005 mm) mit Außenabdeckung aus Aluminium zum Schutz vor Öl, Kühlmittel und Spänen
• Basic Functions Auflösung 0,005 mm Spindle control ON/OFF Unit measurement conversion Inch / Metric Setting / Reseting current position Coordinate display switching ABS / INC Radius / Diameter display Z1/Z2 Axes summing Pocket calculator functions
• Auflösung 0,005 mm
• Spindle control ON/OFF
• Unit measurement conversion Inch / Metric
• Setting / Reseting current position
• Coordinate display switching ABS / INC
• Radius / Diameter display
• Z1/Z2 Axes summing
• Pocket calculator functions
• Extended Functions Axis position is maintained when display is turned off Hole circle pattern calculation Radius / diameter toggle Reference function for tool gauging Taper turning function
• Axis position is maintained when display is turned off
• Hole circle pattern calculation
• Radius / diameter toggle
• Reference function for tool gauging
• Taper turning function
• Constant Cutting Speed Allows you to have constant cutting speed during – the spindle speed automatically adjusts based on the turning diameter
• Allows you to have constant cutting speed during – the spindle speed automatically adjusts based on the turning diameter
• Standard Equipment
• 3-jaw chuck (10" diam.)
• 4-jaw face plate chuck (12" diam.)
• Face plate (13" diam.)

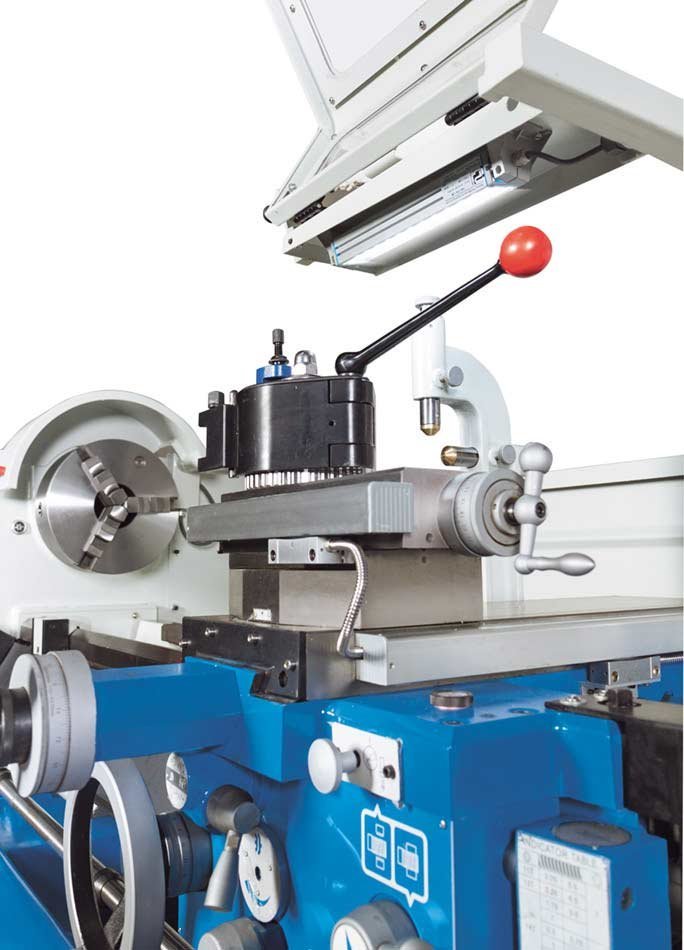

• Quick-change tool holder head WB
• Quick change tool holder WBD 25120
• Coolant system

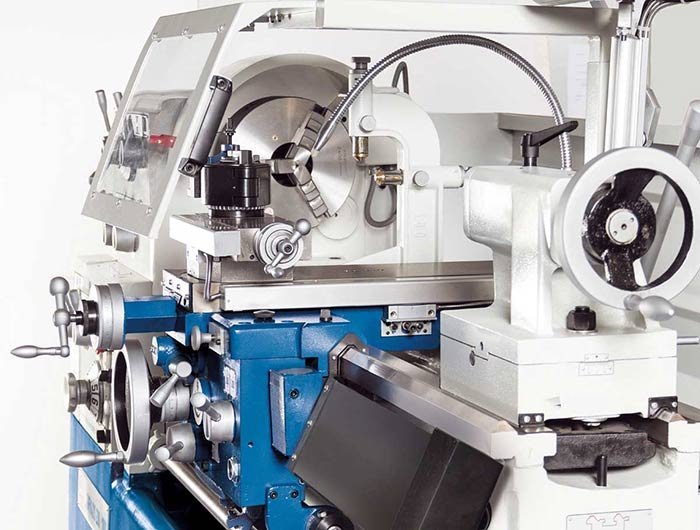

• Steady and follow rests
• Spindle
• Fixed splash guard (wall)
• Chuck guard
• Foot brake pedal
• LED work lamp
• Reducing sleeve
• Dead center
• Thread gauge
• Operating tools
• Operator instructions
• Specifications
• Working Area Center height: 9” Workpiece length (max.): 39” Turning-Ø over support: 9” Gap bridge length: 6” Bed width: 12” Turning diameter over gap bridge: 27” In-gap diameter over bed: 18”
• Bed width: 12”
• Turning diameter over gap bridge: 27”
• In-gap diameter over bed: 18”
• Details Equipment: with position indicator and infinitely variable speed adjustment
• Equipment: with position indicator and infinitely variable speed adjustment
• Travels Travel X-axis: 11.2” Travel Z1-axis: 5” Swing range of top slide: ±52°
• Travel X-axis: 11.2”
• Travel Z1-axis: 5”
• Swing range of top slide: ±52°
• Headstock Spindle mount: Camlock D1-6 Spindle bore: 2” Spindle speeds: L 30-600 / H 600-3000 rpm Spindle taper: 6 MT
• Spindle mount: Camlock D1-6
• Spindle bore: 2”
• Spindle speeds: L 30-600 / H 600-3000 rpm
• Spindle taper: 6 MT
• Feed Feed X-axis: 0.00055”/R – 0.03087”/R Feed Z-axis: 0.00122”/R – 0.06693”/R
• Feed X-axis: 0.00055”/R – 0.03087”/R
• Feed Z-axis: 0.00122”/R – 0.06693”/R
• Threading Threading, module: 0.0039” – 0.2756” Threading, withworth: (60) 2-112 TPI Threading, metric: (47) 0.004 – 0.6 Threading, diametric: (50) 4-112 DP
• Threading, module: 0.0039” – 0.2756”
• Threading, withworth: (60) 2-112 TPI
• Threading, metric: (47) 0.004 – 0.6
• Threading, diametric: (50) 4-112 DP
• Tailstock Tailstock taper: 4 MT Tailstock quill stroke: 5” Tailstock quill diameter: 2” Tailstock traverse adjustment: ± 0.5”
• Tailstock taper: 4 MT
• Tailstock quill stroke: 5”
• Tailstock quill diameter: 2”
• Tailstock traverse adjustment: ± 0.5”
• Drive Capacity Motor rating main drive: 10.1 Hp
• Motor rating main drive: 10.1 Hp
• Measures and Weights Overall dimensions (length x width x height): 87” x 43” x 53” Weight: 3,784 lbs.
• Overall dimensions (length x width x height): 87” x 43” x 53”
• Weight: 3,784 lbs.
• Options
• 103022 – Quick-Set Spindle Bore Stop Size 7 2.2-2.6 in
• 103184 – Coolant Concentrate 5 Ltr.
• 103291 – Tool Holder WBD 25×100
• 103331 – Pivoted Mounts LK 5
• 103292 – Tool Holder WBD 25×140
• 103293 – Tool Holder WBD 32×120
• 103294 – Tool Holder WBD 32×140
• 106755 – Live Center MT 4
• 103295 – Tool Holder WBH 32×130
• 103296 – Tool Holder WBJ 40×120
• 103297 – Cut-off insert holder WBA-A2a
• 108520 – Knurl Holder
• 103298 – Tool Holder WBH 18×120
• 108521 – Knurl Set, angles
• 103820 – Reduction Sleeve MT 4/1
• 108670 – Clamped Turning Tool Set 0.98 in
• 103825 – Reduction Sleeve MT 4/2
• 103830 – Reduction Sleeve MT 4/3
• 108675 – Indexable Insert Set 0.98 in, 30 pcs.
• 146473 – 4-Jaw Lathe Chuck Steel 10 in
• 104670 – Extension Sleeve MT 4/5
• 104745 – Tool Holder Bit MT4 / B16
• 123040 – Power Worker Metal Cutter
• 104750 – Tool Holder Bit MT4 / B18
• 104765 – Keyless Drill Chuck 0.04-0.5 in B 16
• 104770 – Keyless Drill Chuck 0.12-0.63 in B 18
• 108700 – Turning Tool Set 8 pcs., 0.78 in
• 108773 – Clamped Turning Tool Set 0.78 in
• 108775 – Replacem. 0.5/0.6/0.8 in 5pc / Clamping Turning Tool
• 108778 – Clamped Turning Tool Set 0.78 in, 9-pc
• 108779 – Indexable Insert Set 0.8 in, 30-pc
• 108780 – Clamped Turning Tool Set 0.6/0.8/0.9 in, 9-pc
• 108782 – Indexable Insert Set 0.6/0.8/0.9 in, 30-pc
• 116551 – Soft Jaw Pads 8 in
• 116651 – Soft Jaw Pads 200
• 146372 – 3-Jaw Lathe Chuck Steel 7.9 in
• 146472 – 4-Jaw Lathe Chuck Steel 8 in

Specifications

• Manufacturer: Knuth
• SKU: 320570
• Shipping Method: Flatbed
• Weight: 3,984 lb
• Dimensions: 92 × 48 × 58 in
• Country of Origin: China
