Kalamazoo Machine Tool 10HP 208V Three Phase 23” x 49” Twin Column Semi-Automatic Bandsaw H12SA

Kalamazoo Machine Tool 10HP 208V Three Phase 23” x 49” Twin Column Semi-Automatic Bandsaw H12SA is a Kalamazoo Machine Tool product in the Band Saws collection.

Product Details

• One Bi-metal sawblade
• Low voltage control
• TEFC 3 phase drive motor
• Totally enclosed worm gear transmission
• Features
• Semiautomatic
• When a heavy duty bandsaw is needed for structural steel look no further than the H7 SA, H8 SA, or the H12 SA.
• Straight cut
• Double column
• 5 Degree cant
• Carbide guides w/ rollers
• Largest beam capacity
• H12 SA W36
• Perfectly counter balanced
• Clamping on both sides of cut
• Vibration free sawing in a range of interrupted and solid materials
• All moving components on linear bearing guides Hydraulic blade tension on H8 SA and H12 SA
• Rear guide is fixed, the outside guide automatically moves close to the cut
• Standard Equipment
• Full Coolant System
• Full Blade Guarding
• Operators Manual Parts List/Schematics
• Tool kit
• Specifications

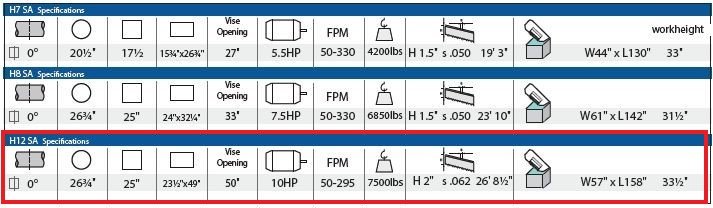

• (See chart in pictures.) Capacities shown are max envelope. Each individual cutting job must be considered with regards to type and shape of material, and quantity of pieces per day.
• Options
• AC600 – 10' Conveyor
• AC625 – 5' Conveyor with coolant tray
• AC116 – Spray mist coolant

Specifications

• Manufacturer: Kalamazoo Machine Tool
• SKU: H12SA (208V)
• Shipping Method: Flatbed
• Weight: 7,600 lb
• Dimensions: 163 × 62 × 38 in
• Warranty: 1 Year (Parts)
