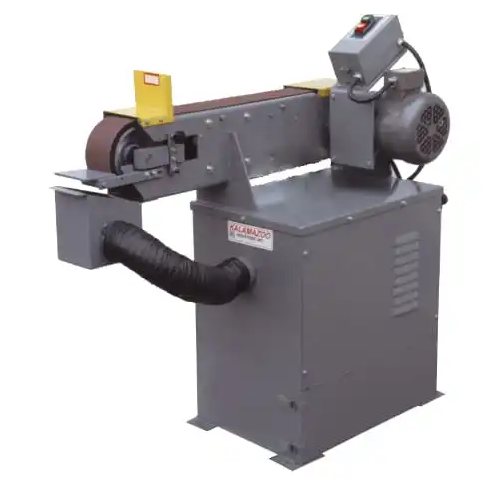

Kalamazoo Industries 5HP 220V Three Phase 4” x 90” Belt Grinder with Dust Collector KS490HV-5

Kalamazoo Industries 5HP 220V Three Phase 4” x 90” Belt Grinder with Dust Collector KS490HV-5 is a Kalamazoo Industries product in the Grinding & Sanding collection.

Product Details

• Grinder amp draws: 3PH 230V 11.8 amps
• Dust collector amp draws: 3PH 230V 2.8 amps
• Belt speed: 6900 SFPM
• Grinder switch: Magnetic on/off switch
• Description
• KS490HV-5 4 x 90 inch belt grinder with dust collector is a heavy duty direct drive unit that features a powerful 5HP, 3PH motor, 6900 SFPM belt which delivers quick metal removal with minimal heat build up. An 8″ OD x 4″ W serrated 70 duro contact wheel with full left to right movement that allows for easy corning shaping, beveling, grinding, deburring, flat work, descaling, angel work and roughing.
• This product has applications in the following industries: Energy, Oil/Natural Gas, Petro/Chemical, Knife Manufacturing, Automotive, Metal Foundries, as well as many other Manufacturing and Fabrication environments.
• Designed to Do
• Aggressive grinding
• Beveling
• Deburring
• Descaling
• Polishing
• Finishing
• Tool sharpening
• Features
• Spring belt tensioning
• Vacuum base.
• Made in USA!
• Vacuum switch: rotary on/off switch.
• 8″ OD x 4″ W 70 durometer contact wheel with standard serrations.
• 24 – 1/2″ long reversible and replaceable steel platen.
• Mounted on DCV-6 dust collector – 400 CFM
• Specifications
• Motor: 5 HP 3 PH belt sander (220/440V)
• Dimensions: W 18″ x D 26″ x H 42″
• Weight: 450 lbs.
• Options
• KB49050 – 4 X 90 INCH ALUMINUM OXIDE SANDING BELTS
• KB49080 – 4 X 90 INCH ALUMINUM OXIDE SANDING BELTS
• KB490100 – 4 X 90 INCH ALUMINUM OXIDE SANDING BELTS
• 563-009 – 3 X 90 AND 4 X 90 INCH BELT GRINDER STEEL PLATEN
• 560-056 – 3 AND 4 INCH BELT GRINDER DRIVE WHEEL AND BUSHING
• 936-010 – 4 x 8 INCH 70 DUROMETER CONTACT WHEEL

Specifications

• Manufacturer: Kalamazoo Industries
• SKU: KS490HV-5 (220V)
• Shipping Method: LTL Freight
• Weight: 550 lb
• Dimensions: 31 × 23 × 47 in
• Country of Origin: United States of America
• Warranty: 1 Year (Parts)
