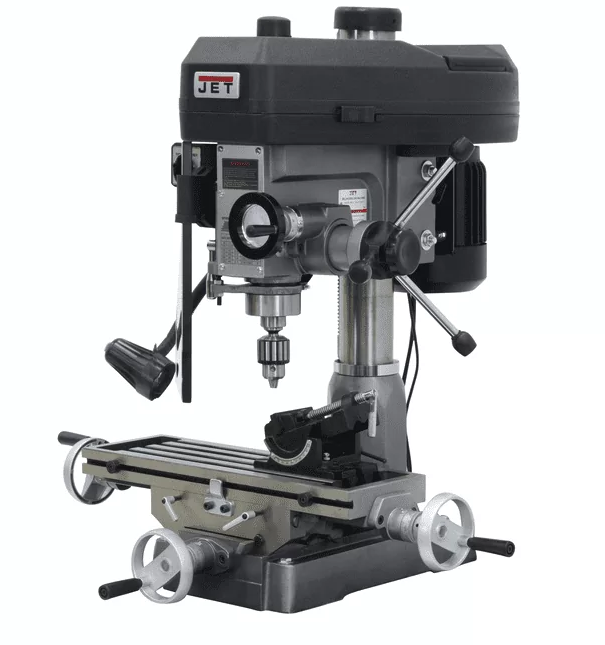

Jet Mill/Drill With ACU-RITE 203 DRO | JMD-15 350116

Jet Mill/Drill With ACU-RITE 203 DRO | JMD-15 350116 is a JET product in the Milling Machines collection.

Product Details

• 1/2” Drill chuck, chuck arbor
• 360° head swivel
• Adjustable carbide facemill
• Base taper allows for easier clean up
• Easy to read external depth gauge
• Mill Drills are a lighter alternative to a milling machine. These combine a belt driven drill press with the dual coordinate abilities of the milling machine's table for flexibility and efficiency. A locking collet prevents the cutting tool from falling away from the spindle when lateral forces are experienced against the bit. Although light in construction, the JMD Milling Drilling Machines possess the advantages of space-saving versatility, affordability and light machining capability.
• Mill Drill Stand, p/n 320020, shown in some images, is optional
• One-piece cast iron column for added support
• UL Listed
• Specification: Value
• Swing (In.): 14-1/2
• Spindle Travel (In.): 3-1/2
• Number of Spindle Speeds: 12
• Table Size (L x W) (In.): 7-1/2 x 23
• Weight (Lbs.): 440
• Spindle Taper (In. x TPI): R-8
• Max Distance Spindle to Table (In.): 14-1/2
• Quill Diameter (In.): 2-7/16
• Range of Spindle Speeds (RPM): 110 – 2,580
• Drilling Capacity (In.): 1
• Table Longitudinal Travel (In.): 14
• T-Slots Number and Size (In.): 4 and 9/16
• T-Slot Centers (In.): 1-13/16
• Work Table Weight Capacity (Lbs.): 350
• Column Diameter (In.): 3-5/8
• Base Dimensions (In.): 12-1/2 x 19-3/4
• Motor (HP): 1 HP, 115/230V, 1Ph
• Overall Dimensions (L x W x H) (In.): 38 x 37-1/2 x 42
• Height: 35.5000
• Length: 36.5000
• Weight: 500.0000
• Width: 37.5000

Specifications

• Manufacturer: JET
• SKU: JT9-350116
• UPC: 662755110542
• Shipping Method: LTL Freight
• Weight: 500 lb
• Dimensions: 36.5 × 37.5 × 35.5 in
• Country of Origin: Taiwan
