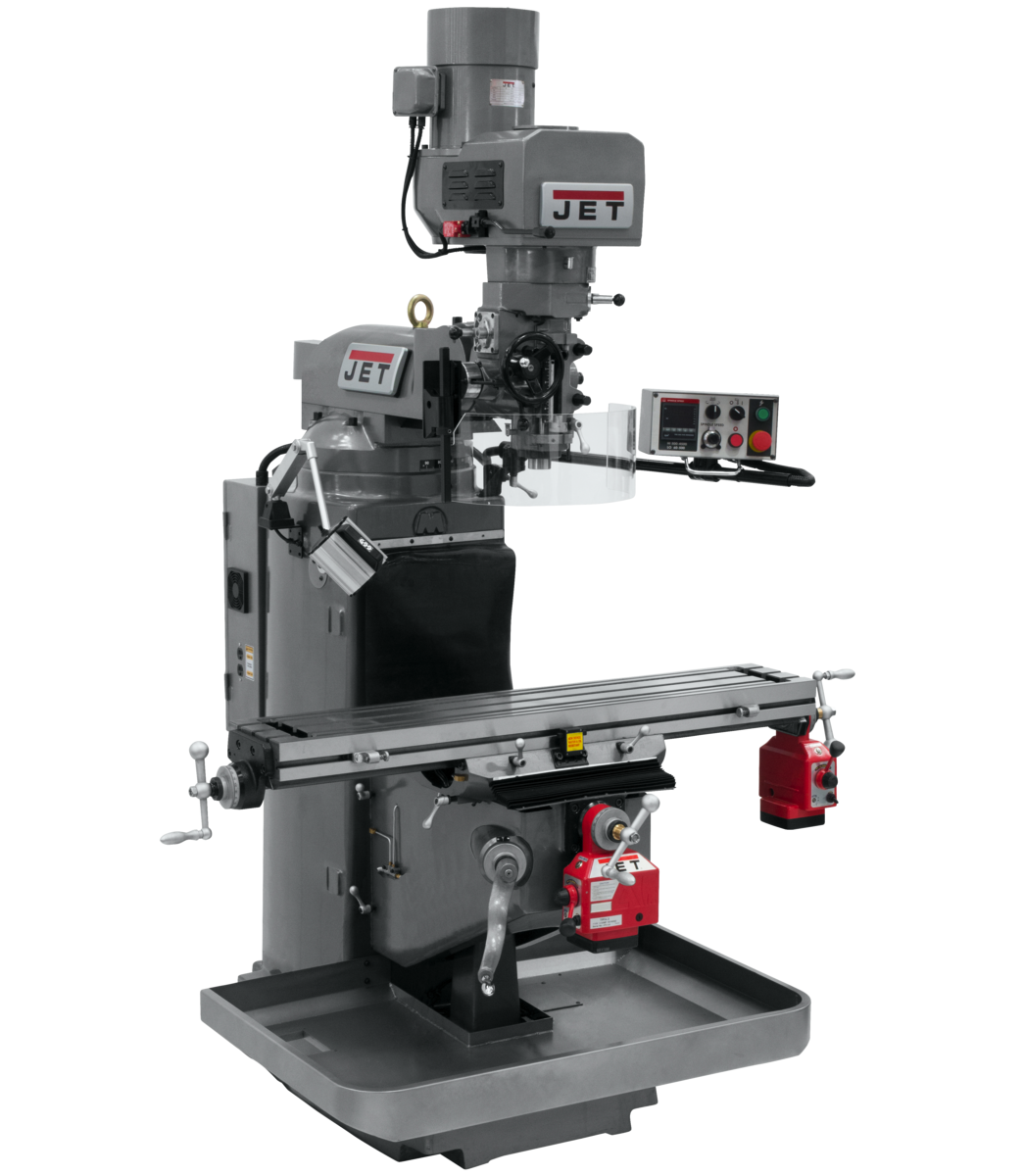

Jet JTM-949EVS Mill With X and Y-Axis Powerfeeds 690503

Jet JTM-949EVS Mill With X and Y-Axis Powerfeeds 690503 is a JET product in the Milling Machines collection.

Product Details

• Automatic oiler releases 3 to 6 cc/cy of lubrication every 30 minutes
• Class 7 spindle bearings support the spindle for maximum rigidity in heavy cutting applications
• Dual locks on all moveable surfaces
• Spindle head is internally cooled extending bearing, belt and motor life

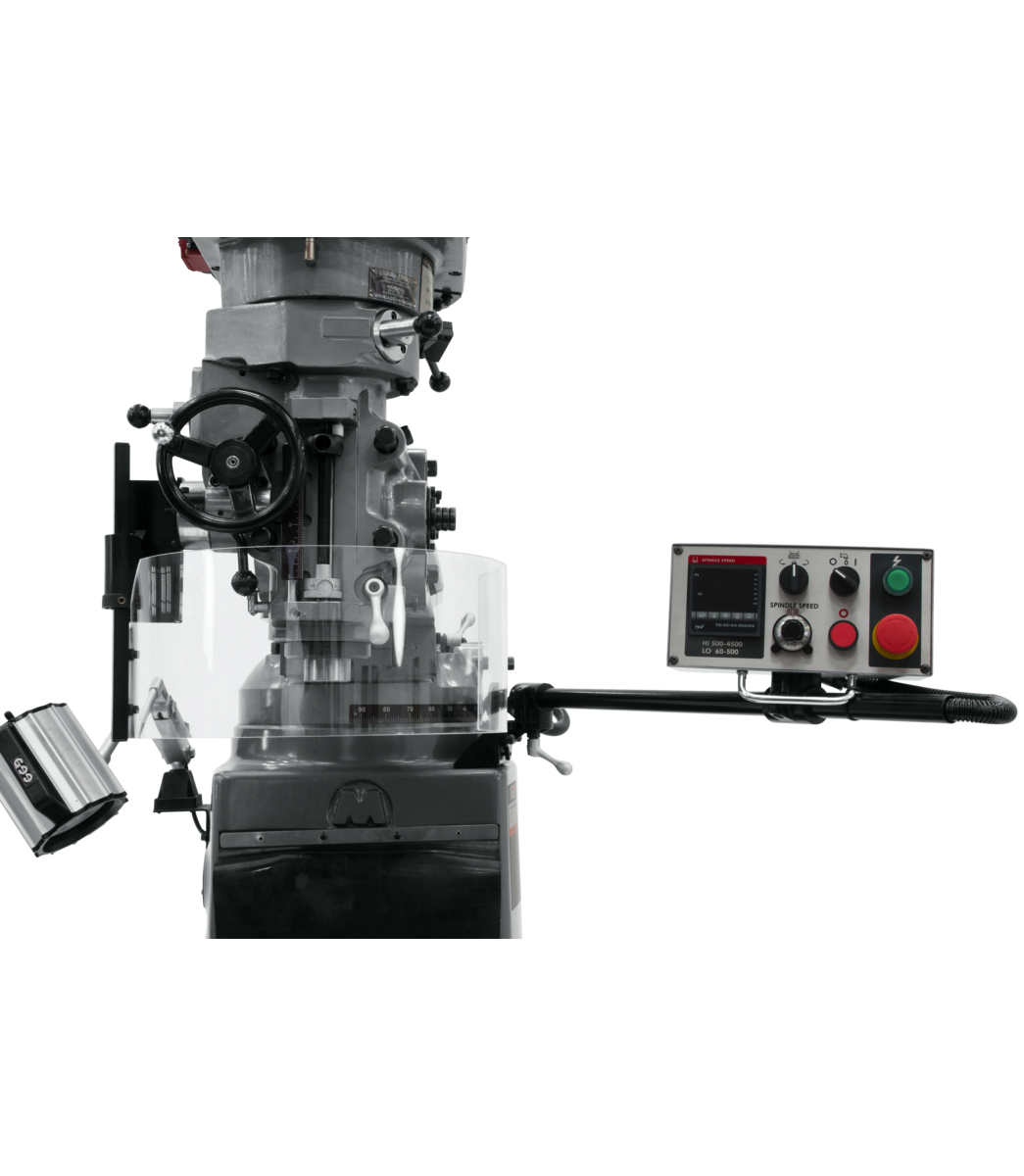

• Swing away control box houses an e-stop and puts all controls at the operators fingertips
• Constructed using the Certified Meehanite® casting process, The JTM-949EVS, 9" x 49" Electronic Variable Speed Milling Machines provides consistent and reliable operation. The newly designed column and base incorporates a rigid, robust design. These new Mills have features you've come to expect and is backed by the industry-leading JET Two Year Warranty with products CSA/CUS Certified.
• Swing away safety shield
• Table and ways are hardened up to 54 HRC and precision ground for greater accuracy
• The electrical box has been relocated to the back of the mill and houses two 115V outlets for powered accessories

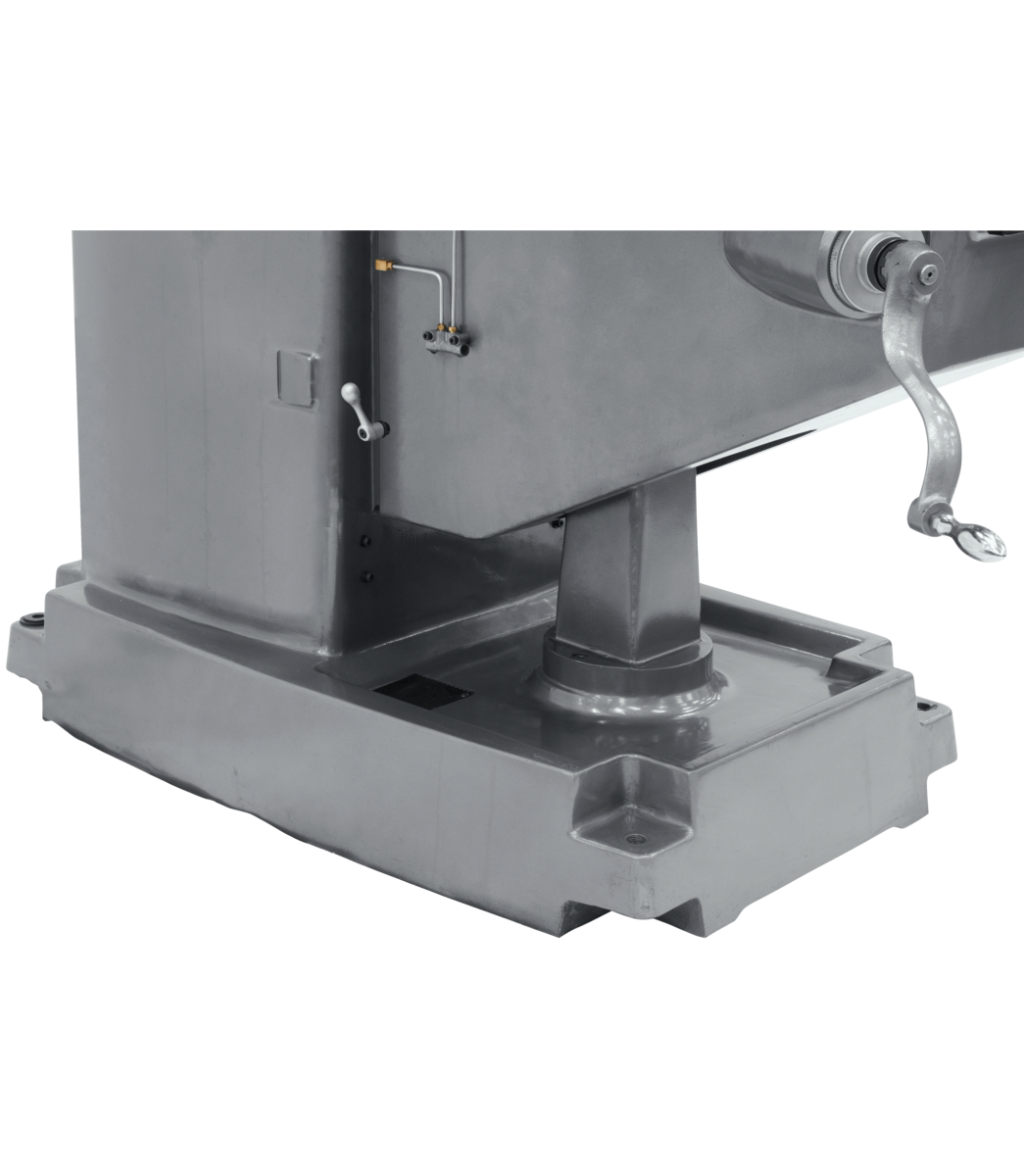

• The innovative design of the machine base provides an easier solution to level the machine without raising it up off the floor
• The X and Y-Axis are coated with Turcite-B for reduced vibration and smooth movements
• Specification: Value
• Powerfeed: X and Y-Axis
• Spindle Travel (In.): 5
• Style (Type): EVS
• Table Size (L x W) (In.): 9 x 49
• Weight (Lbs.): 2420
• Spindle Taper (In. x TPI): R-8
• Max Distance Spindle to Table (In.): 20-3/4
• Distance Spindle to Column (Max.) (In.): 18-1/8
• Quill Diameter (In.): 3-3/8
• Range of Spindle Speeds (RPM): 60 – 4,500
• Collet Capacity: 1/8 – 7/8
• Quill Down Feed Rates (IPR): .0015 – .003 – .006
• Table Longitudinal Travel (In.): 36
• Table Longitudinal Travel With Powerfeed (In.): 30-3/4
• Table Cross Travel (In.): 12-5/8
• T-Slot Centers (In.): 2-1/2
• Work Table Weight Capacity (Lbs.): 720
• Travel of Knee (In.): 15-3/4
• Travel of Ram (In.): 15-1/4
• Saddle Width (In.): 11-1/2
• Column Width (In.): 18
• Motor (HP): 3HP, 230V, 3Ph
• Inverter Type: Delta, B
• Overall Dimensions (L x W x H) (In.): 67 x 64 x 86
• Length: 66.0000
• Height: 86.0000
• Weight: 2420.0000
• Width: 63.0000

Specifications

• Manufacturer: JET
• SKU: JT9-690503
• UPC: 731325451559
• Shipping Method: LTL Freight
• Weight: 2,420 lb
• Dimensions: 66 × 63 × 86 in
• Country of Origin: Taiwan
