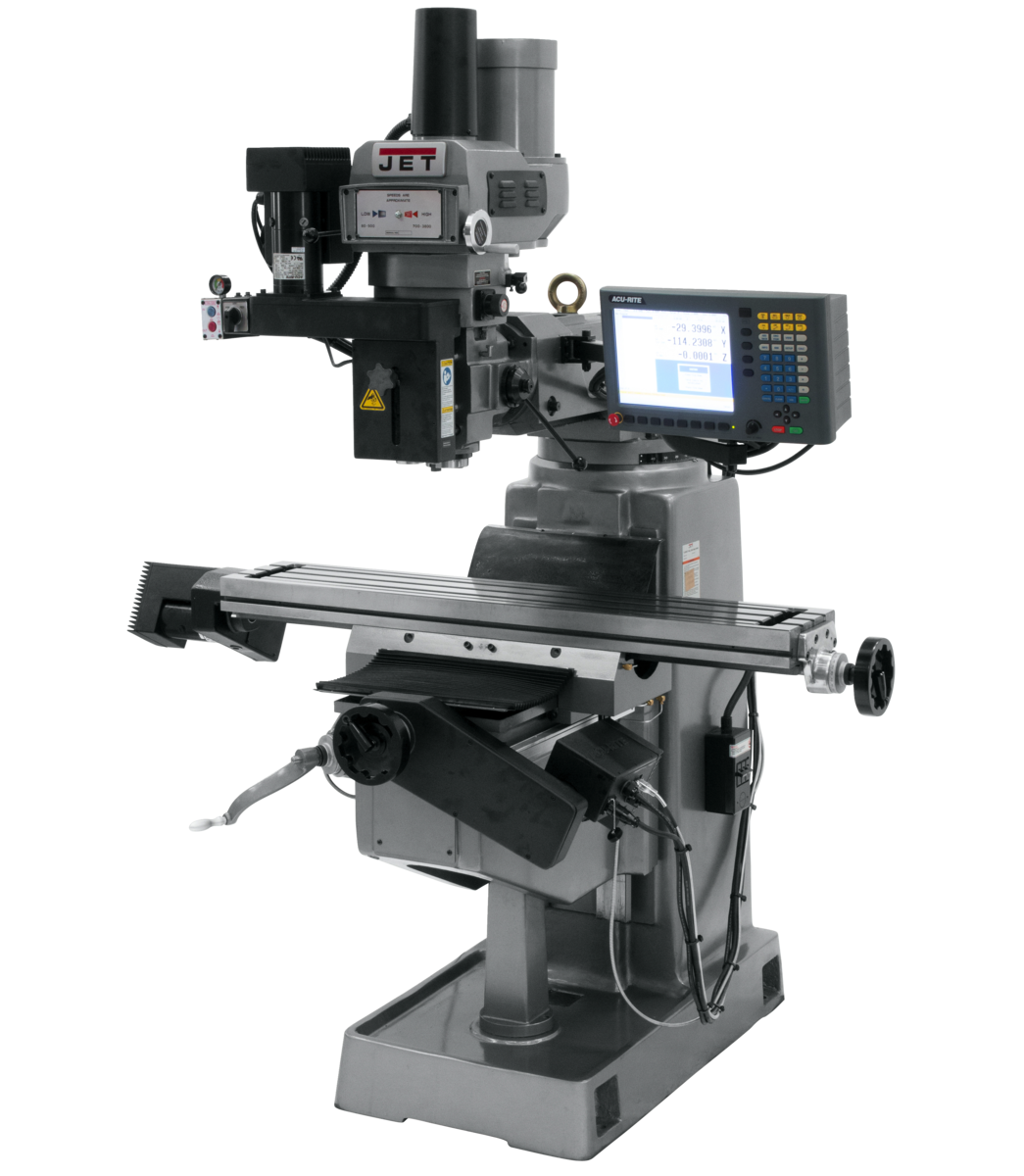

Jet JTM-4VS Mill With 3-Axis ACU-RITE G-2 MILLPWR CNC With Air Powered Draw Bar 690949

Jet JTM-4VS Mill With 3-Axis ACU-RITE G-2 MILLPWR CNC With Air Powered Draw Bar 690949 is a JET product in the Milling Machines collection.

Product Details

• JET offers complete, factory-installed CNC packages with your choice of 2 or 3-axis CNC controls. The Computer Numerical Control system brings the added precision of digital automation to the process, allowing the user greater control and efficiency. Meehanite® casted JET Vertical Mills with CNC packages deliver accurate results every time. All the features you've come to expect backed by the industry-leading JET Two Year Warranty
• Specification: Value
• CNC Package: ACU-RITE MILLPWR® G2
• Spindle Travel (In.): 5
• Style (Type): CNC
• Number of Axis: 3
• Power Draw Bar: Pneumatic
• Table Size (L x W) (In.): 9 x 49
• Weight (Lbs.): 2420
• Spindle Taper (In. x TPI): R-8
• Max Distance Spindle to Table (In.): 17-1/2
• Distance Spindle to Column (Max.) (In.): 19
• Range of Spindle Speeds (RPM): 60 – 4,200
• Quill Diameter (In.): 3-3/8
• Collet Capacity: 1/8 – 7/8
• Quill Down Feed Rates (IPR): .0015 – .003 – .006
• Table Longitudinal Travel (In.): 34
• Table Cross Travel (In.): 12
• T-Slot Centers (In.): 2-1/2
• Work Table Weight Capacity (Lbs.): 660
• Travel of Knee (In.): 14-1/2
• Travel of Ram (In.): 13-3/8
• Motor (HP): 3 HP, 230/460V, 3Ph
• Overall Dimensions (L x W x H) (In.): 66 x 63 x 85
• Height: 0.0000
• Length: 0.0000
• Weight: 2600.0000
• Width: 0.0000

Specifications

• Manufacturer: JET
• SKU: JT9-690949
• UPC: 731325455717
• Shipping Method: LTL Freight
• Weight: 2,600 lb
• Dimensions: 1 × 1 × 1 in
• Country of Origin: Taiwan
