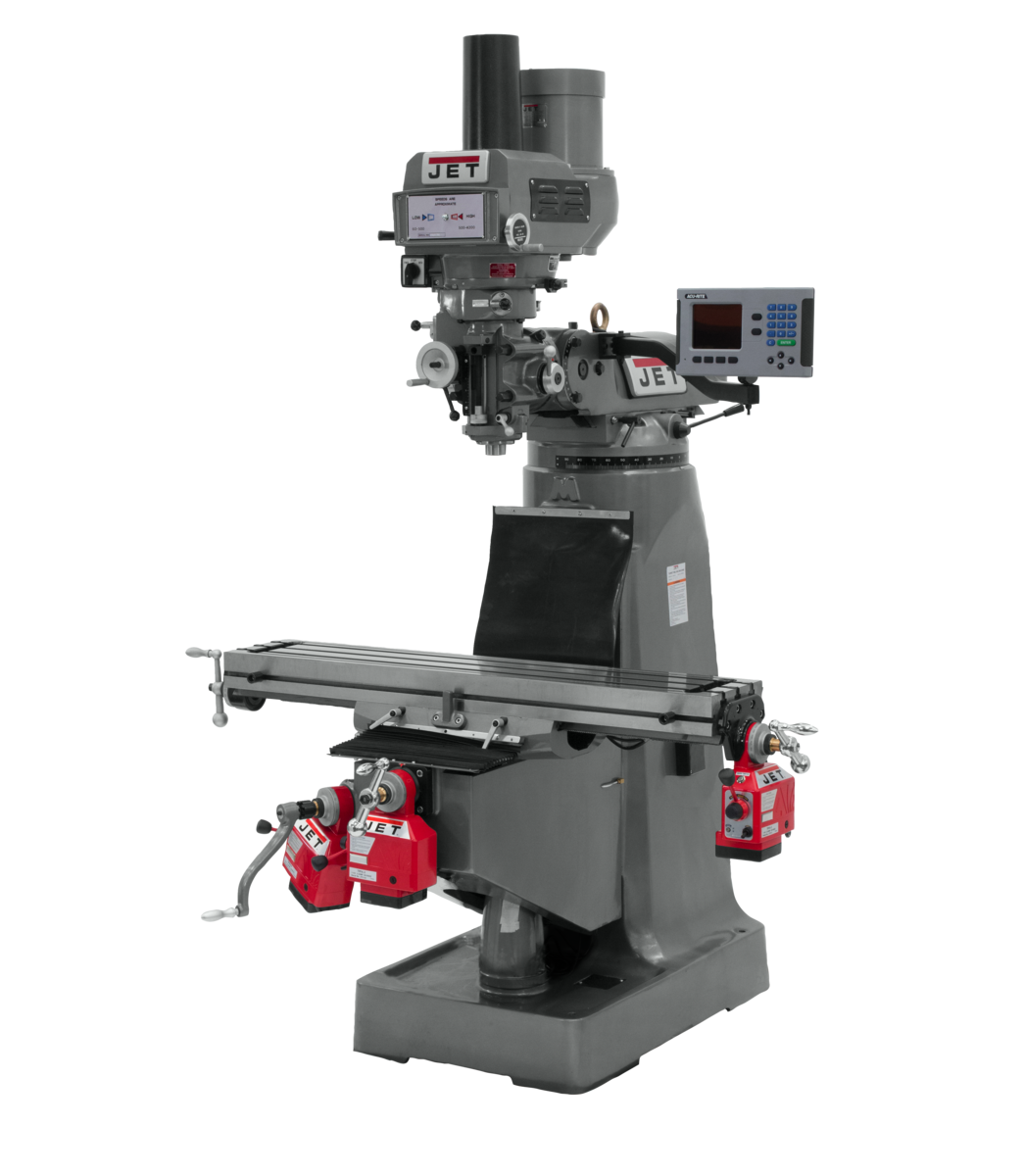

Jet JTM-4VS Mill With 3-Axis ACU-RITE 203 DRO (Knee) With X, Y and Z-Axis Powerfeeds and Power Draw Bar 690430

Jet JTM-4VS Mill With 3-Axis ACU-RITE 203 DRO (Knee) With X, Y and Z-Axis Powerfeeds and Power Draw Bar 690430 is a JET product in the Milling Machines collection.

Product Details

• Adjustable gibs throughout
• Heavy-duty spindle brake
• Heavy-duty splined motor drive
• Internal coolant tank built into casting base for use with coolant system (Coolant pump not included)
• Large Diameter quill is chromed
• Constructed using the Certified Meehanite® casting process, JET Variable Speed Milling Machines provide consistent and reliable operation. Precision bored and honed milling heads ensure quality cuts, and the three-stage power downfeed with automatic stop makes the JET Variable Speed Milling Machines easy to use. Available in single or three phase power configurations, the JET JTM-4VS Series mills are backed by the industry leading Two Year full service and parts Warranty.
• One shot lubrication system
• Precision hardened and ground ways and table
• Spindle head is internally cooled
• Tolerance test sheet included
• Specification: Value
• Powerfeed: X, Y and Z-Axis
• Spindle Travel (In.): 5
• Style (Type): Variable Speed R8
• Number of Axis: 3 (Knee)
• Power Draw Bar: Pneumatic
• Table Size (L x W) (In.): 9 x 49
• Weight (Lbs.): 2420
• Spindle Taper (In. x TPI): R-8
• Max Distance Spindle to Table (In.): 17-1/2
• Distance Spindle to Column (Max.) (In.): 19
• Range of Spindle Speeds (RPM): 60 – 4,200
• Quill Diameter (In.): 3-3/8
• Collet Capacity: 1/8 – 7/8
• Quill Down Feed Rates (IPR): .0015 – .003 – .006
• Table Longitudinal Travel (In.): 34
• Table Longitudinal Travel With Powerfeed (In.): 28-3/4
• Table Cross Travel (In.): 12
• T-Slot Centers (In.): 2-1/2
• Work Table Weight Capacity (Lbs.): 660
• Travel of Knee (In.): 14-1/2
• Travel of Ram (In.): 13-3/8
• Motor (HP): 3 HP, 230/460V, 3Ph
• Overall Dimensions (L x W x H) (In.): 66 x 63 x 85
• Height: 0.0000
• Length: 0.0000
• Weight: 2420.0000
• Width: 0.0000

Specifications

• Manufacturer: JET
• SKU: JT9-690430
• UPC: 731325332902
• Shipping Method: LTL Freight
• Weight: 2,420 lb
• Dimensions: 1 × 1 × 1 in
• Country of Origin: Taiwan
