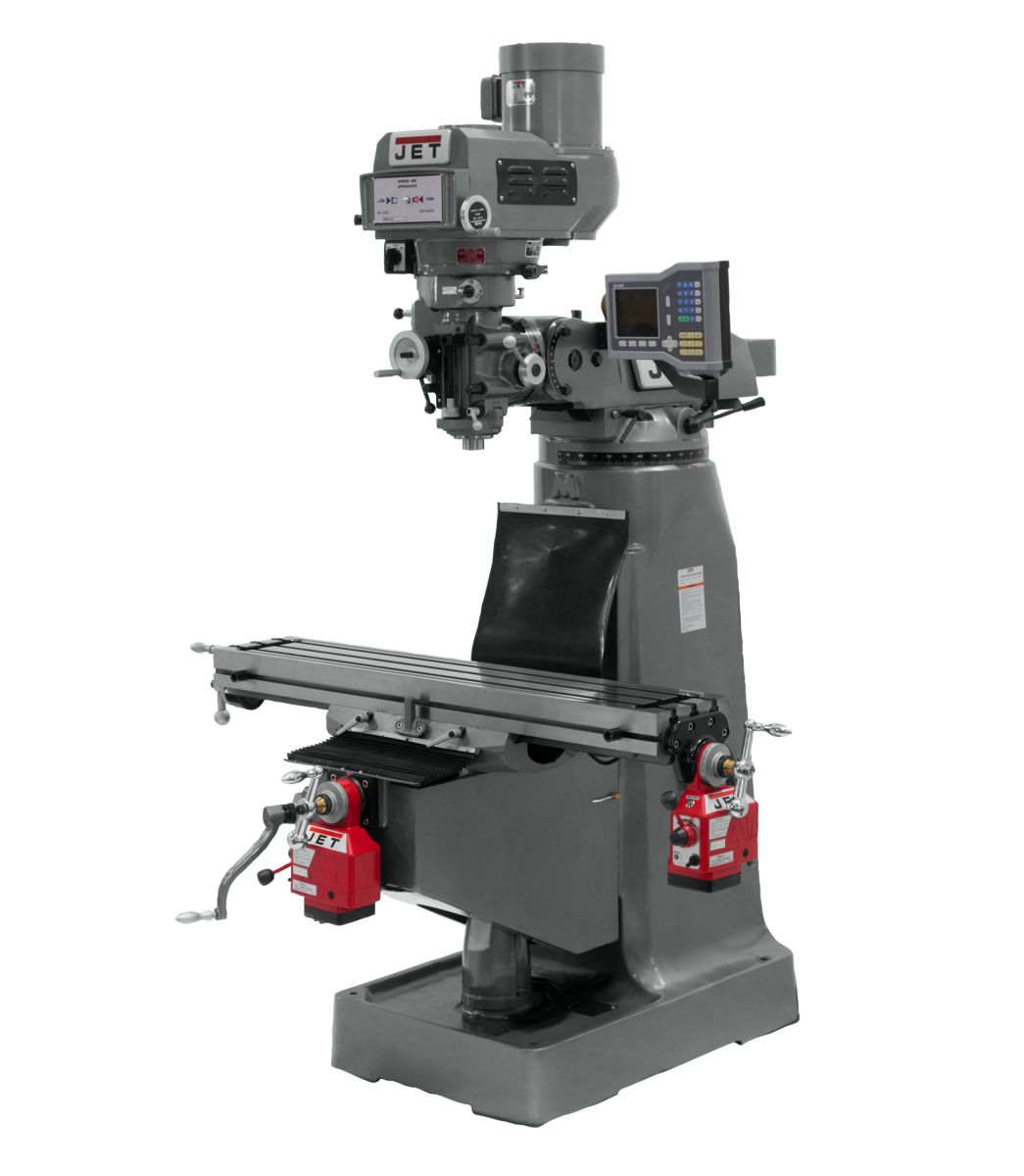

Jet JTM-2 Mill With X and Y-Axis Powerfeeds 690017

Jet JTM-2 Mill With X and Y-Axis Powerfeeds 690017 is a JET product in the Milling Machines collection.

Product Details

• Certified Meehanite® castings
• Heavy duty splined motor drive
• Internal coolant tank built into base for use with coolant system (Coolant pump not included)
• Large Diameter quill is chromed
• One shot lubrication system
• Three-stage power down feed with auto stop, high precision Class 7 spindle bearings and the rugged stability of Meehanite® castings ensures you get everything you need from the JTM-1 and 2 models. The internally cooled spindle head prevents seizing, and JET precision engineering ensures superior results with all the features you've come to expect, all backed by the industry-leading JET Two Year Warranty
• Precision bored and honed milling head
• Precision hardened and ground ways
• Spindle head is internally cooled
• Three stage power downfeed with automatic stop
• Tolerance test sheet included
• Specification: Value
• Powerfeed: X and Y-Axis
• Spindle Travel (In.): 5
• Style (Type): Step Pulley R8
• Number of Spindle Speeds: 8
• Table Size (L x W) (In.): 9 x 42
• Weight (Lbs.): 2200
• Spindle Taper (In. x TPI): R-8
• Max Distance Spindle to Table (In.): 17-1/2
• Distance Spindle to Column (Max.) (In.): 19
• Quill Diameter (In.): 3-3/8
• Range of Spindle Speeds (RPM): 80 – 2,720
• Collet Capacity: 1/8 – 7/8
• Table Longitudinal Travel (In.): 23-7/8
• Quill Down Feed Rates (IPR): .0015 – .003 – .006
• Table Longitudinal Travel With Powerfeed (In.): 20-2/7
• Table Cross Travel (In.): 12-1/2
• T-Slot Centers (In.): 2-1/2
• Work Table Weight Capacity (Lbs.): 550
• Travel of Knee (In.): 14-1/2
• Travel of Ram (In.): 13-3/8
• Motor (HP): 2 HP, 115/230V, 1Ph
• Overall Dimensions (L x W x H) (In.): 57 x 64 x 82
• Height: 82.0000
• Length: 64.0000
• Weight: 2200.0000
• Width: 57.0000

Specifications

• Manufacturer: JET
• SKU: JT9-690017
• UPC: 662755901751
• Shipping Method: LTL Freight
• Weight: 2,200 lb
• Dimensions: 64 × 57 × 82 in
• Country of Origin: Taiwan
