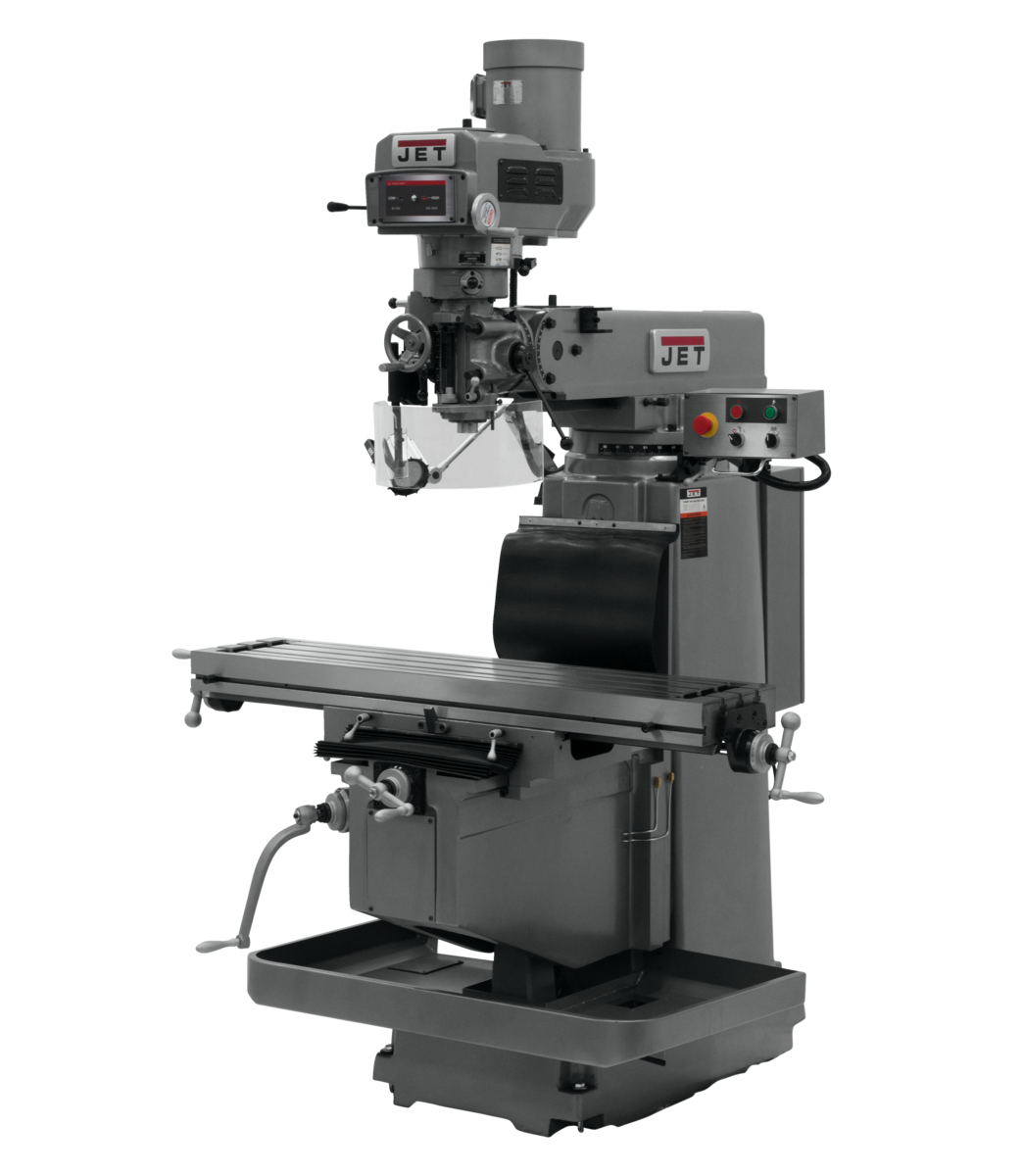

Jet JTM-1254RVS with NEWALL DP700 DRO X,Y&Z Powerfeeds 698130

Jet JTM-1254RVS with NEWALL DP700 DRO X,Y&Z Powerfeeds 698130 is a JET product in the Milling Machines collection.

Product Details

• Adjustable gibs throughout
• Dual locks on all moveable surfaces
• Precision bored and honed milling head
• Precision hardened and ground ways and table
• Spindle Brake for rapid stopping of the spindle
• We combined durability, strength, and precision engineering to create 12” x 54” Variable Speed Vertical Milling Machines that turn out high quality components. Designed for ease of use, JET mills provide ongoing automatic lubrication and quick nut spindle feed, along with the JET exclusive certified Meehanite castings that provide the end-user with an easier solution to leveling the machine without raising it off the floor. These heavy-duty mills are offered in both R-8 and NT-40 Spindles with all the features you've come to expect backed by the industry-leading JET Two Year Warranty. CSA/CUS Certified.
• Three Precision ground t-slots
• Three-stage power downfeed with automatic stop
• Two 115V outlets on electrical box for Powerfeeds only
• Specification: Value
• Spindle Travel (In.): 5
• Style (Type): Variable Speed R8
• Number of Axis: 2
• Table Size (L x W) (In.): 12 x 54
• Weight (Lbs.): 3969
• Spindle Taper (In. x TPI): R-8
• Max Distance Spindle to Table (In.): 23
• Distance Spindle to Column (Max.) (In.): 27-3/4
• Quill Diameter (In.): 4-1/8
• Range of Spindle Speeds (RPM): 80 – 3,800
• Collet Capacity: 1/8 – 1
• Quill Down Feed Rates (IPR): .0015–.003–.008
• Table Longitudinal Travel (In.): 33-7/8
• Table Longitudinal Travel With Powerfeed (In.): 28-1/4
• Table Cross Travel (In.): 15-1/3
• T-Slot Centers (In.): 2-1/2
• Work Table Weight Capacity (Lbs.): 925
• Travel of Knee (In.): 19-1/4
• Travel of Ram (In.): 25
• Saddle Width (In.): 25-5/8
• Column Width (In.): 14-1/4
• Motor (HP): 5HP, 230/460V, 3Ph
• Overall Dimensions (L x W x H) (In.): 92-1/8 x 79-7/8 x 104-1/4
• Height: 104.2500
• Length: 92.1250
• Weight: 3696.0000
• Width: 79.8750

Specifications

• Manufacturer: JET
• SKU: JT9-698130
• UPC: 731325516845
• Shipping Method: LTL Freight
• Weight: 3,696 lb
• Dimensions: 92.13 × 79.88 × 104.25 in
• Country of Origin: Taiwan
