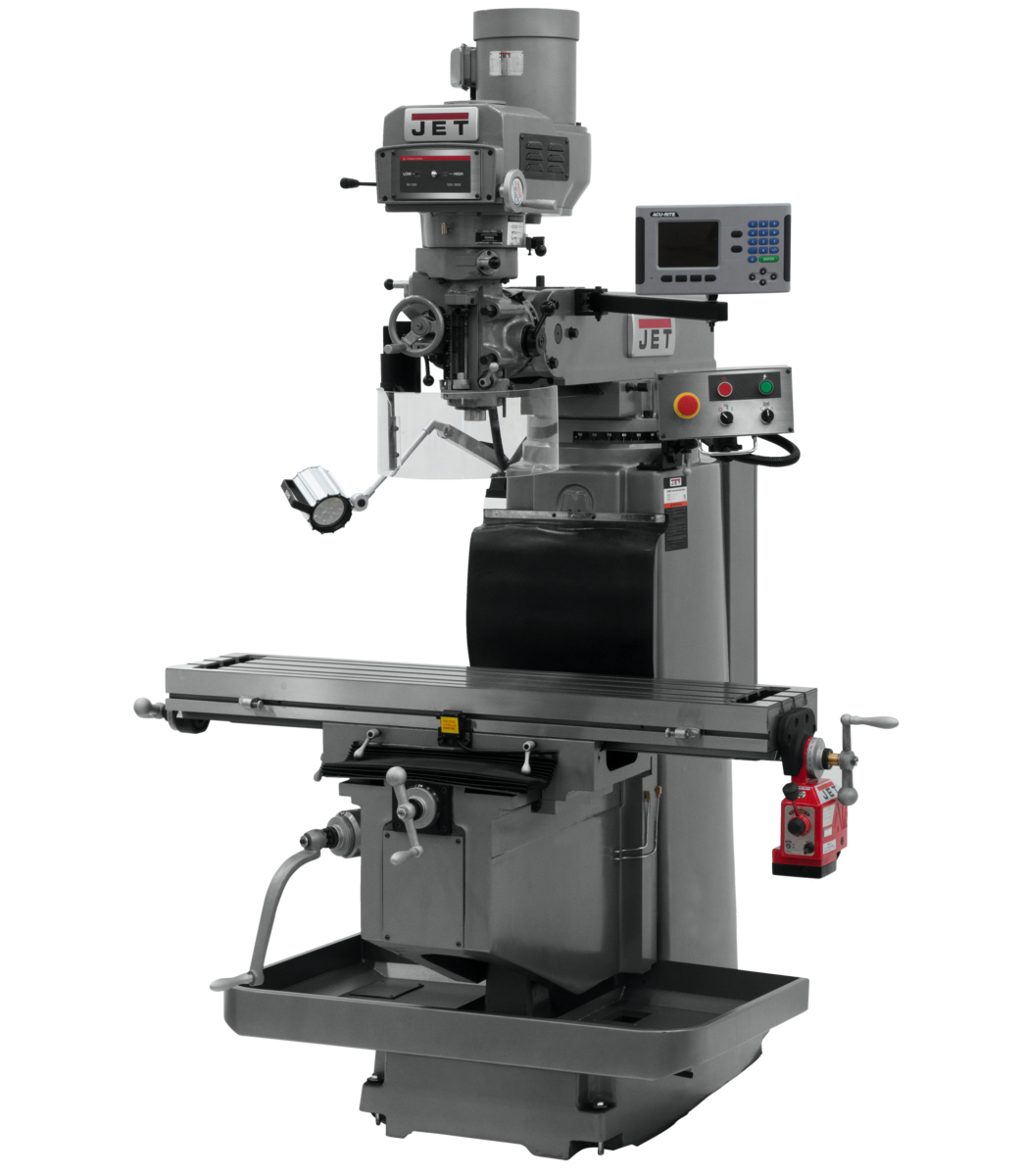

Jet JTM-1254RVS with ACU-RITE 203 DRO, X Powerfeed 698108

Jet JTM-1254RVS with ACU-RITE 203 DRO, X Powerfeed 698108 is a JET product in the Milling Machines collection.

Product Details

• Adjustable gibs throughout
• Dual locks on all moveable surfaces
• Heavy-duty spindle brake
• Precision bored and honed milling head
• Precision hardened and ground ways and table
• The JET JTM-1254RVS and JTM-1254VS combine durability, strength and precision engineering, resulting in 12” x 54” Variable Speed Vertical Milling Machines that turn out high quality components. Designed for ease of use, Jet Mills provide ongoing automatic lubrication every 180 minutes and quick nut spindle feed along with the Certified Meehanite® castings, providing the end-user with an easier solution to leveling the machine without raising it up off the floor. These heavy-duty mills are offered in both R-8 & NT-40 Spindles with all the features you've come to expect backed by the industry-leading JET Two Year Warranty with products CSA/CUS Certified.
• Spindle Brake for rapid stopping of the spindle
• Three Precision ground t-slots
• Three-stage power downfeed with automatic stop
• Two 115V outlets on electrical box for Powerfeeds only
• Specification: Value
• Powerfeed: X-Axis
• Spindle Travel (In.): 5
• Style (Type): Variable Speed R8
• Number of Axis: 2
• Table Size (L x W) (In.): 12 x 54
• Weight (Lbs.): 3969
• Spindle Taper (In. x TPI): R-8
• Max Distance Spindle to Table (In.): 23
• Distance Spindle to Column (Max.) (In.): 27-3/4
• Quill Diameter (In.): 4-1/8
• Range of Spindle Speeds (RPM): 80 – 3,800
• Collet Capacity: 1/8 – 1
• Quill Down Feed Rates (IPR): .0015–.003–.008
• Table Longitudinal Travel (In.): 33-7/8
• Table Longitudinal Travel With Powerfeed (In.): 28-1/4
• Table Cross Travel (In.): 15-1/3
• T-Slot Centers (In.): 2-1/2
• Work Table Weight Capacity (Lbs.): 925
• Travel of Knee (In.): 19-1/4
• Travel of Ram (In.): 25
• Saddle Width (In.): 25-5/8
• Column Width (In.): 14-1/4
• Motor (HP): 5HP, 230/460V, 3Ph
• Overall Dimensions (L x W x H) (In.): 92-1/8 x 79-7/8 x 104-1/4
• Height: 104.2500
• Length: 92.1250
• Weight: 3696.0000
• Width: 79.8750

Specifications

• Manufacturer: JET
• SKU: JT9-698108
• UPC: 731325516623
• Shipping Method: LTL Freight
• Weight: 3,696 lb
• Dimensions: 92.13 × 79.88 × 104.25 in
• Country of Origin: Taiwan
